AZE151R-FHPSKQ (2010)
Toyota Rukus
Production
Mar 2010
-
Dec 2015
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1003- )

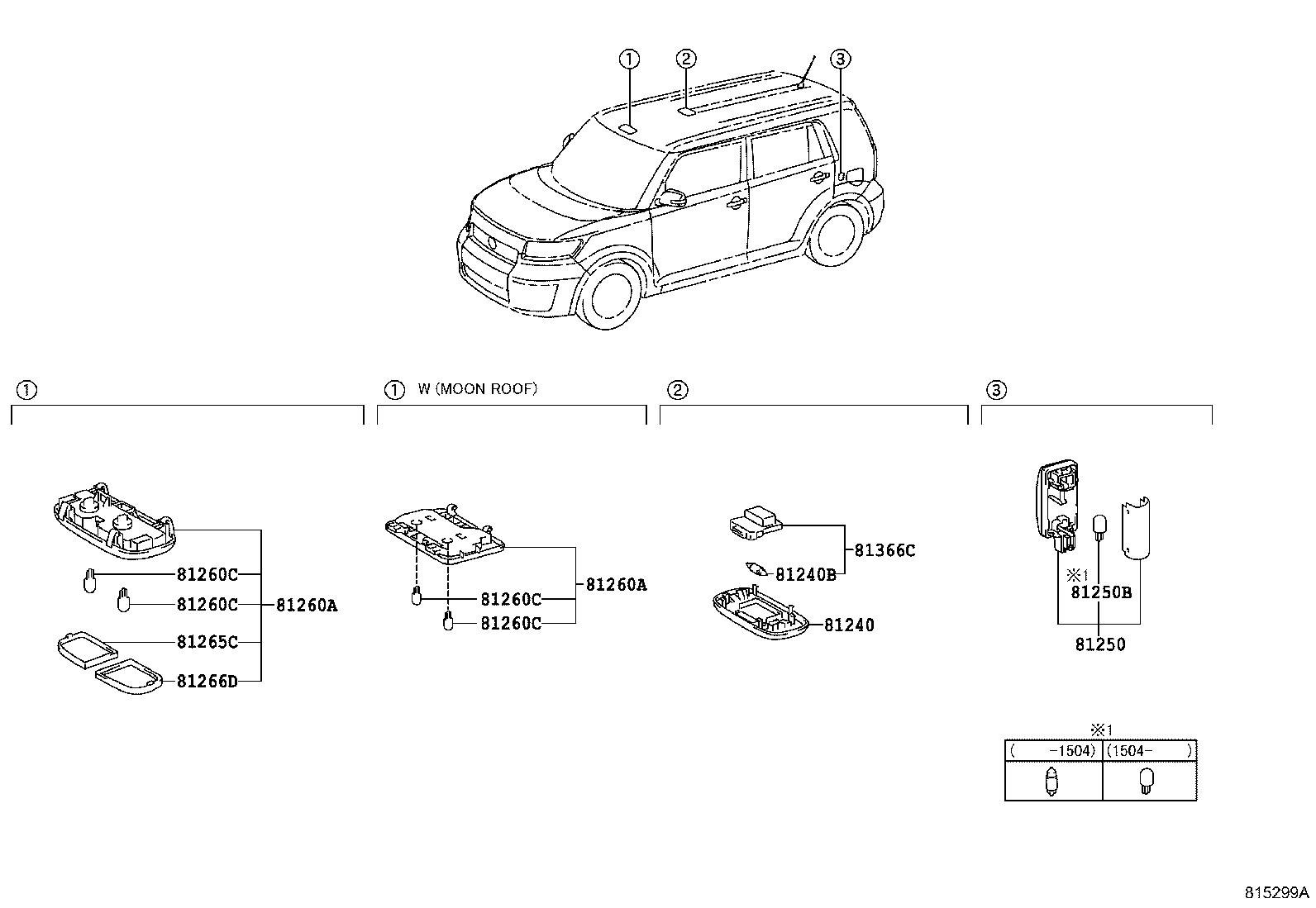

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-52040B1 |
AZE151 LT.GRAY,TRIM1# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
AZE151 12V 8W |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81330-58010 |
AZE151 |
1 | ||
| 81250-48010 |
AZE151 |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
AZE151 12V 5W |
1 | ||
| 99132-12050 |
AZE151 12V 5W |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-52030B1 |
AZE151 LT.GRAY,TRIM1# |
1 | ||
| 81260-12250B0 |
AZE151..S MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 81260-12550B0 |
AZE151..S MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-52030B1 |
AZE151 LT.GRAY,TRIM1# |
1 | ||
| 81260-12250B0 |
AZE151..S MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 81260-12550B0 |
AZE151..S MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
AZE151 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
AZE151 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
AZE151 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
AZE151 12V 8W |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-52020 |
AZE151 |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-52020 |
AZE151 |
1 | ||
| 81366C - BASE, ROOM LAMP SWITCH | ||||
| 81366-68010 |
AZE151 |
1 | ||
