AZE151R-FHPSKQ (2010)

Toyota Rukus

Production Mar 2010 - Dec 2015
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1003- )

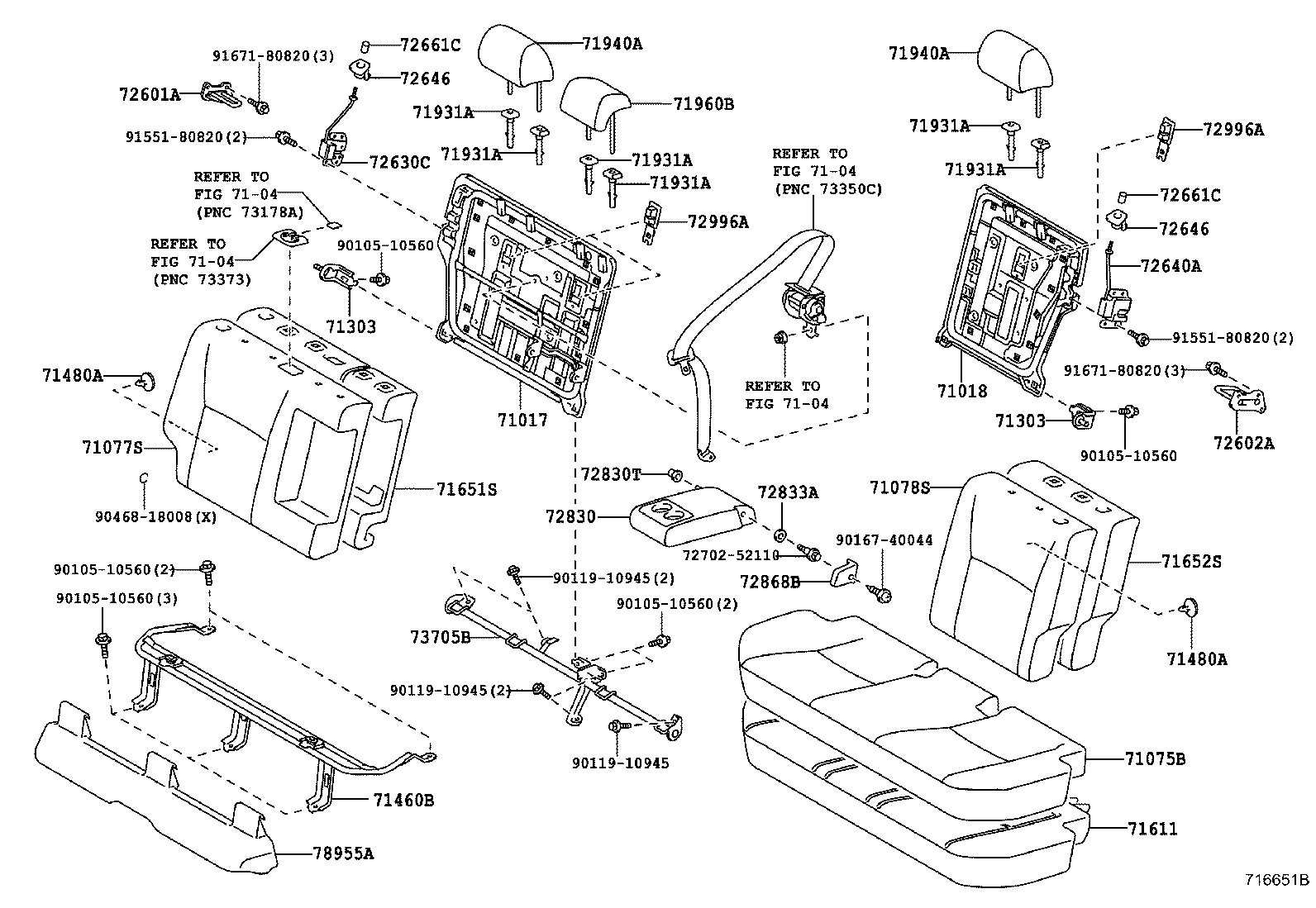

Click highlighted areas on diagram

diagram 71017 71018 7104 7104 7104 7104 71075B 71077S 71078S 71303 71303 71460B 71480A 71480A 71611 71651S 71652S 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72601A 72602A 72630C 72640A 72646 72646 72661C 72661C 7270252110 72830 72830T 72833A 72868B 72996A 72996A 73705B 78955A 9010510560 9010510560 9010510560 9010510560 9010510560 9011910945 9011910945 9011910945 9016740044 9046818008 9155180820 9155180820 9167180820 9167180820
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-12A70

AZE151

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-12440

AZE151

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-12K80C1

AZE151..S

BLACK,TRIM1#

 1
71075-12M50C0

AZE151..S

BLACK,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-12N90C2

AZE151..S

BLACK,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-12M20C0

AZE151..S

BLACK,TRIM1#

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12190

AZE151

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12190

AZE151

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71407-12180B1

AZE151

DK.GRAY,TRIM1#

 1
71480A - CLIP (FOR REAR SEAT BACK)
90467-09050

AZE151

 19
71480A - CLIP (FOR REAR SEAT BACK)
90467-09050

AZE151

 19
71611 - PAD, REAR SEAT CUSHION
71503-12320

AZE151

 1
71503-12270

AZE151

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-12B30

AZE151

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-12A10

AZE151

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-12B50C0

AZE151..S

BLACK,TRIM1#

 2
71940-12B51C0

AZE151..S

BLACK,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-12B50C0

AZE151..S

BLACK,TRIM1#

 2
71940-12B51C0

AZE151..S

BLACK,TRIM1#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-12670C0

AZE151..S

BLACK,TRIM1#

 1
71960-12671C0

AZE151..S

BLACK,TRIM1#

 1
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-12250

AZE151

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72602-12080

AZE151

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-12340

AZE151

 1
72630-12341

AZE151

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-12311

AZE151

 1
72640-12310

AZE151

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-12090B0

AZE151

DK.GRAY,TRIM1#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-12090B0

AZE151

DK.GRAY,TRIM1#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-35010B1

AZE151

DK.GRAY,TRIM1#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-35010B1

AZE151

DK.GRAY,TRIM1#

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-12730B2

AZE151..S

DK.GRAY,TRIM1#

 1
72830T - BUSH (FOR REAR SEAT CENTER ARMREST)
90386-08005

AZE151

 1
72833A - PLATE, SEAT CENTER ARMREST, INNER
72831-52010

AZE151

 1
72868B - COVER, CENTER ARMREST HINGE
72868-12040B0

AZE151

DK.GRAY,TRIM1#

 1
72996A - COVER, REAR SEAT BACK
72996-12320B0

AZE151

DK.GRAY,TRIM1#

 3
72996A - COVER, REAR SEAT BACK
72996-12320B0

AZE151

DK.GRAY,TRIM1#

 3
73705B - BRACKET SUB-ASSY, CROSS ANCHOR
73705-12120

AZE151

 1
78955A - COVER, REAR SEAT UNDER TRAY
78955-12040B0

AZE151

DK.GRAY,TRIM1#

 1
Common parts
72702-52110
90105-10560
90119-10945
90167-40044
90468-18008
91551-80820
91671-80820
Linked diagrams
7104
