AZE151R-FHPSKQ (2010)
Toyota Rukus
Production
Mar 2010
-
Dec 2015
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1003- )

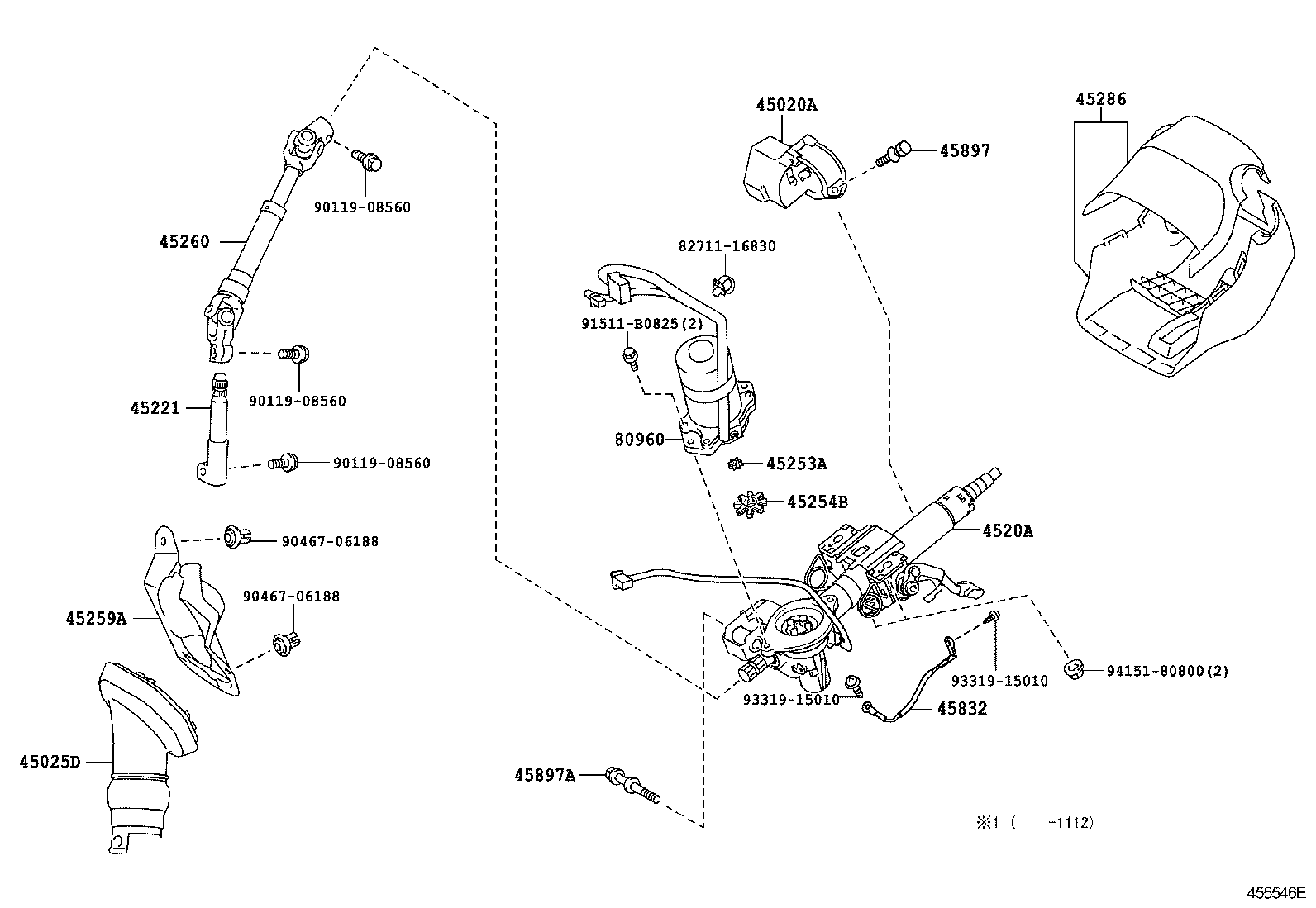

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-42150 |
AZE151 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12280 |
AZE151 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-12010 |
AZE151 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12330 |
AZE151 |
1 | ||
| 45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45253-28130 |
AZE151 |
1 | ||
| 45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45254-28040 |
AZE151 |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-12120 |
AZE151 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12630 |
AZE151 |
1 | ||
| 45260-76010 |
AZE151 |
1 | ||
| 45260-12630 |
AZE151 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12993B0 |
AZE151 DK.GRAY,TRIM1# |
1 | ||
| 45832 - CABLE, TILT STEERING SUPPORT BOND | ||||
| 45832-21010 |
AZE151 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AZE151 |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
AZE151 |
1 | ||
| 90119-10981 |
AZE151 |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-12150 |
AZE151 |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91511-B0825 | ||||
| 93319-15010 | ||||
| 94151-80800 | ||||
