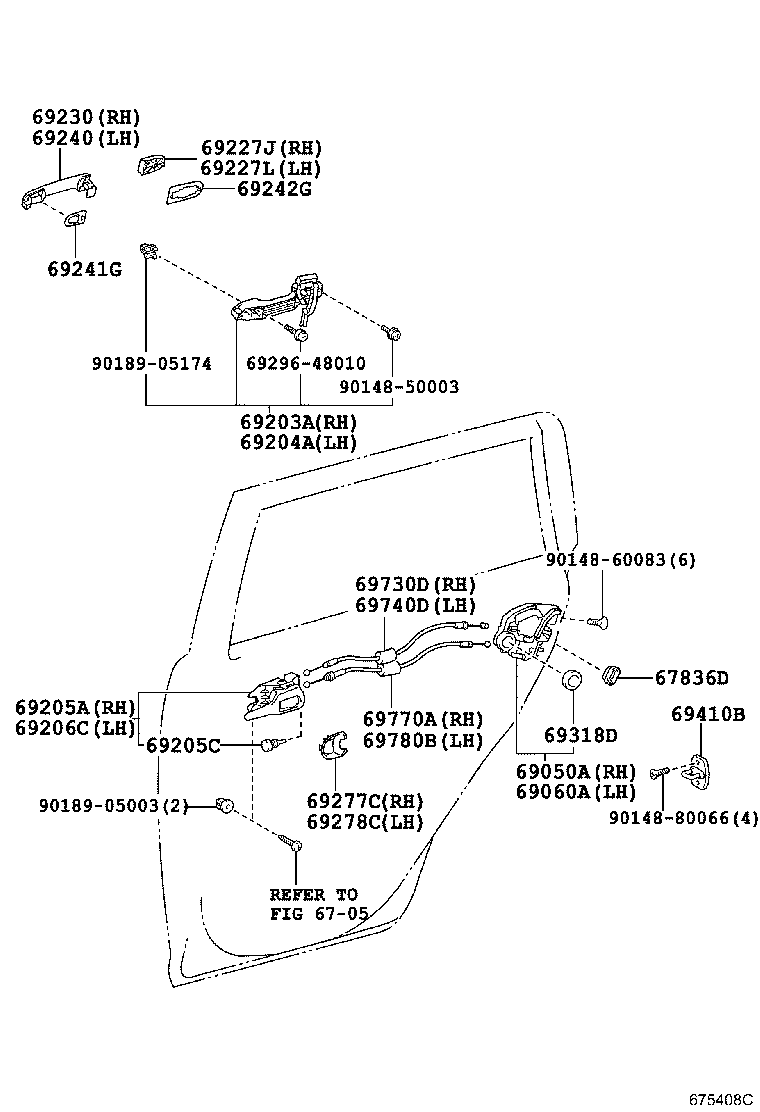

Toyota Rukus AZE151 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040	AZE151	03/2010 - 06/2014	2
67836-33030	AZE151	07/2014 - 12/2015	2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-42021	AZE151	03/2010 - 12/2999	1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-42021	AZE151	03/2010 - 12/2999	1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-12160	AZE151	03/2010 - 12/2999	1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-12170	AZE151	03/2010 - 12/2999	1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-12220B6	AZE151 ORNAMENT SILVER,TRIM1#	03/2010 - 12/2015	1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027	AZE151	03/2010 - 12/2999	2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-12220B6	AZE151 ORNAMENT SILVER,TRIM1#	03/2010 - 12/2015	1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-42070V7	AZE151..N LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6	01/2011 - 03/2011	1
69227-42070K5	AZE151 DK.VIOLET M.M.,9AF	03/2010 - 01/2013	1
69227-42070C2	AZE151 BLACK MC.,209	03/2010 - 12/2015	1
69227-42070R7	AZE151 BLUE ME.,8T4	03/2010 - 01/2013	1
69227-42070A3	AZE151 SUPER WHITE 2,040	03/2010 - 12/2015	1
69227-42070X0	AZE151 SUPER RED 5,3P0	01/2013 - 12/2015	1
69227-42070V6	AZE151 COOL SODA ME.,8V7	03/2010 - 12/2015	1
69227-42070R8	AZE151 DK.BLUE MC.,8S6	03/2010 - 12/2015	1
69227-42070M2	AZE151 ARMY ROCK ME.,4V0	03/2010 - 12/2015	1
69227-42070P6	AZE151 SILVER ME.,1F7	03/2010 - 12/2015	1
69227-42070Y2	AZE151 BLACKISH RED MC.,3R0	03/2010 - 12/2015	1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-42070K5	AZE151 DK.VIOLET M.M.,9AF	03/2010 - 01/2013	1
69227-42070R7	AZE151 BLUE ME.,8T4	03/2010 - 01/2013	1
69227-42070A3	AZE151 SUPER WHITE 2,040	03/2010 - 12/2015	1
69227-42070Y2	AZE151 BLACKISH RED MC.,3R0	03/2010 - 12/2015	1
69227-42070R8	AZE151 DK.BLUE MC.,8S6	03/2010 - 12/2015	1
69227-42070P6	AZE151 SILVER ME.,1F7	03/2010 - 12/2015	1
69227-42070V6	AZE151 COOL SODA ME.,8V7	03/2010 - 12/2015	1
69227-42070V7	AZE151..N LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6	01/2011 - 03/2011	1
69227-42070M2	AZE151 ARMY ROCK ME.,4V0	03/2010 - 12/2015	1
69227-42070X0	AZE151 SUPER RED 5,3P0	01/2013 - 12/2015	1
69227-42070C2	AZE151 BLACK MC.,209	03/2010 - 12/2015	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-12220C2	AZE151 BLACK MC.,209	03/2010 - 12/2015	1
69211-12220V7	AZE151..N LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6	01/2011 - 03/2011	1
69211-12220A0	AZE151 SUPER WHITE 2,040	03/2010 - 12/2015	1
69211-12220R7	AZE151 BLUE ME.,8T4	03/2010 - 01/2013	1
69211-12220M2	AZE151 ARMY ROCK ME.,4V0	03/2010 - 12/2015	1
69211-12220P6	AZE151 SILVER ME.,1F7	03/2010 - 12/2015	1
69211-12220K5	AZE151 DK.VIOLET M.M.,9AF	03/2010 - 01/2013	1
69211-12220X0	AZE151 SUPER RED 5,3P0	01/2013 - 12/2015	1
69211-12220V5	AZE151 COOL SODA ME.,8V7	03/2010 - 12/2015	1
69211-12220Y2	AZE151 BLACKISH RED MC.,3R0	03/2010 - 12/2015	1
69211-12220R8	AZE151 DK.BLUE MC.,8S6	03/2010 - 12/2015	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-12220R7	AZE151 BLUE ME.,8T4	03/2010 - 01/2013	1
69211-12220K5	AZE151 DK.VIOLET M.M.,9AF	03/2010 - 01/2013	1
69211-12220Y2	AZE151 BLACKISH RED MC.,3R0	03/2010 - 12/2015	1
69211-12220A0	AZE151 SUPER WHITE 2,040	03/2010 - 12/2015	1
69211-12220V5	AZE151 COOL SODA ME.,8V7	03/2010 - 12/2015	1
69211-12220M2	AZE151 ARMY ROCK ME.,4V0	03/2010 - 12/2015	1
69211-12220C2	AZE151 BLACK MC.,209	03/2010 - 12/2015	1
69211-12220P6	AZE151 SILVER ME.,1F7	03/2010 - 12/2015	1
69211-12220V7	AZE151..N LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6	01/2011 - 03/2011	1
69211-12220X0	AZE151 SUPER RED 5,3P0	01/2013 - 12/2015	1
69211-12220R8	AZE151 DK.BLUE MC.,8S6	03/2010 - 12/2015	1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-48020	AZE151	03/2010 - 12/2999	2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-52020	AZE151	03/2010 - 12/2999	2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69297-12020B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69298-12020B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010	AZE151	03/2010 - 12/2999	2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010	AZE151	03/2010 - 12/2999	2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-12130	AZE151	03/2010 - 12/2999	1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-12130	AZE151	03/2010 - 12/2999	1
69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH
69770-12240	AZE151	03/2010 - 12/2999	1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-12240	AZE151	03/2010 - 12/2999	1
Common parts
69296-48010
90148-50003
90148-60083
90148-80066
90189-05003
90189-05174
Linked diagrams
6705

AZE151R-FHPNKQ (2010)

(1003- )
