AZE151R-FHPNKQ (2010)
Toyota Rukus
Production
Mar 2010
-
Dec 2015
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1003- )

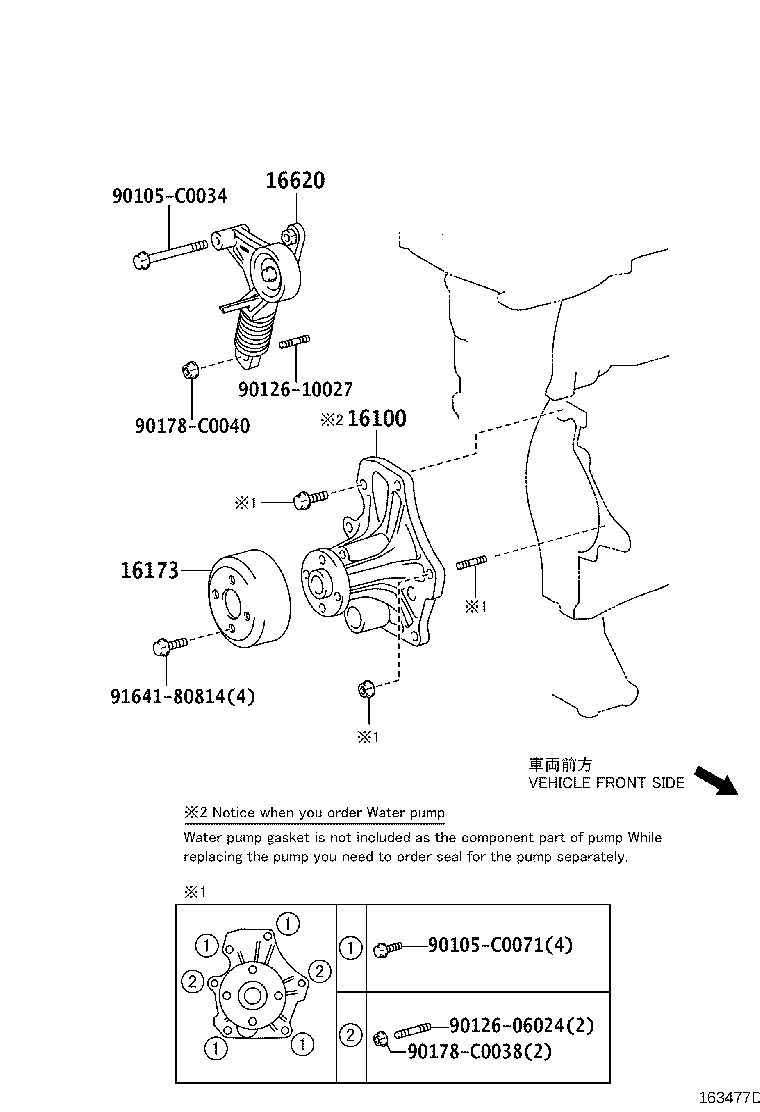

Click highlighted areas on diagram
*194
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-28041 |
2AZFE..AZE151 2AZ-FE,*195 |
1 | ||
| 16100-0H040 |
2AZFE..AZE151 *194 |
1 | ||
| 16173 - PULLEY, WATER PUMP | ||||
| 16173-0H040 |
2AZFE..AZE151 *194 |
1 | ||
| 16173-28020 |
2AZFE..AZE151 2AZ-FE,*195 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0H020 |
2AZFE..AZE151 *194 |
1 | ||
| 16620-0H021 |
2AZFE..AZE151 *194 |
1 | ||
| 16620-0H021 |
2AZFE..AZE151 2AZ-FE,*195 |
1 | ||
| 16620-0H020 |
2AZFE..AZE151 2AZ-FE,*195 |
1 | ||
| Common parts | ||||
| 90105-C0034 | ||||
| 90105-C0071 | ||||
| 90126-06024 | ||||
| 90126-10027 | ||||
| 90178-C0038 | ||||
| 90178-C0040 | ||||
| 91641-80814 | ||||
(1011- )

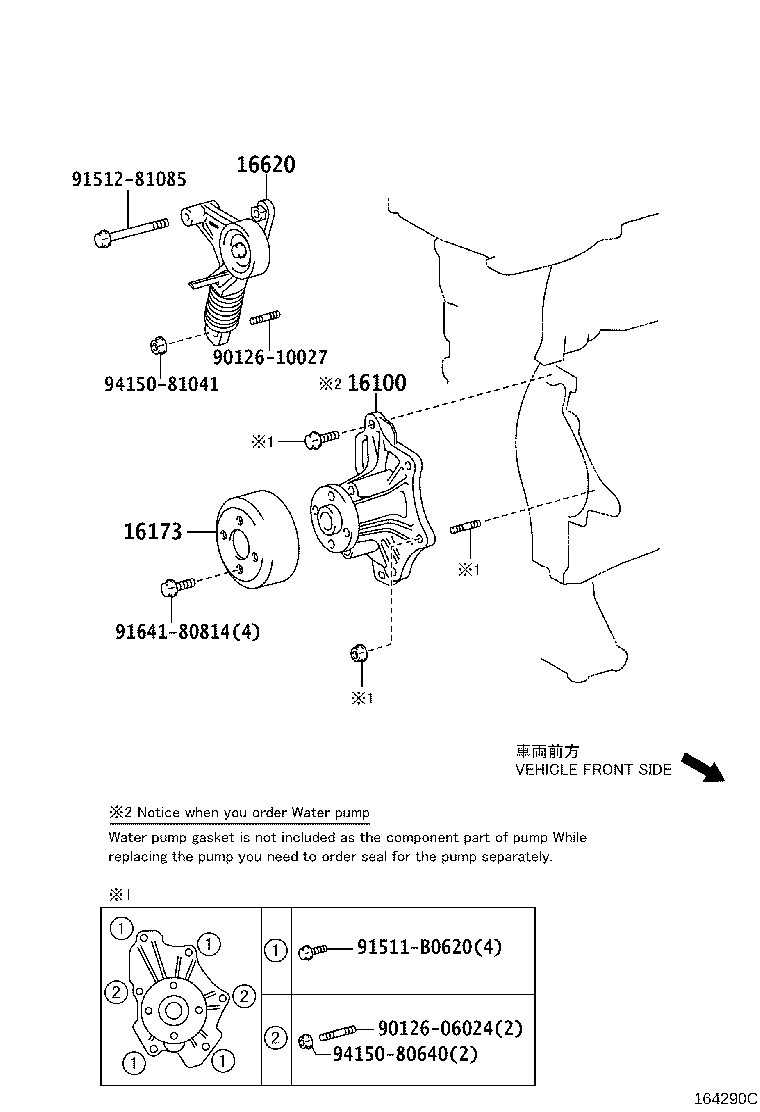

Click highlighted areas on diagram
*195
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-28041 |
2AZFE..AZE151 2AZ-FE,*195 |
1 | ||
| 16100-0H040 |
2AZFE..AZE151 *194 |
1 | ||
| 16173 - PULLEY, WATER PUMP | ||||
| 16173-0H040 |
2AZFE..AZE151 *194 |
1 | ||
| 16173-28020 |
2AZFE..AZE151 2AZ-FE,*195 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0H020 |
2AZFE..AZE151 *194 |
1 | ||
| 16620-0H021 |
2AZFE..AZE151 *194 |
1 | ||
| 16620-0H021 |
2AZFE..AZE151 2AZ-FE,*195 |
1 | ||
| 16620-0H020 |
2AZFE..AZE151 2AZ-FE,*195 |
1 | ||
| Common parts | ||||
| 90126-06024 | ||||
| 90126-10027 | ||||
| 91511-B0620 | ||||
| 91512-81085 | ||||
| 91641-80814 | ||||
| 94150-80640 | ||||
| 94150-81041 | ||||
