GRX132L-AETZKC (2010)

Toyota Reiz

Production Sep 2010 - Sep 2013
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1009- )

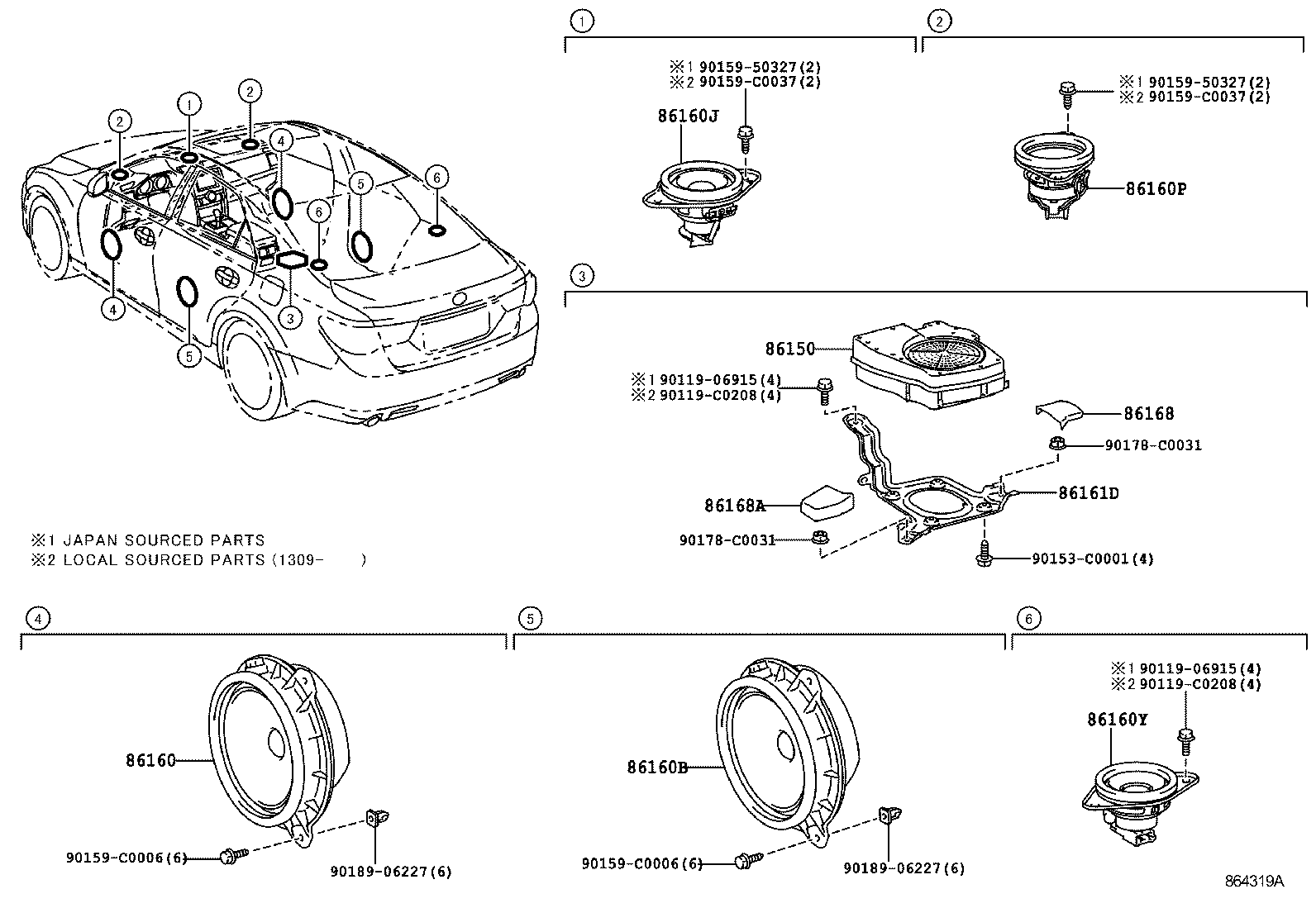

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160J 86160P 86160Y 86161D 86168 86168A 9011906915 9011906915 90119C0208 90119C0208 90153C0001 9015950327 9015950327 90159C0006 90159C0006 90159C0037 90159C0037 90178C0031 90178C0031 9018906227 9018906227
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-22050

GRX132..25S

WITH(*MR&*NS)

 1
86150-22050

GRX132..25S

SPORT & WITH(*MR&*NS)

 1
86150-22050

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
86150-22050

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-0P110

GRX132..25S

SPORT & WITH(*MR&*NS)

 2
86160-0P110

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 2
86160-0P110

GRX132..25S

WITH(*MR&*NS)

 2
86160-0P040

GRX13#

 2
86160-0P110

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 2
86160B - SPEAKER ASSY, REAR
86160-0P110

GRX132..25S

WITH(*MR&*NS)

 2
86160-0P040

GRX13#

 2
86160-0P110

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 2
86160-0P110

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 2
86160-0P110

GRX132..25S

SPORT & WITH(*MR&*NS)

 2
86160J - SPEAKER ASSY, FRONT NO.3
86160-0P130

GRX132..25S

WITH(*MR&*NS)

 1
86160-0P130

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
86160-0P130

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
86160-0P130

GRX132..25S

SPORT & WITH(*MR&*NS)

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0P120

GRX132..25S

WITH(*MR&*NS)

 2
86160-0P100

GRX13#

 2
86160-0P120

GRX132..25S

SPORT & WITH(*MR&*NS)

 2
86160-0P120

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 2
86160-0P120

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 2
86160Y - SPEAKER ASSY, REAR NO.2
86160-0P120

GRX132..25S

WITH(*MR&*NS)

 2
86160-0P120

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 2
86160-0P120

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 2
86160-0P120

GRX132..25S

SPORT & WITH(*MR&*NS)

 2
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-22020

GRX132..25S

WITH(*MR&*NS)

 1
86161-22020

GRX132..25S

SPORT & WITH(*MR&*NS)

 1
86161-22020

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
86161-22020

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
86168 - COVER, SPEAKER MOUNTING
86168-0P010C0

GRX132..25S

SPORT & WITH(*MR&*NS),BLACK,TRIM2#

 1
86168-0P010A1

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SHELL,TRIM0#

 1
86168-0P010C0

GRX132..25S

WITH(*MR&*NS),BLACK,TRIM2#

 1
86168-0P010A1

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SHELL,TRIM0#

 1
86168-0P010A1

GRX132..25S

WITH(*MR&*NS),SHELL,TRIM0#

 1
86168-0P010C0

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,TRIM2#

 1
86168-0P010C0

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,TRIM2#

 1
86168-0P010A1

GRX132..25S

SPORT & WITH(*MR&*NS),SHELL,TRIM0#

 1
86168A - COVER, SPEAKER MOUNTING, NO.2
86168-0P020A1

GRX132..25S

WITH(*MR&*NS),SHELL,TRIM0#

 1
86168-0P020A1

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SHELL,TRIM0#

 1
86168-0P020C0

GRX132..25S

WITH(*MR&*NS),BLACK,TRIM2#

 1
86168-0P020A1

GRX132..25S

SPORT & WITH(*MR&*NS),SHELL,TRIM0#

 1
86168-0P020C0

GRX132..25S

SPORT & WITH(*MR&*NS),BLACK,TRIM2#

 1
86168-0P020A1

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SHELL,TRIM0#

 1
86168-0P020C0

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,TRIM2#

 1
86168-0P020C0

GRX13#..25S,25V

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,TRIM2#

 1
Common parts
90119-06915
90119-C0208
90153-C0001
90159-50327
90159-C0006
90159-C0037
90178-C0031
90189-06227
