GRX132L-AETZKC (2010)

Toyota Reiz

Production Sep 2010 - Sep 2013
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1009- )25S,25V

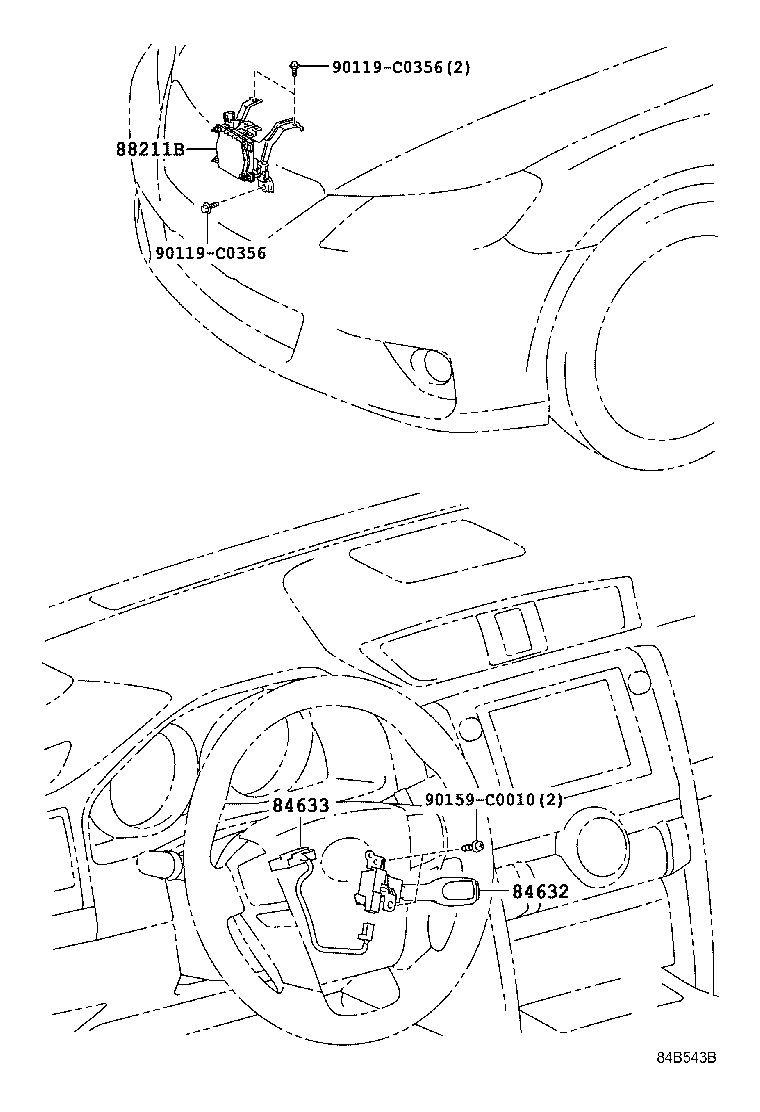

Click highlighted areas on diagram

diagram 84632 84633 88211B 90119C0356 90119C0356 90159C0010
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-58011

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
84632-34011

GRX132..25S

12/03PACKAGE

 1
84632-58011

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48010

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
84633-48010

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
84633-48020

GRX132..25S

12/03PACKAGE

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-22041

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
88210-22041

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
88210-22040

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
88210-22040

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
Common parts
90119-C0356
90159-C0010
