GRX132L-AETZKC (2010)

Toyota Reiz

Production Sep 2010 - Sep 2013
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1009-1309)

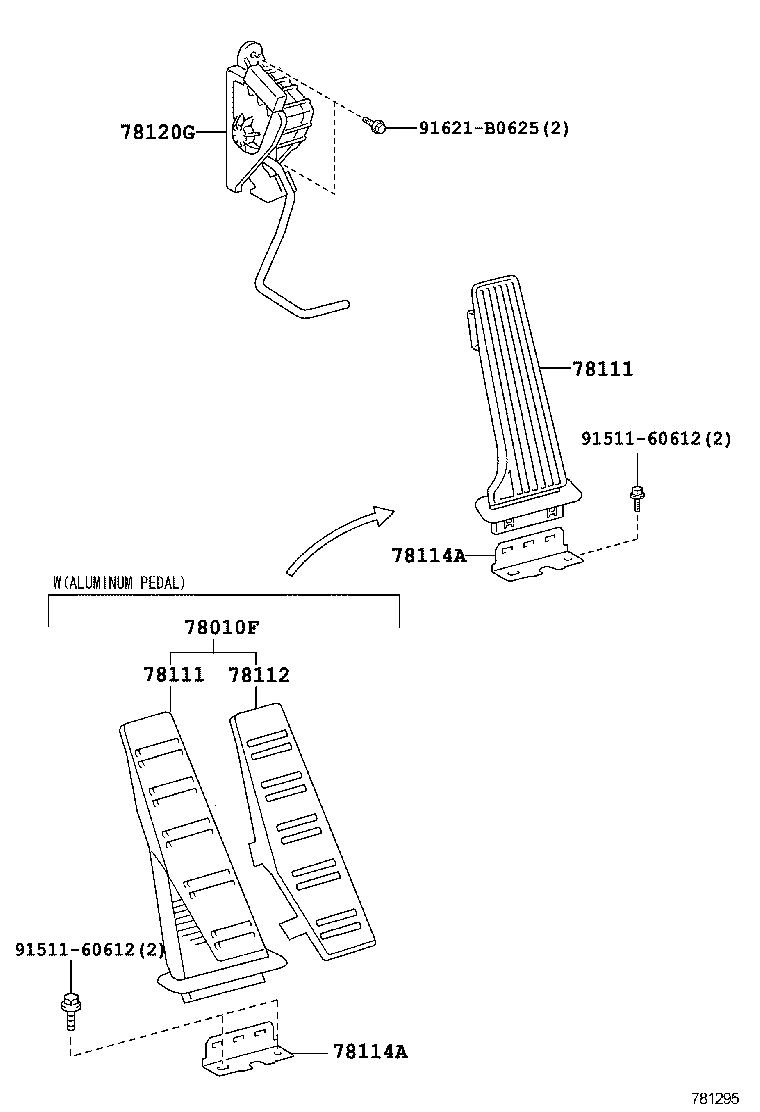

Click highlighted areas on diagram

diagram 78010F 78111 78111 78112 78114A 78114A 78120G 9151160612 9151160612 91621B0625
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78101-0P010

GRX132..25S

SPORT & WITH(*MR)

 1
78101-22040

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
78101-22040

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
78101-0P010

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
78101-0P010

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
78101-22040

GRX132..25S

SPORT & WITH(*MR&*NS)

 1
78101-22040

GRX132..25S

SPORT & WITH(*MR)

 1
78101-0P010

GRX132..25S

SPORT & WITH(*MR&*NS)

 1
78111 - PEDAL, ACCELERATOR
78111-30130

GRX132

 1
78111-22050

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
78111-22050

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
78111-0P010

GRX132

 1
78111-22050

GRX132..25S

SPORT & WITH(*MR)

 1
78111-22050

GRX132..25S

SPORT & WITH(*MR&*NS)

 1
78111 - PEDAL, ACCELERATOR
78111-30130

GRX132

 1
78111-22050

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
78111-22050

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
78111-0P010

GRX132

 1
78111-22050

GRX132..25S

SPORT & WITH(*MR)

 1
78111-22050

GRX132..25S

SPORT & WITH(*MR&*NS)

 1
78112 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78112-22050

GRX132..25S

SPORT & WITH(*MR)

 1
78112-22050

GRX132..25S

SPORT & WITH(*MR&*NS)

 1
78112-22050

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

 1
78112-22050

GRX132..25S

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78108-30130

GRX13#

 1
78108-0P010

GRX13#

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78108-30130

GRX13#

 1
78108-0P010

GRX13#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30A10

GRX13#

 1
Common parts
91511-60612
91621-B0625
