GRX132L-AETZKC (2010)

Toyota Reiz

Production Sep 2010 - Sep 2013
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1009- )

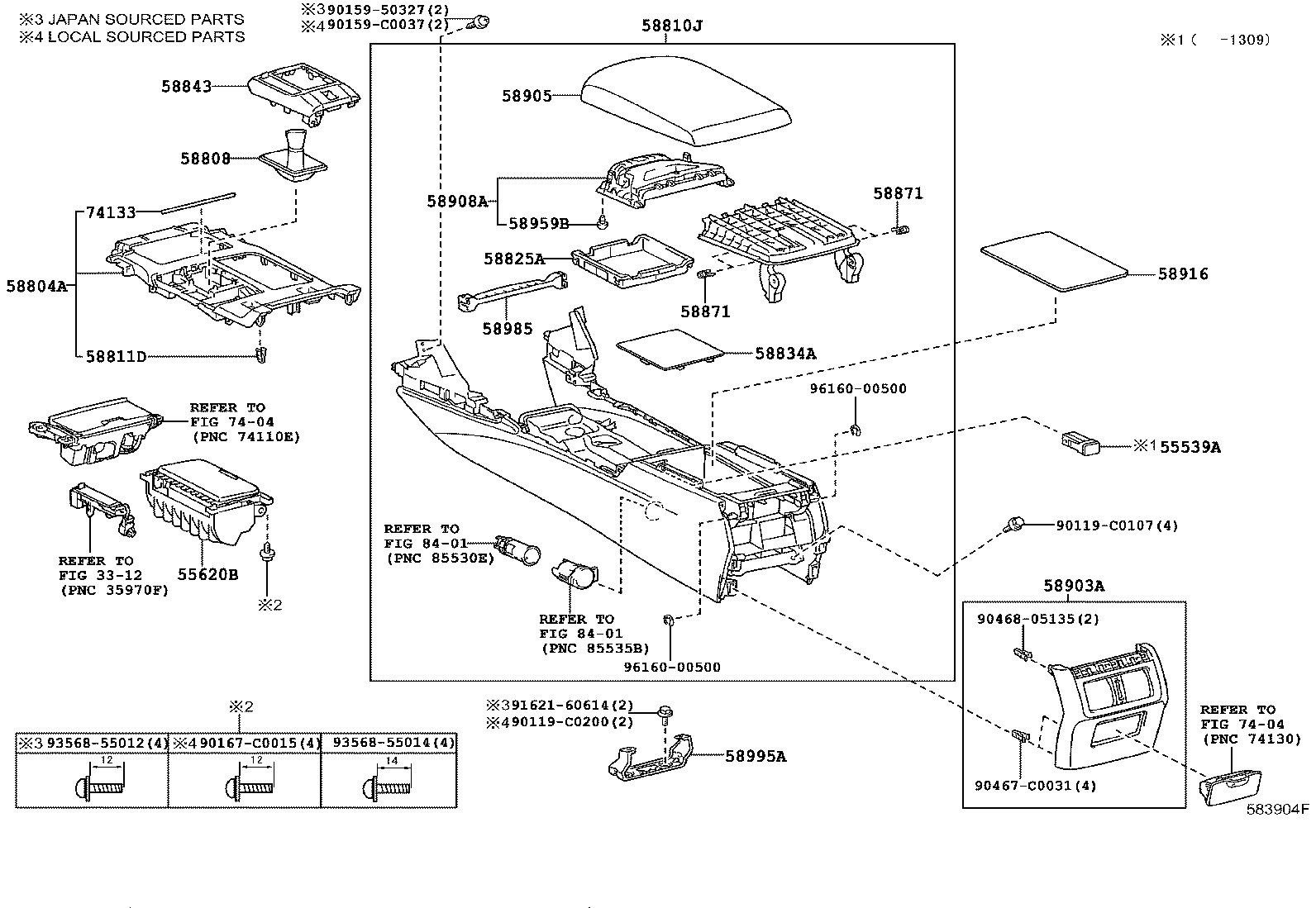

Click highlighted areas on diagram

diagram 3312 55539A 55620B 58804A 58808 58810J 58811D 58825A 58834A 58843 58871 58871 58903A 58905 58908A 58916 58959B 58985 58995A 7404 7404 74133 8401 8401 90119C0107 90119C0200 9015950327 90159C0037 90167C0015 90467C0031 9046805135 9162160614 9356855012 9356855014 9616000500 9616000500
Part # Description Qty Price
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-0N040B0

GRX13#

GRAY,TRIM2#

 1
55620-0N040E2

GRX13#

BROWN,TRIM0#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-0P040B0

GRX13#..25S,25V

GRAY,TRIM2#

 1
58804-0P040E0

GRX13#..25S,25V

BROWN,TRIM0#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-22160C0

GRX13#..25S,25V

BLACK,TRIM0#,2#

 1
58810J - BOX ASSY, CONSOLE
58810-0P040C0

GRX13#..25S,25V

BLACK,TRIM2#

 1
58810-0P040A0

GRX13#..25S,25V

SHELL,TRIM0#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-10203

GRX13#

 4
58825A - POCKET, CONSOLE BOX
58825-0P020

GRX13#

 1
58834A - COVER, CONSOLE, LOWER
58834-0P010

GRX13#

 1
58843 - BEZEL, SHIFTING HOLE
58843-0P020

GRX13#

 1
58871 - CUSHION, CONSOLE BOX
58871-0N010

GRX13#

 4
58871 - CUSHION, CONSOLE BOX
58871-0N010

GRX13#

 4
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-0P020C1

GRX13#

BLACK,TRIM2#

 1
58903-0P020A1

GRX13#

SHELL,TRIM0#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-0P040C0

GRX13#..25S,25V

BLACK,TRIM2#

 1
58905-0P040A0

GRX13#..25S,25V

SHELL,TRIM0#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-0P020

GRX13#

 1
58916 - MAT, BOX BOTTOM
58916-0P020

GRX13#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

GRX13#

 2
58985 - RETAINER, CONSOLE BOX
58985-0P020

GRX13#..25S,25V

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-22060

GRX13#

 1
74133 - SEAL, FRONT ASH RECEPTACLE
74133-30140

GRX13#

 1
Common parts
90119-C0107
90119-C0200
90159-50327
90159-C0037
90167-C0015
90467-C0031
90468-05135
91621-60614
93568-55012
93568-55014
96160-00500
Linked diagrams
3312
7404
8401
