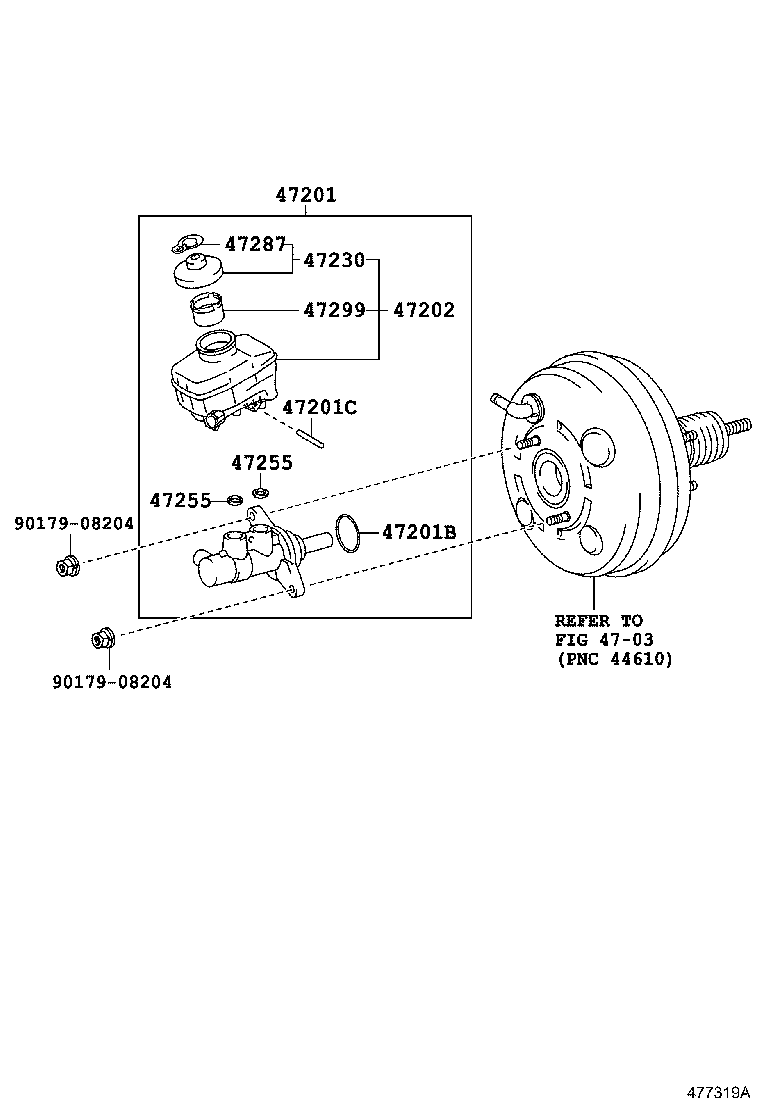

Toyota Reiz GRX132 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-0N020	GRX13#	09/2010 - 02/2012	1
47201-0N021	GRX13#	03/2012 - 06/2012	1
47201-0N022	GRX13#	07/2012 - 09/2013	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002	GRX13#	09/2010 - 09/2013	1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803	GRX13#	09/2010 - 09/2013	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-0N020	GRX13#	09/2010 - 09/2013	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-02260	GRX13#	09/2010 - 09/2013	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001	GRX13#	09/2010 - 09/2013	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001	GRX13#	09/2010 - 09/2013	2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010	GRX13#	09/2010 - 09/2013	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060	GRX13#	09/2010 - 09/2013	1
Common parts
90179-08204
Linked diagrams
4703

GRX132L-AETZKC (2010)
