GRX132L-AETZKC (2010)
Toyota Reiz
Production
Sep 2010
-
Sep 2013
Engine
5GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1009- )

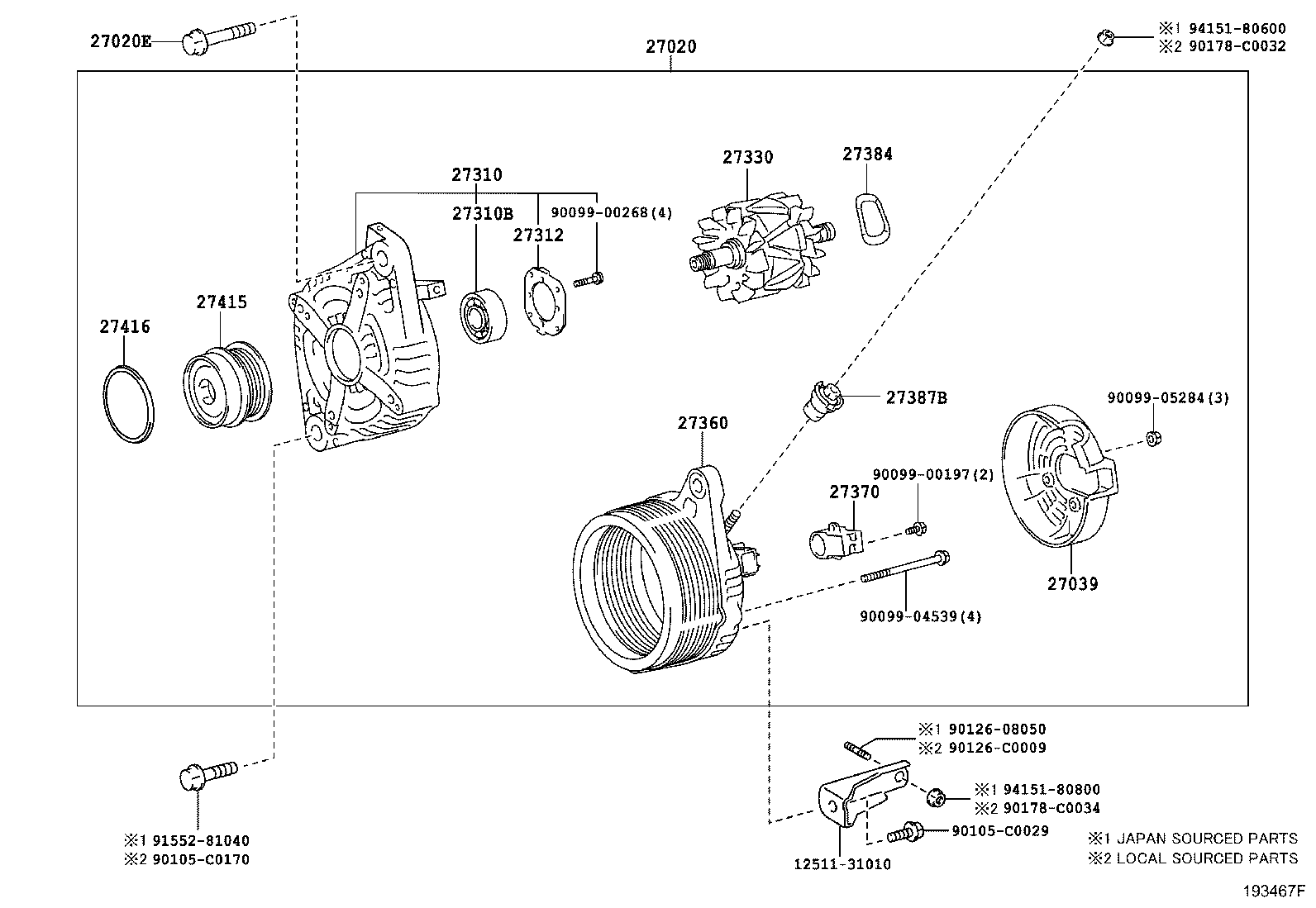

Click highlighted areas on diagram
12V 150A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0P183 |
3GRFE,5GRFE..GRX13# 12V 150A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-C0098 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0P070 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0P180 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10033 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 90068-10042 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27312-0M070 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0P180 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0P180 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0T030 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0T130 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27387-0H110 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27387-0T030 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W130 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27415-0W131 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
3GRFE,5GRFE..GRX13# |
1 | ||
| Common parts | ||||
| 12511-31010 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 90105-C0029 | ||||
| 90105-C0170 | ||||
| 90126-08050 | ||||
| 90126-C0009 | ||||
| 90178-C0032 | ||||
| 90178-C0034 | ||||
| 91552-81040 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
