GRX132L-AETZKC (2010)
Toyota Reiz

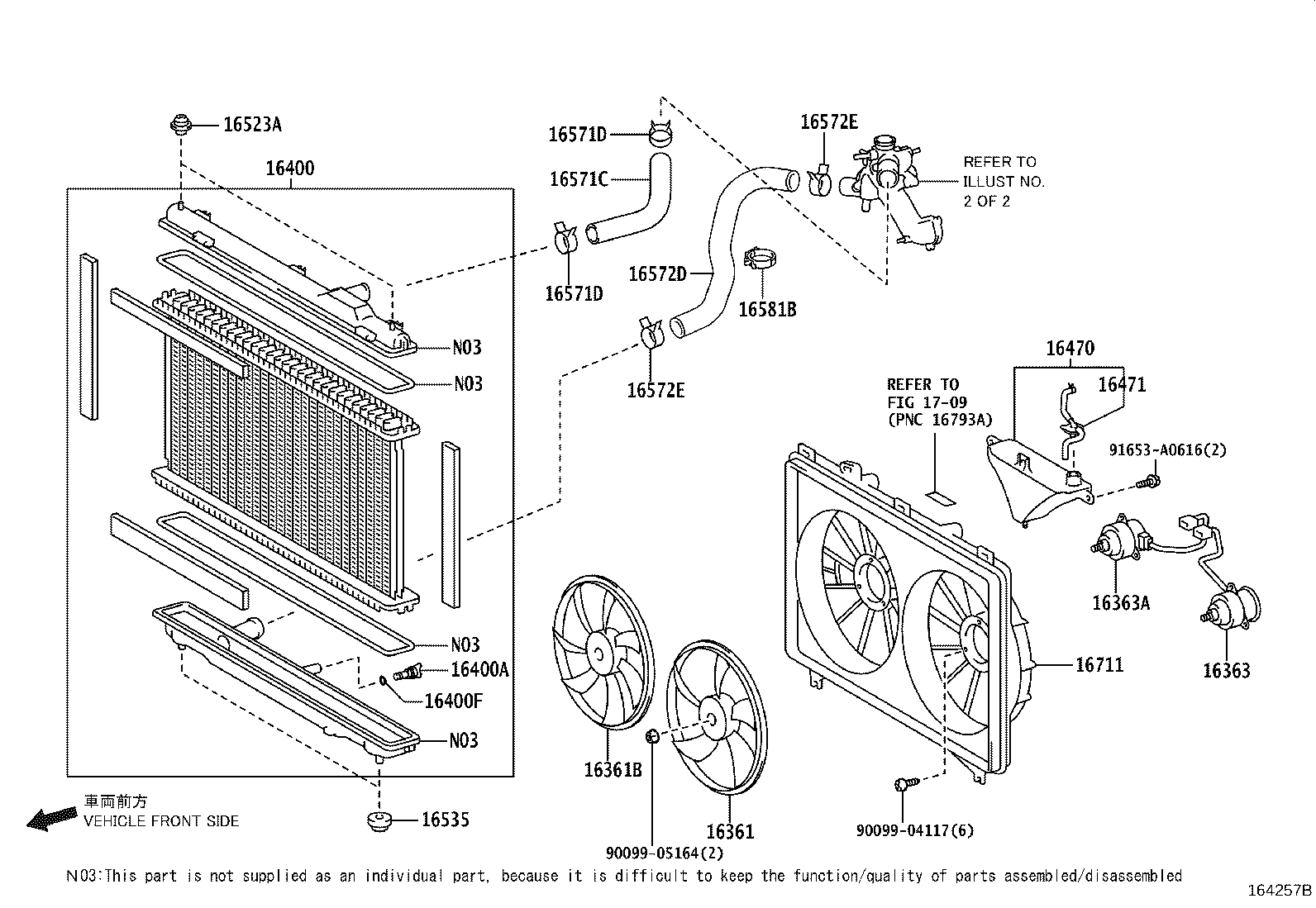

ILLUST NO. 1 OF 2(1009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0P040 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0P050 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0P050 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0P040 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0P101 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-0H290 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0P010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0P020 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0P010 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-T0007 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0P150 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-44801 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 90466-C0016 |
3GRFE,5GRFE..GRX13# (L) |
2 | ||
| 96136-44801 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-44801 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 90466-C0016 |
3GRFE,5GRFE..GRX13# (L) |
2 | ||
| 96136-44801 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0P160 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-C0016 |
3GRFE,5GRFE..GRX13# (L) |
2 | ||
| 96136-44801 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 96136-44801 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-C0016 |
3GRFE,5GRFE..GRX13# (L) |
2 | ||
| 96136-44801 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 96136-44801 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-28070 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0P070 |
3GRFE,5GRFE..GRX13# |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 91653-A0616 | ||||
| Linked diagrams | ||||
| 1709 | ||||

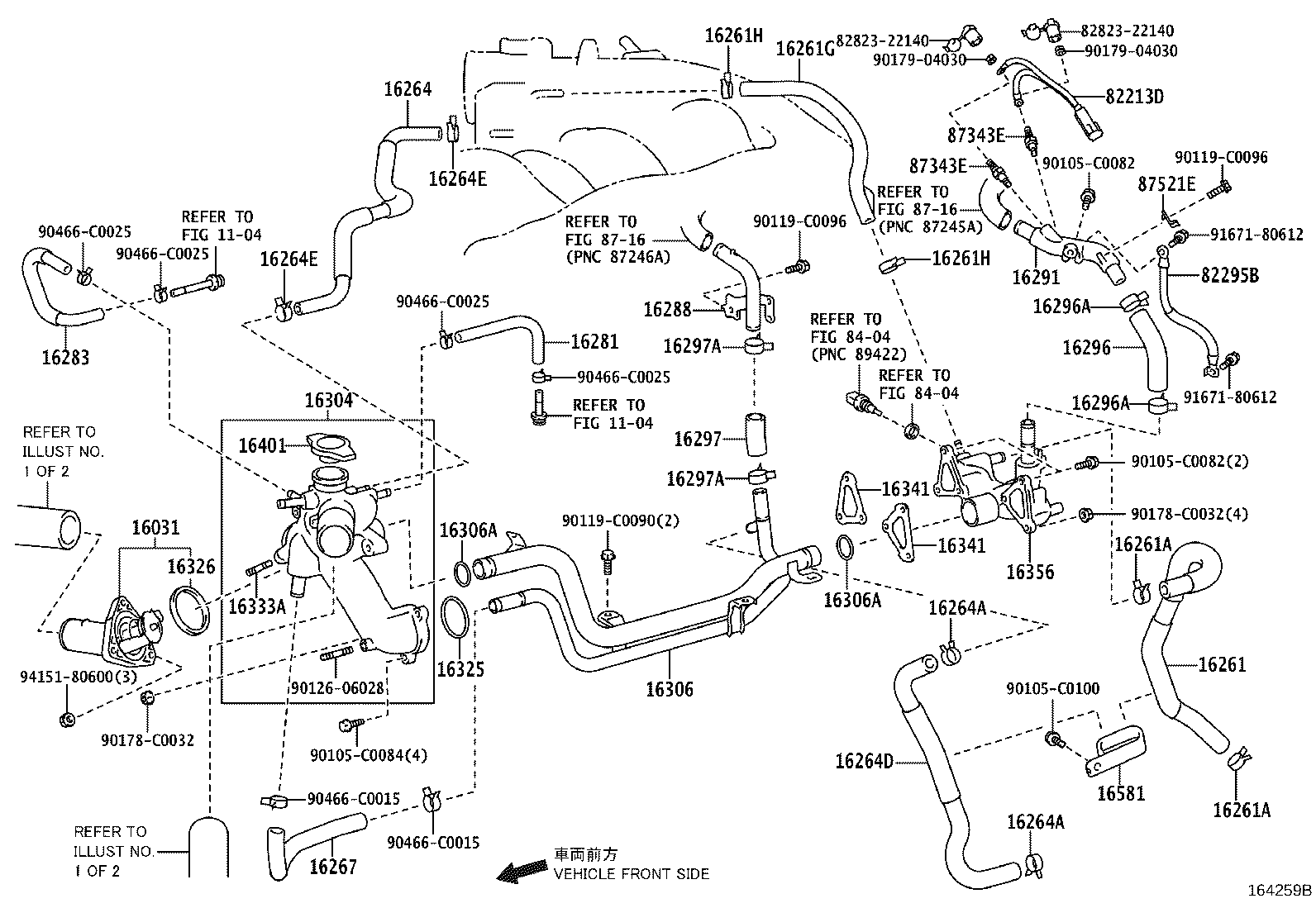

ILLUST NO. 2 OF 2(1009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31020 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0P010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 96136-42101 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 90466-C0013 |
3GRFE,5GRFE..GRX13# (L) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 96136-42101 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 90466-C0013 |
3GRFE,5GRFE..GRX13# (L) |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0P060 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0023 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 96137-51501 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0023 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 96137-51501 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0P060 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0013 |
3GRFE,5GRFE..GRX13# (L) |
2 | ||
| 96136-42101 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 96136-42101 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0013 |
3GRFE,5GRFE..GRX13# (L) |
2 | ||
| 96136-42101 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 96136-42101 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0P010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-51501 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 90466-C0023 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-51501 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 90466-C0023 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0P060 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0P030 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-0P010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-31031 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-31050 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-31010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42701 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 90466-C0015 |
3GRFE,5GRFE..GRX13# (L) |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42701 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 90466-C0015 |
3GRFE,5GRFE..GRX13# (L) |
1 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-31010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 90466-C0015 |
3GRFE,5GRFE..GRX13# (L) |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
3GRFE,5GRFE..GRX13# (J) |
2 | ||
| 90466-C0015 |
3GRFE,5GRFE..GRX13# (L) |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-31033 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16304-0P010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16306 - PIPE SUB-ASSY, WATER OUTLET | ||||
| 16306-0P010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16306A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 90301-T0031 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16306A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 90301-T0031 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0P030 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31020 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 92122-80618 |
3GRFE,5GRFE..GRX13# |
3 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0P010 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0P010 |
3GRFE,5GRFE..GRX13# |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-0P010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16356-31021 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31680 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16401-31650 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-31010 |
3GRFE,5GRFE..GRX13# |
1 | ||
| 82213D - WIRE, HEATER BLOWER | ||||
| 82213-22040 |
GRX13# |
1 | ||
| 82295B - WIRE,WINCH EARTH | ||||
| 82295-30010 |
GRX13# |
1 | ||
| 87343E - PLUG, WATER BY-PASS GLOW | ||||
| 87343-30010 |
GRX13# |
2 | ||
| 87343E - PLUG, WATER BY-PASS GLOW | ||||
| 87343-30010 |
GRX13# |
2 | ||
| 87521E - BRACKET,ENGINE BLOCK HEATER | ||||
| 87521-30010 |
GRX13# |
1 | ||
| Common parts | ||||
| 82823-22140 | ||||
| 90105-C0082 | ||||
| 90105-C0084 | ||||
| 90105-C0100 | ||||
| 90119-C0090 | ||||
| 90119-C0096 | ||||
| 90126-06028 | ||||
| 90178-C0032 | ||||
| 90179-04030 | ||||
| 90466-C0015 | ||||
| 90466-C0025 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8404 | ||||
| 8716 | ||||
