GRX132L-AETZKC (2013)
Toyota Reiz
(1309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

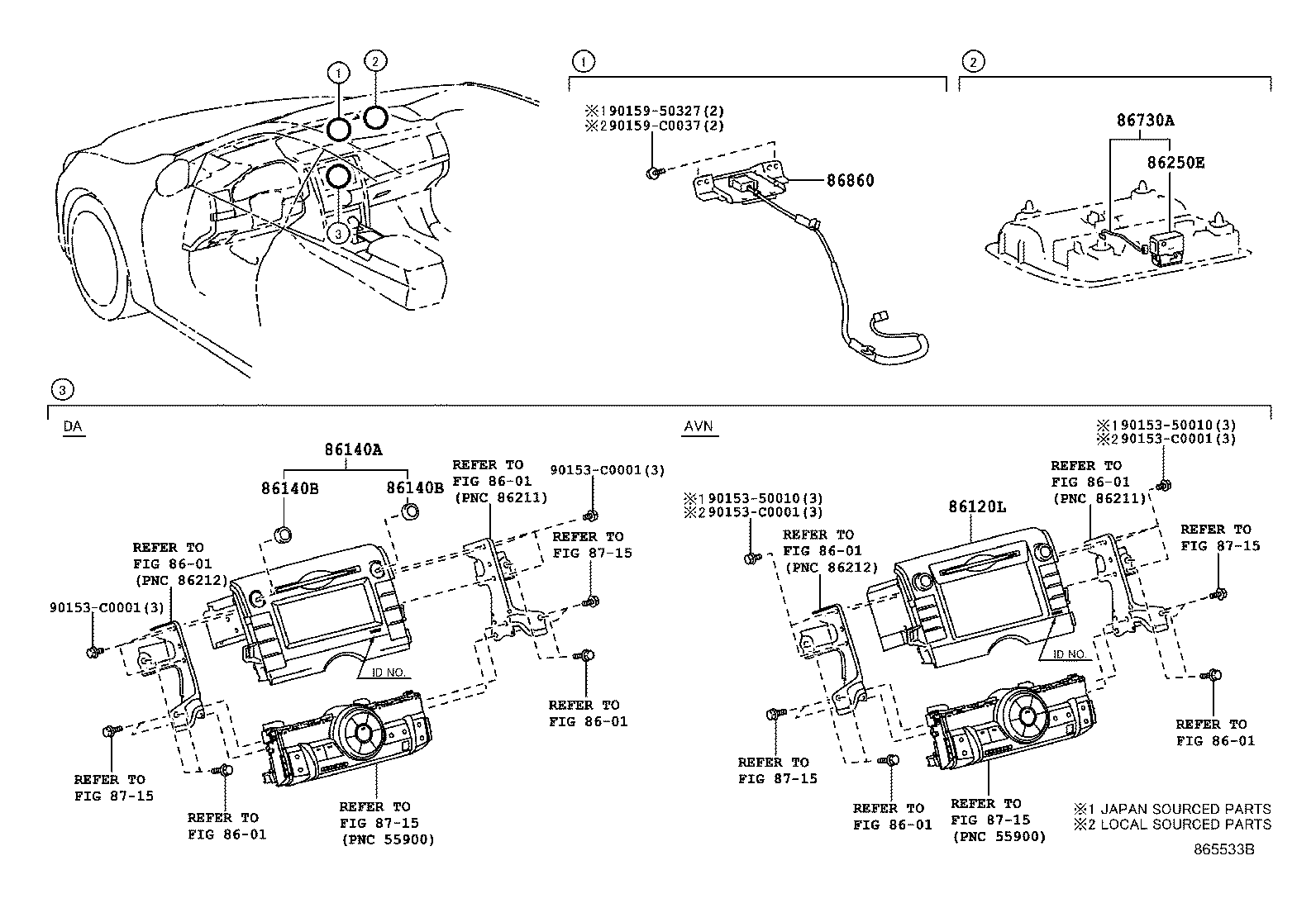

| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-0P060 |
GRX132..25S DENSO,ID=E8023,SPORT & WITH(*MR&*NS) |
1 | ||
| 86100-0P030 |
GRX132..25S AISIN AW,ID=B9051,SPORT & W(*MR & *NS) |
1 | ||
| 86100-0P031 |
GRX132..25S AISIN AW,ID=B9051,SPORT & W(*MR & *NS) |
1 | ||
| 86120-0P060 |
GRX13#..25S,25V DENSO,ID=E8023,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
1 | ||
| 86100-0P033 |
GRX132..25S AISIN AW,SPORT & W(*MR & *NS) |
1 | ||
| 86120-0P060 |
GRX132..25S DENSO,ID=E8023,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM) |
1 | ||
| 86100-0P031 |
GRX132..25S AISIN AW,ID=B9051,WITH(*MR & *NS) |
1 | ||
| 86100-0P032 |
GRX132..25S AISIN AW,ID=B9051,SPORT & W(*MR & *NS) |
1 | ||
| 86100-0P034 |
GRX132..25S AISIN AW,SPORT & W(*MR & *NS) |
1 | ||
| 86120-0P060 |
GRX132..25S DENSO,ID=E8023,WITH(*MR&*NS) |
1 | ||
| 86100-0P030 |
GRX132..25S AISIN AW,ID=B9051,WITH(*MR & *NS) |
1 | ||
| 86100-0P036 |
GRX132..25S AISIN AW,ID=B9051,SPORT & W(*MR & *NS) |
1 | ||
| 86100-0P033 |
GRX132..25S AISIN AW,WITH(*MR & *NS) |
1 | ||
| 86100-0P034 |
GRX132..25S AISIN AW,WITH(*MR & *NS) |
1 | ||
| 86100-0P032 |
GRX132..25S AISIN AW,ID=B9051,WITH(*MR & *NS) |
1 | ||
| 86100-0P036 |
GRX132..25S AISIN AW,ID=B9051,WITH(*MR & *NS) |
1 | ||
| 86100-0P035 |
GRX132..25S AISIN AW,SPORT & W(*MR & *NS) |
1 | ||
| 86100-0P037 |
GRX132..25S WITH(*MR & *NS) |
1 | ||
| 86100-0P037 |
GRX132..25S SPORT & W(*MR & *NS) |
2 | ||
| 86100-0P037 |
GRX132..25S SPORT & W(*MR & *NS) |
1 | ||
| 86100-0P035 |
GRX132..25S AISIN AW,WITH(*MR & *NS) |
1 | ||
| 86100-0P037 |
GRX132..25S WITH(*MR & *NS) |
2 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-0P010 |
GRX132..25S PANASONIC,ID=528CH,WITH(*MR) |
1 | ||
| 86140-0P010 |
GRX132..25S PANASONIC,ID=528CH,SPORT & W(*MR) |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25222 |
GRX132..25S WITH(*MR) |
2 | ||
| 90011-25222 |
GRX132..25S SPORT & W(*MR) |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25222 |
GRX132..25S WITH(*MR) |
2 | ||
| 90011-25222 |
GRX132..25S SPORT & W(*MR) |
2 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52030 |
GRX132..25S SPORT & WITH(*MR&*NS) |
1 | ||
| 86250-52030 |
GRX132..25S WITH(*MR) |
1 | ||
| 86250-52030 |
GRX132..25S WITH(*MR&*NS) |
1 | ||
| 86250-52030 |
GRX132..25S SPORT & W(*MR & *NS) |
1 | ||
| 86250-52030 |
GRX132..25S SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM) |
1 | ||
| 86250-52030 |
GRX13#..25S,25V SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
1 | ||
| 86250-52030 |
GRX132..25S SPORT & W(*MR) |
1 | ||
| 86250-52030 |
GRX132..25S WITH(*MR & *NS) |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-20050 |
GRX132..25S SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM) |
1 | ||
| 86730-20050 |
GRX132..25S SPORT & WITH(*MR&*NS) |
1 | ||
| 86730-20050 |
GRX13#..25S,25V SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
1 | ||
| 86730-06020 |
GRX132..25S WITH(*MR & *NS) |
1 | ||
| 86730-06020 |
GRX132..25S SPORT & W(*MR & *NS) |
1 | ||
| 86730-20050 |
GRX132..25S SPORT & W(*MR) |
1 | ||
| 86730-20050 |
GRX132..25S WITH(*MR) |
1 | ||
| 86730-20050 |
GRX132..25S WITH(*MR & *NS) |
1 | ||
| 86730-20050 |
GRX132..25S WITH(*MR&*NS) |
1 | ||
| 86730-20050 |
GRX132..25S SPORT & W(*MR & *NS) |
1 | ||
| 86730-06020 |
GRX132..25S WITH(*MR) |
1 | ||
| 86730-06020 |
GRX132..25S SPORT & W(*MR) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-22090 |
GRX132..25S SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM) |
1 | ||
| 86860-22090 |
GRX132..25S SPORT & WITH(*MR&*NS) |
1 | ||
| 86860-22090 |
GRX132..25S WITH(*MR&*NS) |
1 | ||
| 86860-0P010 |
GRX132..25S WITH(*MR & *NS) |
1 | ||
| 86860-22090 |
GRX13#..25S,25V SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
1 | ||
| 86860-0P010 |
GRX132..25S SPORT & W(*MR & *NS) |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90153-C0001 | ||||
| 90159-50327 | ||||
| 90159-C0037 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8715 | ||||
