Toyota Reiz GRX131 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-33050	GRX13#	09/2010 - 09/2013	1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-0P070	GRX131	09/2010 - 09/2013	1
64401-0P080	GRX13#..25S,25V SPORT & W(MR&NS&PSB&PBA&VDIM&AFSL)	09/2010 - 09/2013	1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09116	GRX13#	09/2010 - 09/2013	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-0P020	GRX13#	09/2010 - 09/2013	1
64469 - CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
64469-30010	GRX13#	09/2010 - 09/2013	1
64469 - CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
64469-30010	GRX13#	09/2010 - 09/2013	1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-0P010	GRX13#	09/2010 - 09/2013	1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-0P010	GRX13#	09/2010 - 09/2013	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-0P020	GRX131	09/2010 - 09/2013	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-0P020	GRX131	09/2010 - 09/2013	1
64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571-0P020	GRX13#	09/2010 - 09/2013	1
64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
90467-07076C0	GRX13# BLACK,TRIM0#,2#	09/2010 - 09/2013	4
64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
90467-07076C0	GRX13# BLACK,TRIM0#,2#	09/2010 - 09/2013	4
64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572-0P020	GRX13#	09/2010 - 09/2013	1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-53020	GRX13#	09/2010 - 09/2013	1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-0P020	GRX13#	09/2010 - 09/2013	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-0P010	GRX13#	09/2010 - 09/2013	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64620-0P010	GRX13#	09/2010 - 09/2013	1
75129B - CUSHION, REAR LICENCE PLATE
75129-0D010	GRX13#	09/2010 - 09/2013	2
Common parts
75126-0N010
90105-06120
90105-06168
90119-06939
90119-C0054
90119-C0235
90469-04004

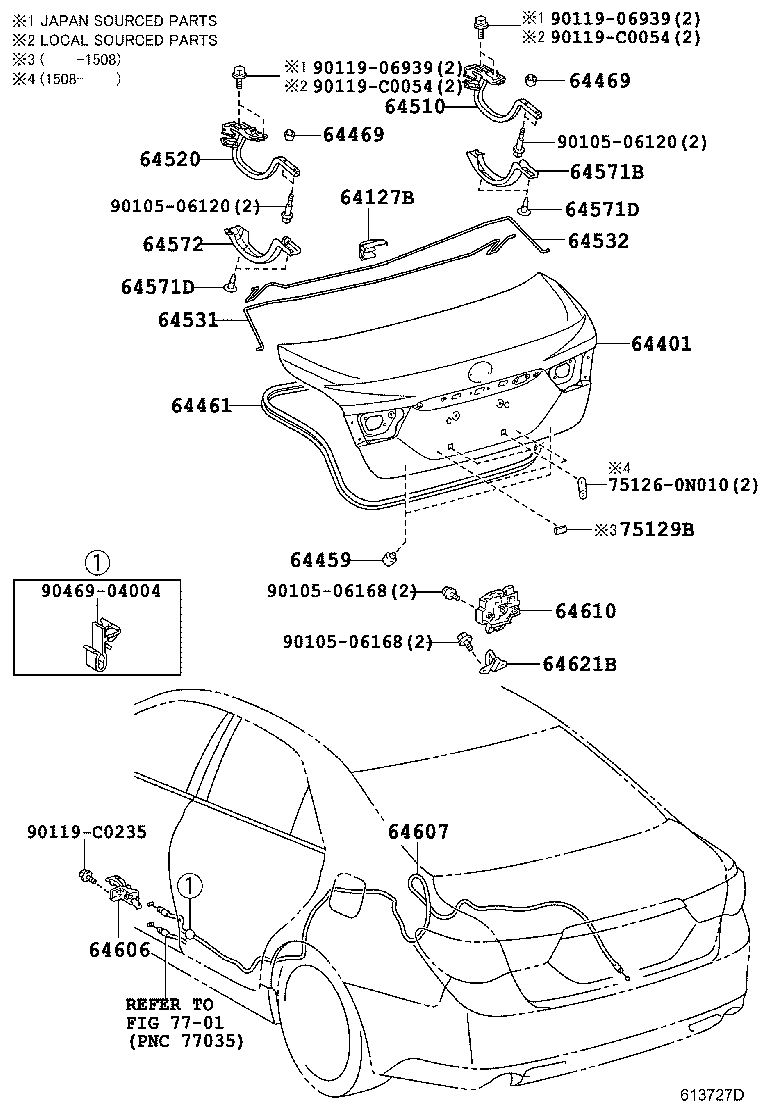

Linked diagrams
7701

GRX131L-AETUKC (2010)

(1009- )
