GRX131L-AETUKC (2010)

Toyota Reiz

Production Sep 2010 - Sep 2013
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1009-1309)

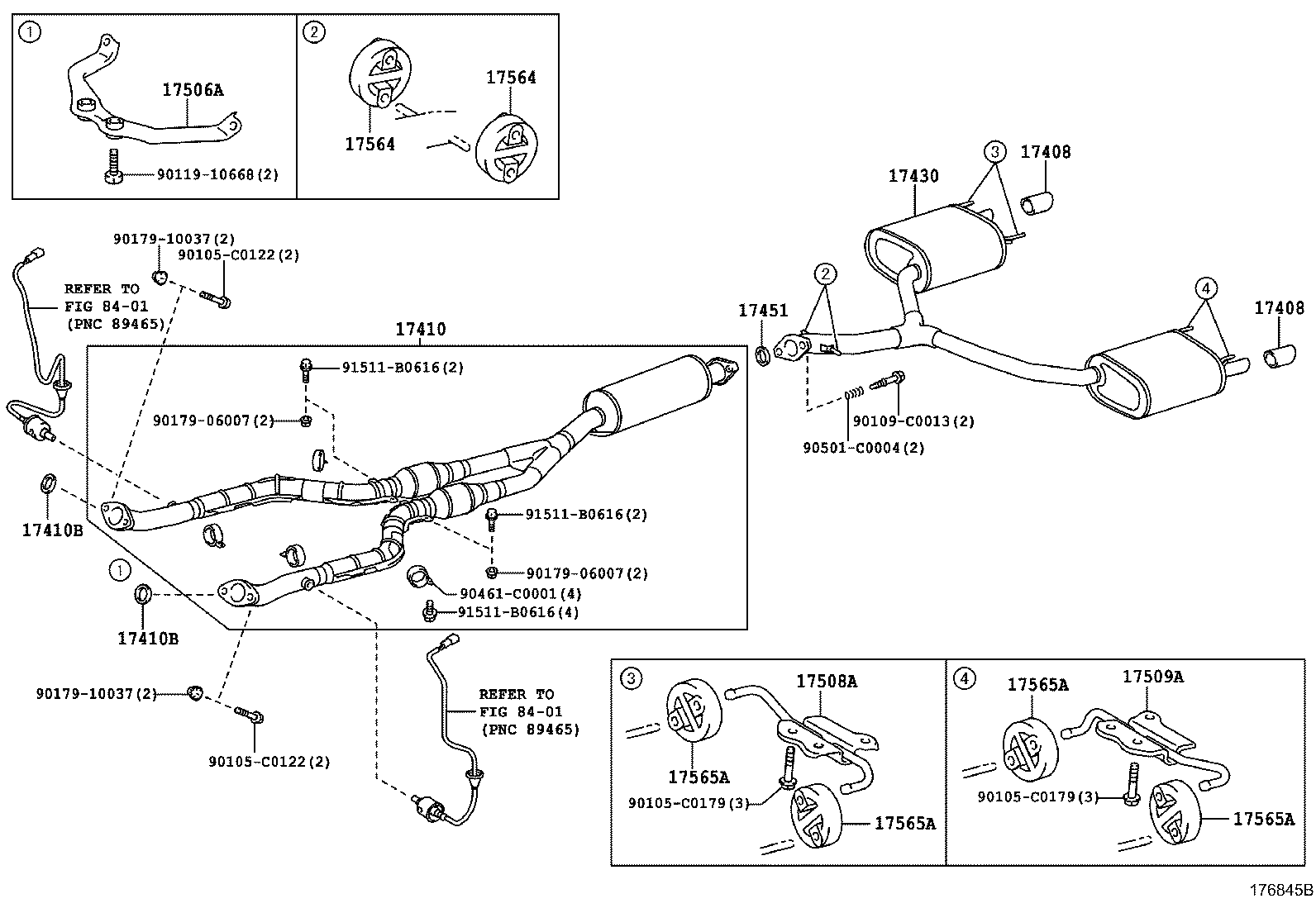

Click highlighted areas on diagram

diagram 17408 17408 17410 17410B 17410B 17430 17451 17506A 17508A 17509A 17564 17564 17565A 17565A 17565A 17565A 8401 8401 90105C0122 90105C0122 90105C0179 90105C0179 90109C0013 9011910668 9017906007 9017906007 9017910037 9017910037 90461C0001 90501C0004 91511B0616 91511B0616 91511B0616
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-0P040

3GRFE,5GRFE..GRX13#

 2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-0P040

3GRFE,5GRFE..GRX13#

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0P300

3GRFE,5GRFE..GRX13#

 1
17410B - GASKET, EXHAUST PIPE
90917-06078

3GRFE,5GRFE..GRX13#

 2
90917-C6001

3GRFE,5GRFE..GRX13#

 2
17410B - GASKET, EXHAUST PIPE
90917-06078

3GRFE,5GRFE..GRX13#

 2
90917-C6001

3GRFE,5GRFE..GRX13#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0P280

3GRFE,5GRFE..GRX13#

 1
17451 - GASKET, EXHAUST PIPE
17451-0P011

3GRFE,5GRFE..GRX13#

 1
17451-0P012

3GRFE,5GRFE..GRX13#

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31030

3GRFE,5GRFE..GRX13#

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-31080

3GRFE,5GRFE..GRX13#

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-31040

3GRFE,5GRFE..GRX13#

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T010

3GRFE,5GRFE..GRX13#

 2
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T010

3GRFE,5GRFE..GRX13#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D070

3GRFE,5GRFE..GRX13#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D070

3GRFE,5GRFE..GRX13#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D070

3GRFE,5GRFE..GRX13#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D070

3GRFE,5GRFE..GRX13#

 4
Common parts
90105-C0122
90105-C0179
90109-C0013
90119-10668
90179-06007
90179-10037
90461-C0001
90501-C0004
91511-B0616
Linked diagrams
8401
