GRX122L-AETZKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510- )25V,30V

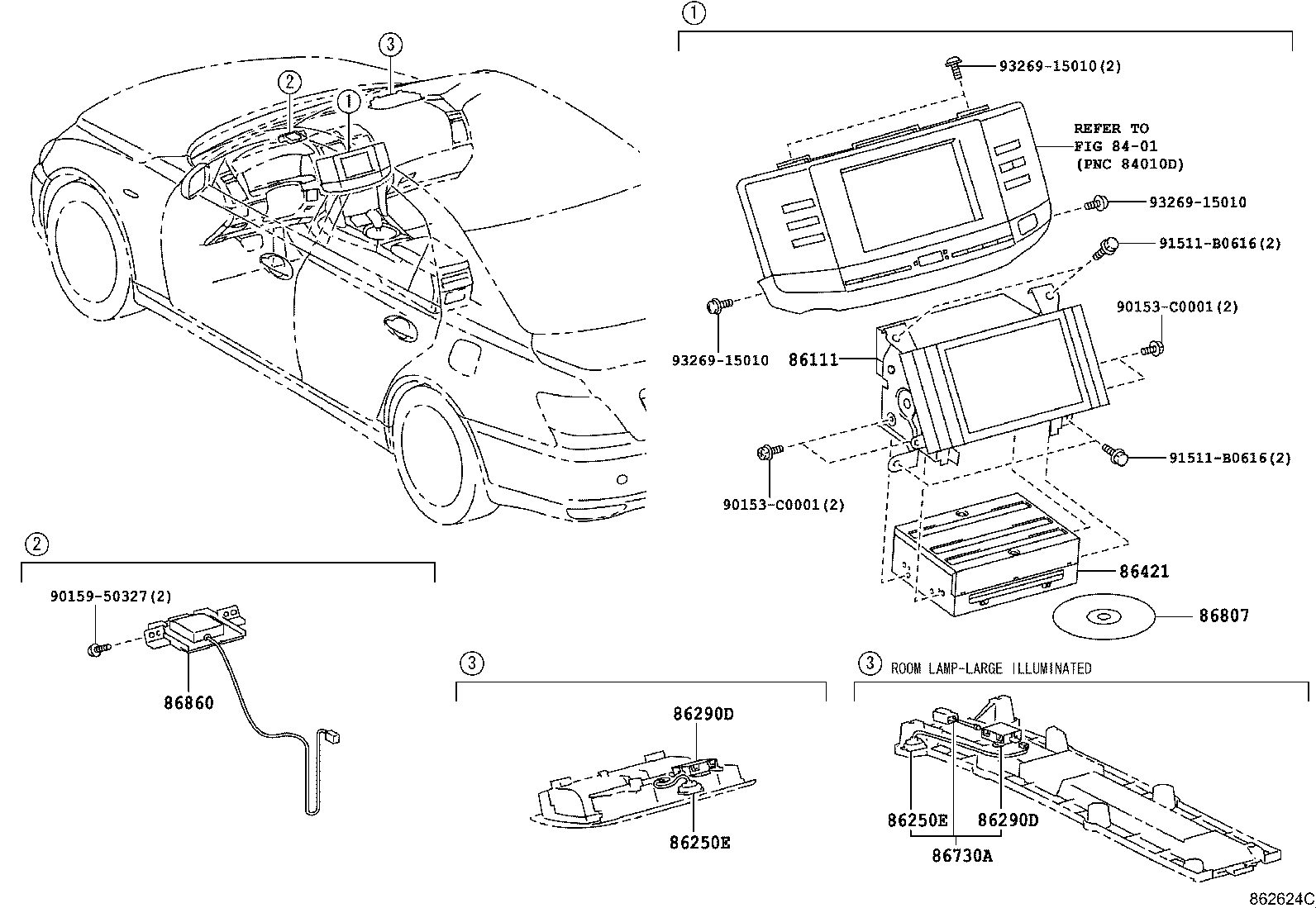

Click highlighted areas on diagram

diagram 8401 86111 86250E 86250E 86290D 86290D 86421 86730A 86807 86860 90153C0001 90153C0001 9015950327 91511B0616 91511B0616 9326915010 9326915010 9326915010
Part # Description Qty Price
86111 - MULTI-DISPLAY
86111-22060

GRX12#..25V,30V

PANASONIC,EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-47020

GRX12#..25V,30V

ROOM LAMP-LARGE ILLUMINATED&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86250-47020

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-47020

GRX12#..25V,30V

ROOM LAMP-LARGE ILLUMINATED&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86250-47020

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86290D - AMPLIFIER ASSY, MICROPHONE
86290-47010

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86290-47010

GRX12#..25V,30V

ROOM LAMP-LARGE ILLUMINATED&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86290D - AMPLIFIER ASSY, MICROPHONE
86290-47010

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86290-47010

GRX12#..25V,30V

ROOM LAMP-LARGE ILLUMINATED&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86421 - BOARD, NAVIGATION MODULE
86421-30030

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-22030

GRX12#..25V,30V

ROOM LAMP-LARGE ILLUMINATED&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86807 - DISC KIT, CD-ROM
86807-0W021

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86807-0N013

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86807-0W022

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86807-0W023

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-22060

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
Common parts
90153-C0001
90159-50327
91511-B0616
93269-15010
Linked diagrams
8401
