GRX122L-AETZKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510-0710)25V,30V ; (0710- )

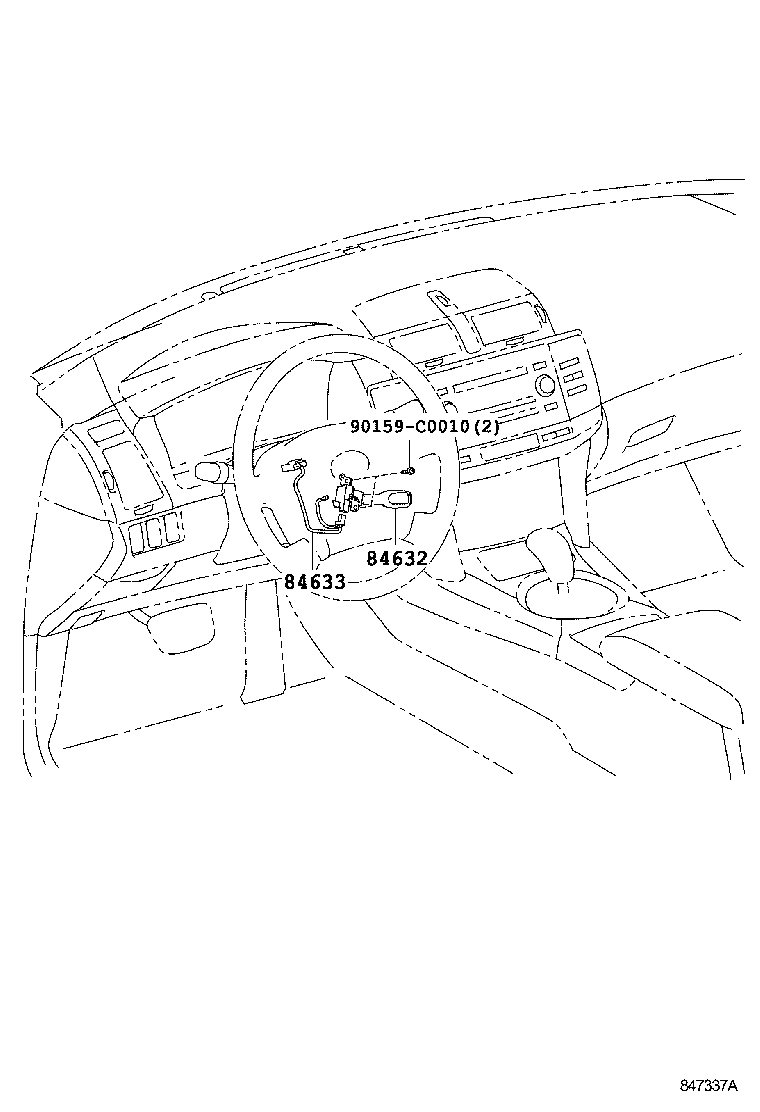

Click highlighted areas on diagram

diagram 84632 84633 90159C0010
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-34011

GRX12#..25V,30V

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48020

GRX12#..25V,30V

 1
Common parts
90159-C0010
