GRX122L-AETZKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510- )

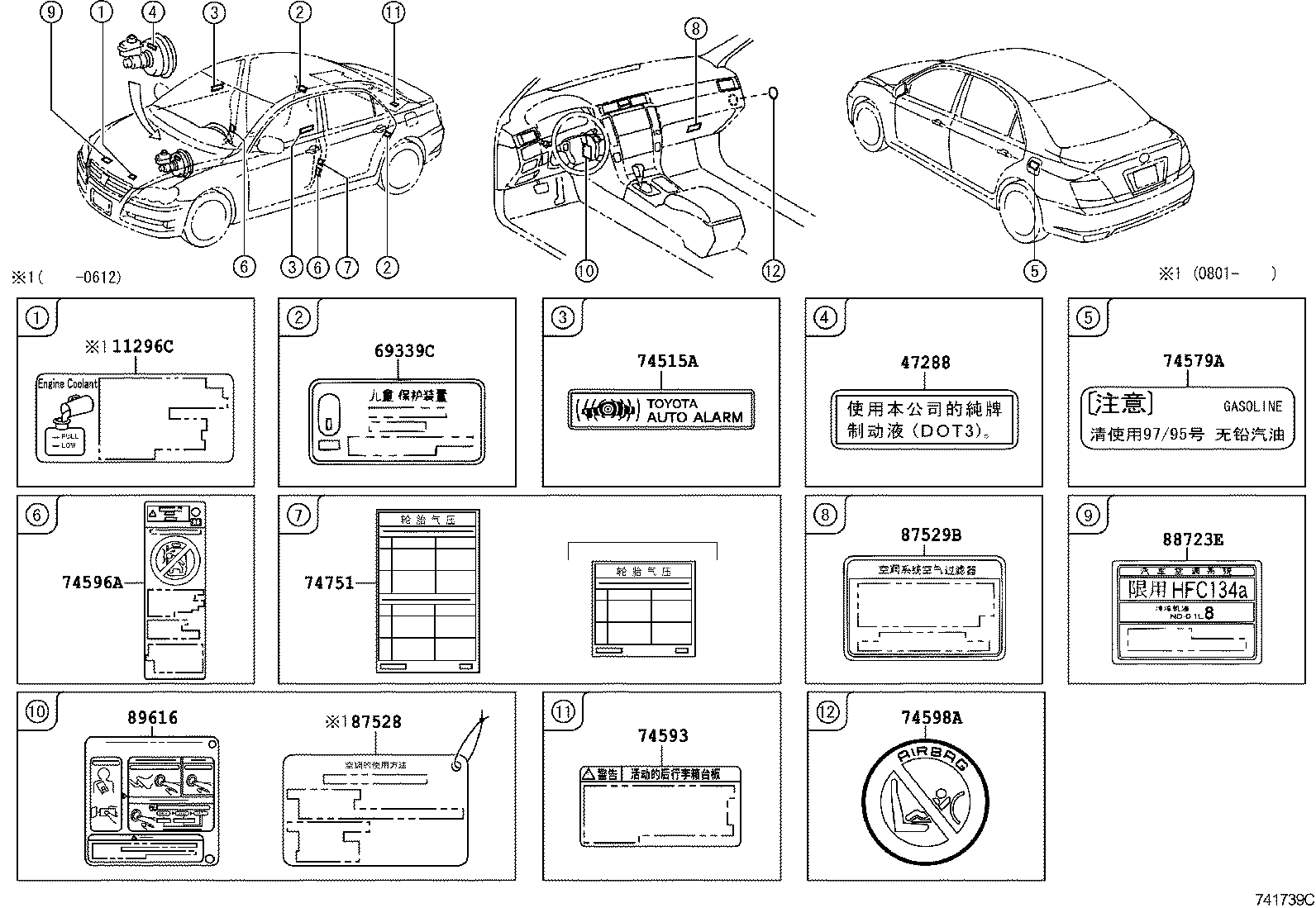

Click highlighted areas on diagram

diagram 11296C 47288 69339C 74515A 74579A 74593 74596A 74598A 74751 87528 87529B 88723E 89616
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

3GRFE,5GRFE..GRX12#

 1
47288 - LABEL, BRAKE FLUID NOTICE
47288-60010

GRX12#

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-52020

GRX12#

 2
74515A - PLATE, THEFT WARNING
74515-30020

GRX12#

 2
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-30030

GRX12#

 1
74593 - LABEL, PACKAGE TRAY TRIM NOTICE
74593-0P010

GRX12#

 1
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-30040

GRX12#

 1
74598-06040

GRX12#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-22A30

GRX12#

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-0D020

GRX12#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-0D020

GRX12#

 1
