GRX122L-AETZKC (2005)
Toyota Reiz
Production
Oct 2005
-
Oct 2007
Engine
5GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0510- )

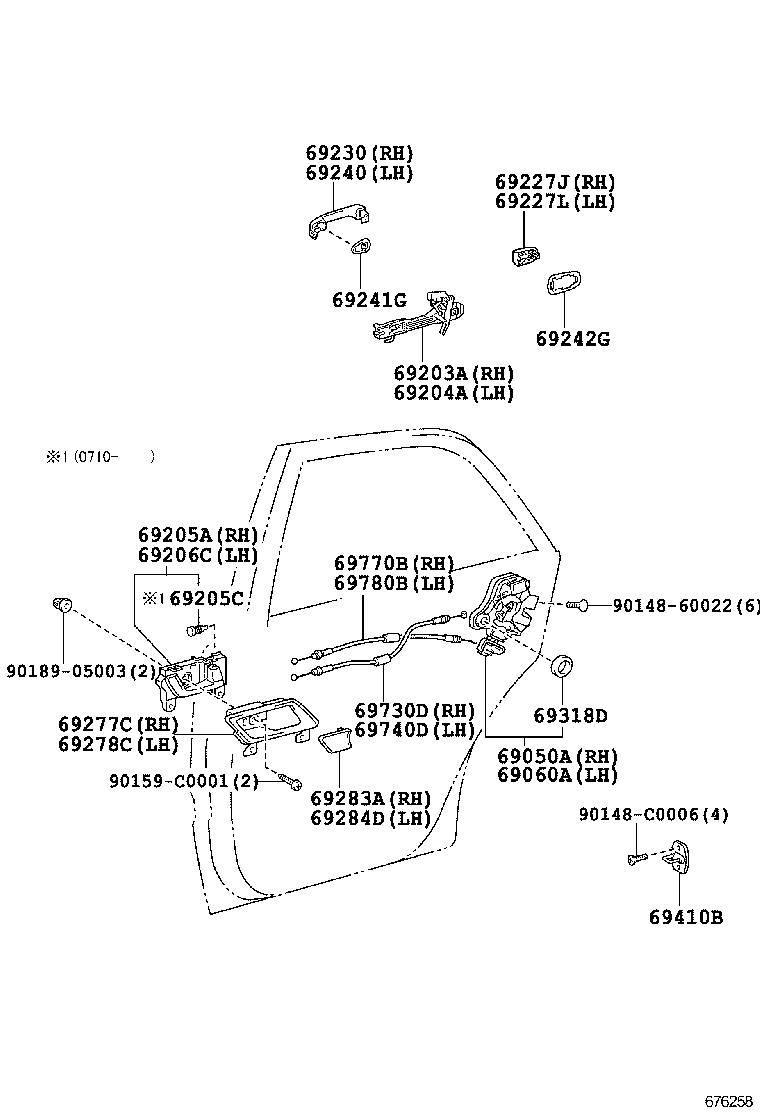

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH | ||||
| 69050-0N010 |
GRX12# |
1 | ||
| 69050-0N011 |
GRX12# |
1 | ||
| 69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH | ||||
| 69060-0N011 |
GRX12# |
1 | ||
| 69060-0N010 |
GRX12# |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-0P010 |
GRX12# |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-0P010 |
GRX12# |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69270-22010 |
GRX12# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69280-22020 |
GRX12# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-0N010 |
GRX122 *CR |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-0N010 |
GRX122 *CR |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-0N010 |
GRX122 PLATED |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69210-0N010 |
GRX122 PLATED |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
GRX12# |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
GRX12# |
2 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69287-0P010 |
GRX12# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69288-0P010 |
GRX12# |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-22020 |
GRX12# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-22020 |
GRX12# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GRX12# |
2 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-0P010 |
GRX12# |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-0P010 |
GRX12# |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-0P010 |
GRX12# |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-0P010 |
GRX12# |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-0P010 |
GRX12# |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-C0006 | ||||
| 90159-C0001 | ||||
| 90189-05003 | ||||
