GRX122L-AETZKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510- )

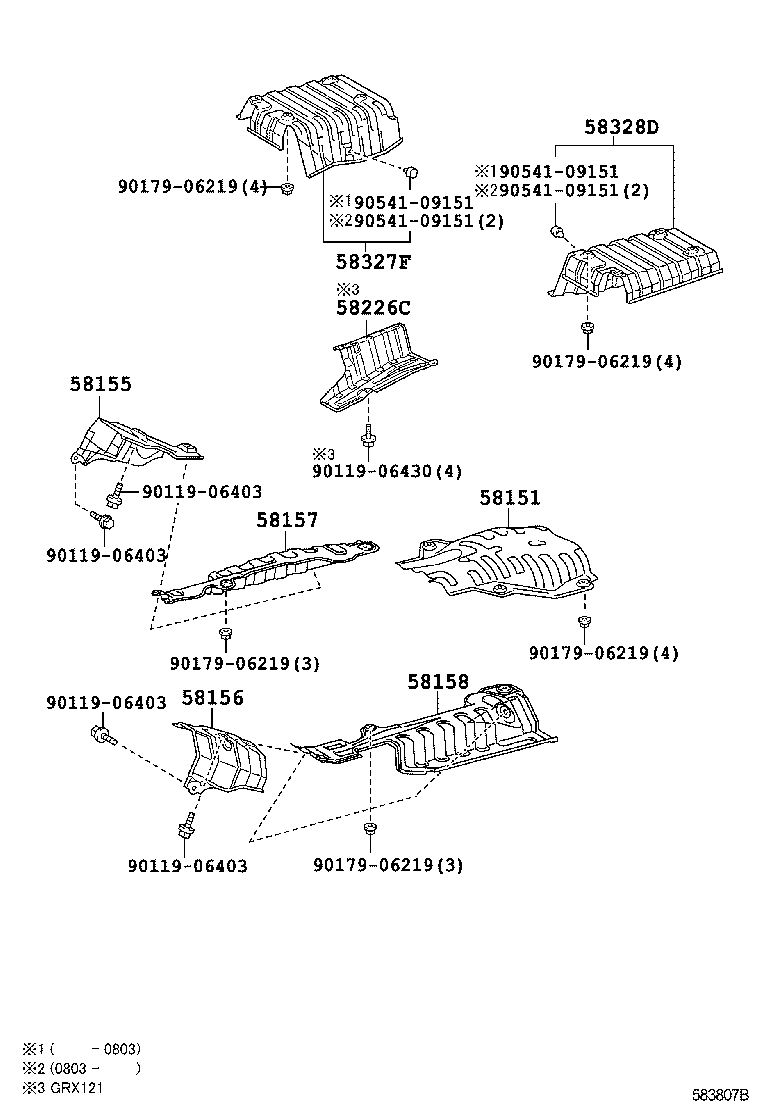

Click highlighted areas on diagram

diagram 58151 58155 58156 58157 58158 58226C 58327F 58328D 9011906403 9011906403 9011906403 9011906403 9011906430 9017906219 9017906219 9017906219 9017906219 9017906219 9054109151 9054109151 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30130

GRX12#

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-22100

GRX12#

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-30080

GRX12#

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58157-30071

GRX12#

 1
58158 - INSULATOR, FRONT FLOOR HEAT, NO.6
58158-30061

GRX12#

 1
58327F - INSULATOR, MAIN MUFFLER HEAT, RH
58327-30052

GRX12#

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58328-30033

GRX12#

 1
Common parts
90119-06403
90119-06430
90179-06219
90541-09151
