GRX122L-AETZKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

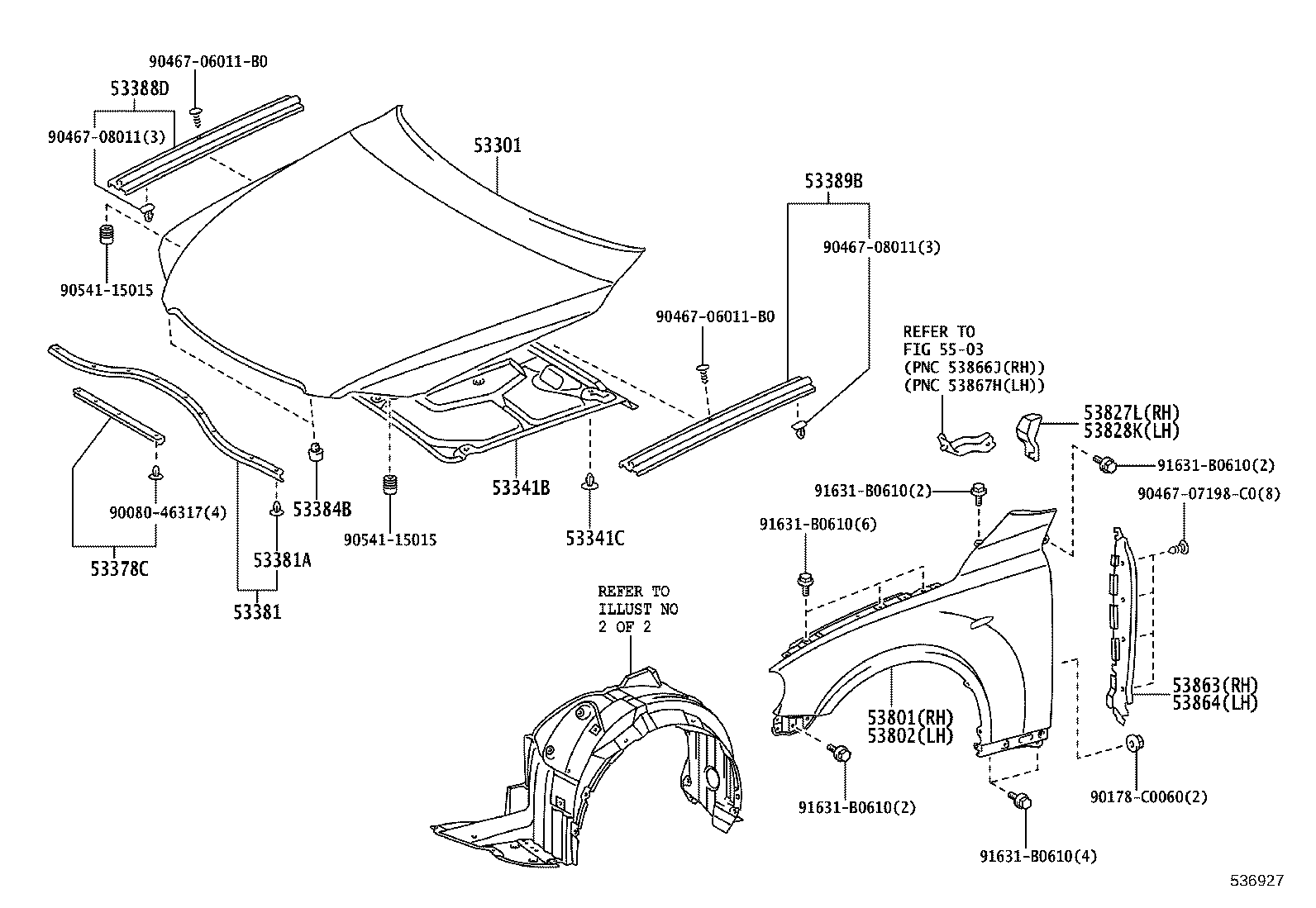

ILLUST NO. 1 OF 2(0510- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53378C 53381 53381A 53384B 53388D 53389B 53801 53802 53827L 53828K 53863 53864 5503 9008046317 90178C0060 9046706011B0 9046706011B0 9046707198C0 9046708011 9046708011 9054115015 9054115015 91631B0610 91631B0610 91631B0610 91631B0610 91631B0610
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-0P010

GRX12#

 1
53341B - INSULATOR, HOOD
53341-0P010

GRX12#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-08124

GRX12#

 8
53378C - SEAL, HOOD AIR INTAKE DUCT
53378-0P010

GRX12#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0P010

GRX12#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90080-46317

GRX12#

 9
53384B - CUSHION, HOOD, CENTER
53384-60050

GRX12#

 2
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-0P010

GRX12#

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-0P010

GRX12#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-0P010

GRX12#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-0P010

GRX12#

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-0P010

GRX12#

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-0P010

GRX12#

 1
53863 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH
53863-22040

GRX12#

 1
53864 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH
53864-22050

GRX12#

 1
Common parts
90080-46317
90178-C0060
90467-06011B0
90467-07198C0
90467-08011
90541-15015
91631-B0610
Linked diagrams
5503

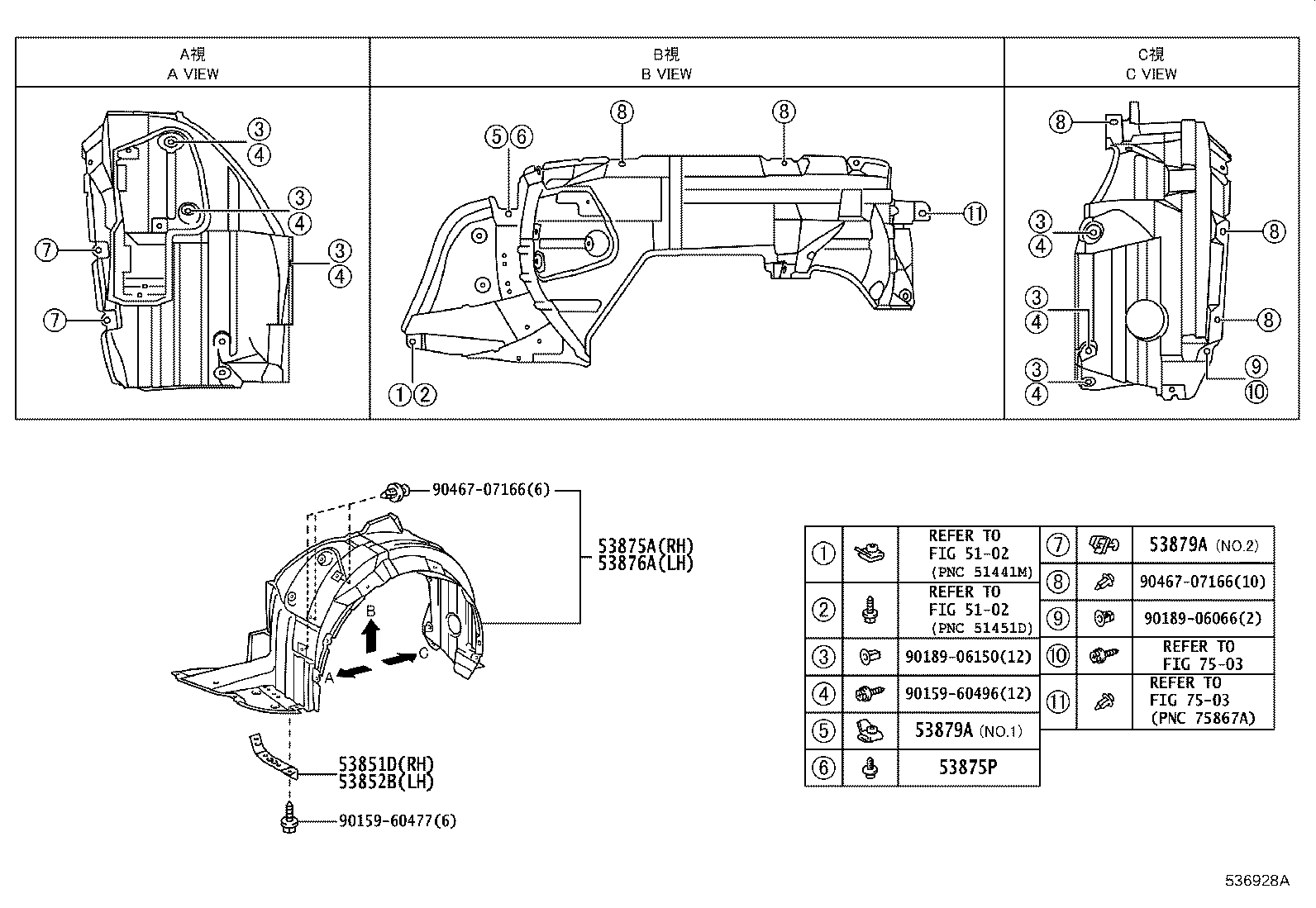

ILLUST NO. 2 OF 2(0510- )

Click highlighted areas on diagram

FENDER LINER

diagram 5102 5102 53851D 53852B 53875A 53875P 53876A 53879A 53879A 7503 7503 9015960477 9015960496 9018906066 9018906150 9046707166 9046707166
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0N010

GRX12#

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-0N010

GRX12#

 1
53875A - LINER, FRONT FENDER, RH
53805-0P010

GRX12#

 1
53875P - SCREW, NO.1
90159-60477

GRX12#

 2
53876A - LINER, FRONT FENDER, LH
53806-0P010

GRX12#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-17020

GRX12#

NO.1

 2
53879-28010

GRX12#

NO.2

 4
53879A - RETAINER, FRONT FENDER LINER
53879-17020

GRX12#

NO.1

 2
53879-28010

GRX12#

NO.2

 4
Common parts
90159-60477
90159-60496
90189-06066
90189-06150
90467-07166
Linked diagrams
5102
7503
