GRX122L-AETZKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510- )

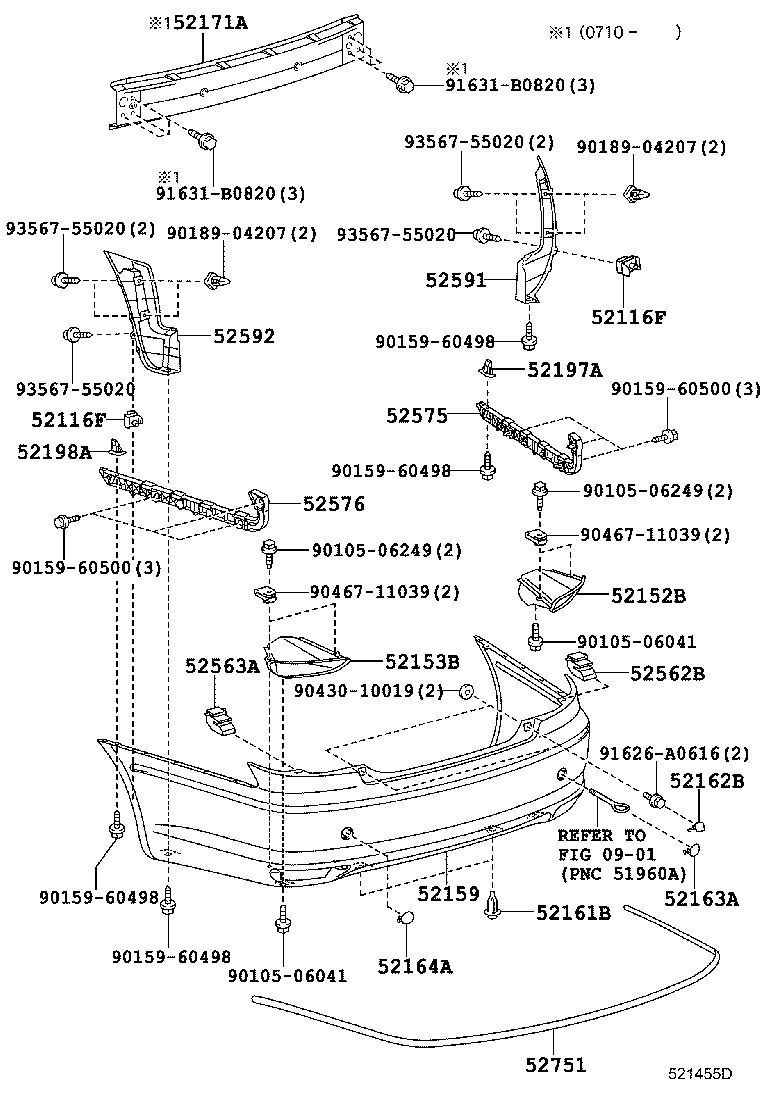

Click highlighted areas on diagram

diagram 0901 52116F 52116F 52152B 52153B 52159 52161B 52162B 52163A 52164A 52171A 52197A 52198A 52562B 52563A 52575 52576 52591 52592 52751 9010506041 9010506041 9010506249 9010506249 9015960498 9015960498 9015960498 9015960498 9015960500 9015960500 9018904207 9018904207 9043010019 9046711039 9046711039 91626A0616 91631B0820 91631B0820 9356755020 9356755020 9356755020 9356755020
Part # Description Qty Price
52116F - RETAINER, REAR BUMPER
52115-0P010

GRX12#

 2
52116F - RETAINER, REAR BUMPER
52115-0P010

GRX12#

 2
52152B - EXTENSION, REAR BUMPER, RH
52106-22080

GRX12#

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-22080

GRX12#

 1
52159 - COVER, REAR BUMPER
52159-0P901

GRX12#

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

GRX12#

 2
52162B - PLATE, REAR BUMPER, NO.1
52162-0N901

GRX12#

 2
52163A - PLATE, REAR BUMPER, RH
52163-0P020

GRX12#

 1
52164A - PLATE, REAR BUMPER, LH
52164-0P020

GRX12#

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-0P010

GRX12#

 1
52198A - BRACKET, REAR BUMPER SEAL, LH
52197-0P010

GRX12#

 1
52562B - RETAINER, REAR BUMPER, UPPER RH
52561-0P010

GRX12#

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52561-0P010

GRX12#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0P010

GRX12#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0P010

GRX12#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0P010

GRX12#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0P010

GRX12#

 1
52751 - MOULDING, REAR BUMPER
52751-0P010

GRX12#

 1
Common parts
90105-06041
90105-06249
90159-60498
90159-60500
90189-04207
90430-10019
90467-11039
91626-A0616
91631-B0820
93567-55020
Linked diagrams
0901
