GRX122L-AETZKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510- )

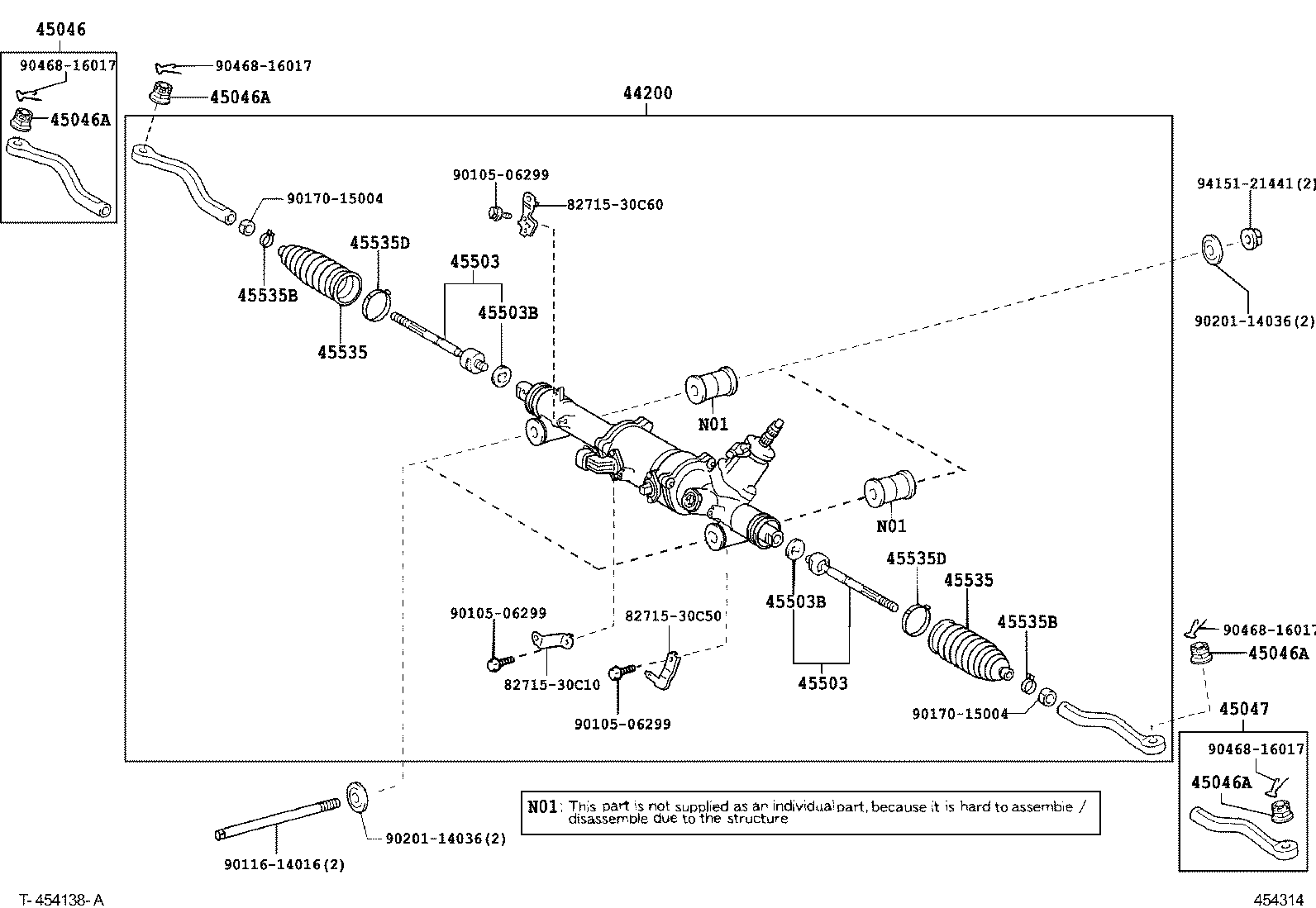

Click highlighted areas on diagram

diagram 44200 45046 45046A 45046A 45046A 45046A 45047 45503 45503 45503B 45503B 45535 45535 45535B 45535B 45535D 45535D 8271530C10 8271530C50 8271530C60 9010506299 9010506299 9010506299 9011614016 9017015004 9017015004 9020114036 9020114036 9046816017 9046816017 9046816017 9046816017 9415121441
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-30320

GRX12#

 1
44200-30322

GRX12#

 1
44200-30321

GRX12#

 1
45046 - END SUB-ASSY, TIE ROD, RH
45463-39015

GRX12#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

GRX12#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

GRX12#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

GRX12#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

GRX12#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45464-39015

GRX12#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-39295

GRX12#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-39295

GRX12#

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14011

GRX12#

OD=40

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14011

GRX12#

OD=40

 2
45535 - BOOT, STEERING RACK, NO.1
45535-30030

GRX12#

 2
45535 - BOOT, STEERING RACK, NO.1
45535-30030

GRX12#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

GRX12#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

GRX12#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-55016

GRX12#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-55016

GRX12#

 2
Common parts
82715-30C10
82715-30C50
82715-30C60
90105-06299
90116-14016
90170-15004
90201-14036
90468-16017
94151-21441
