GRX122L-AETQKC (2005)
Toyota Reiz
(0510- )

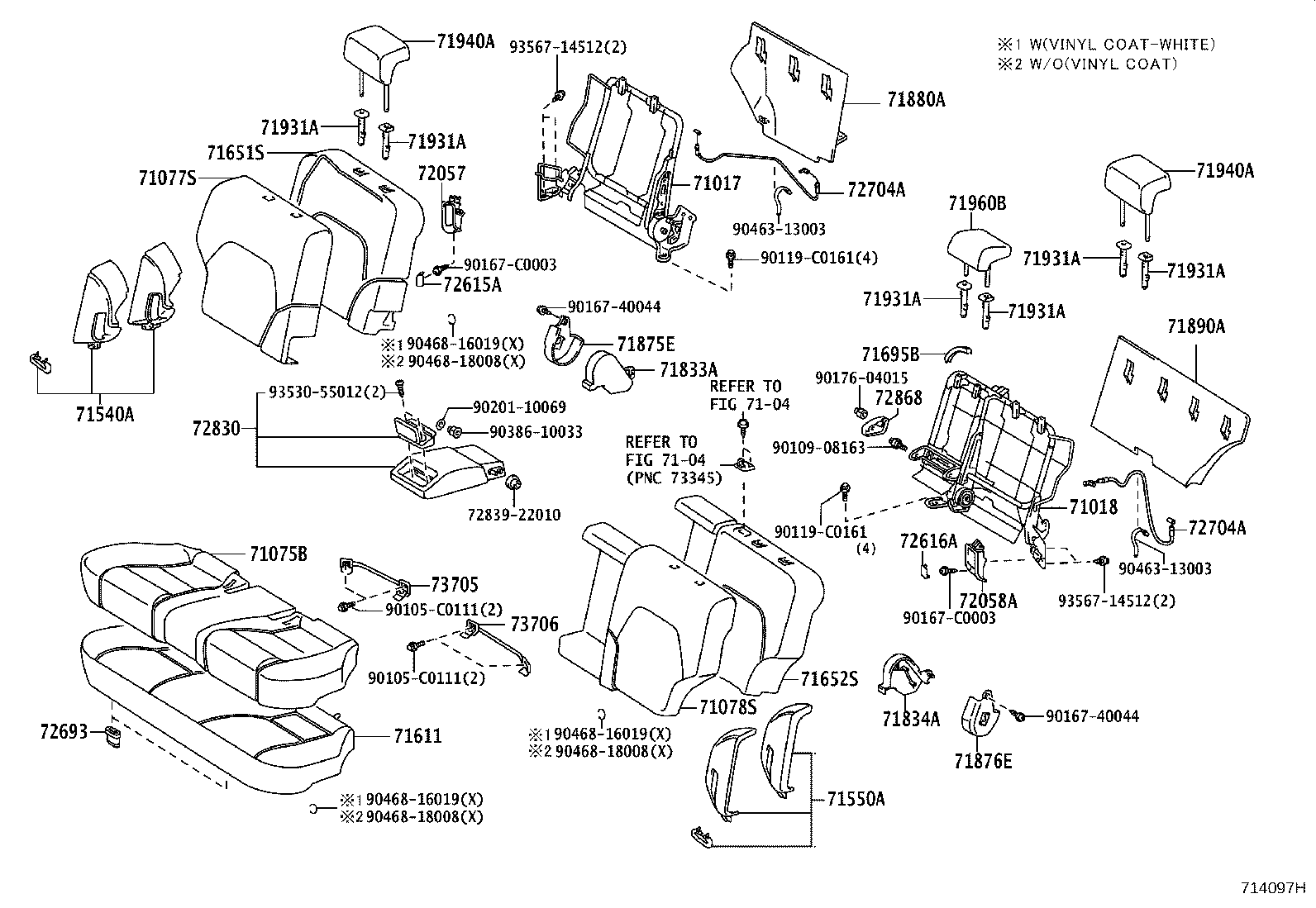

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0P010 |
GRX12# |
1 | ||
| 71017-0P011 |
GRX12# |
1 | ||
| 71017-0P010 |
GRX12# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0P010 |
GRX12# |
1 | ||
| 71018-0P011 |
GRX12# |
1 | ||
| 71018-0P010 |
GRX12# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0P021C0 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71075-0P020C1 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71075-0P020A0 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71075-0P021C1 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71075-0P021A0 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0P020A0 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71077-0P020C0 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71077-0P020C1 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0P020C1 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71078-0P020A0 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71078-0P020C0 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-0P020C2 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71540-0P020C6 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71540-0P020A3 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71540-0P020A1 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71540-0P020C4 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-0P020A1 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71550-0P020C2 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71550-0P020C4 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71550-0P020C6 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71550-0P020A3 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-0P010 |
GRX12# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0P010 |
GRX12# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0P010 |
GRX12# |
1 | ||
| 71695B - PROTECTOR, REAR SEAT, NO.1 LH | ||||
| 71695-22020 |
GRX12# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-0P010C0 |
GRX12# BLACK,TRIM2# |
1 | ||
| 71833-0P010A0 |
GRX12# IVORY,TRIM0# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-0P010C0 |
GRX12# BLACK,TRIM2# |
1 | ||
| 71834-0P010A0 |
GRX12# IVORY,TRIM0# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0P010 |
GRX12# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0P010 |
GRX12# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-0P010C1 |
GRX12# BLACK,TRIM0#,2# |
1 | ||
| 71880-0P011C1 |
GRX12# BLACK,TRIM0#,2# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-0P011C1 |
GRX12# BLACK,TRIM0#,2# |
1 | ||
| 71890-0P010C1 |
GRX12# BLACK,TRIM0#,2# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020C0 |
GRX12# W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-42020A3 |
GRX12# W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020C0 |
GRX12# W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-42020A3 |
GRX12# W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020C0 |
GRX12# W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-42020A3 |
GRX12# W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020C0 |
GRX12# W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-42020A3 |
GRX12# W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020C0 |
GRX12# W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-42020A3 |
GRX12# W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020C0 |
GRX12# W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-42020A3 |
GRX12# W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020C0 |
GRX12# W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-42020A3 |
GRX12# W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020C0 |
GRX12# W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-42020A3 |
GRX12# W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020C0 |
GRX12# W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-42020A3 |
GRX12# W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020C0 |
GRX12# W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-42020A3 |
GRX12# W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020C0 |
GRX12# W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-42020A3 |
GRX12# W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71930-42020C0 |
GRX12# W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71931-42020A3 |
GRX12# W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0P010A0 |
GRX122..25 IVORY,TRIM0# |
2 | ||
| 71940-0P010C0 |
GRX122..25 BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0P010A0 |
GRX122..25 IVORY,TRIM0# |
2 | ||
| 71940-0P010C0 |
GRX122..25 BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0P010A0 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71960-0P010C0 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 71960-0P010A1 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 71960-0P010C1 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-0P010A0 |
GRX12# IVORY,TRIM0# |
1 | ||
| 72057-0P010C0 |
GRX12# BLACK,TRIM2# |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-0P010A0 |
GRX12# IVORY,TRIM0# |
1 | ||
| 72058-0P010C0 |
GRX12# BLACK,TRIM2# |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-0P010A0 |
GRX12# IVORY,TRIM0# |
1 | ||
| 72615-0P010C0 |
GRX12# BLACK,TRIM2# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-0P010A0 |
GRX12# IVORY,TRIM0# |
1 | ||
| 72615-0P010C0 |
GRX12# BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
GRX12# |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-0P010 |
GRX12# |
2 | ||
| 72704-0P010 |
GRX12# |
2 | ||
| 72704-0P010 |
GRX12# |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-0P010 |
GRX12# |
2 | ||
| 72704-0P010 |
GRX12# |
2 | ||
| 72704-0P010 |
GRX12# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0P010A1 |
GRX122..25 IVORY,TRIM0# |
1 | ||
| 72830-0P010C1 |
GRX122..25 BLACK,TRIM2# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-0P010C0 |
GRX12# BLACK,TRIM2# |
1 | ||
| 72868-0P010A0 |
GRX12# IVORY,TRIM0# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-30030 |
GRX12# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-30030 |
GRX12# |
1 | ||
| Common parts | ||||
| 72839-22010 | ||||
| 90105-C0111 | ||||
| 90109-08163 | ||||
| 90119-C0161 | ||||
| 90167-40044 | ||||
| 90167-C0003 | ||||
| 90176-04015 | ||||
| 90201-10069 | ||||
| 90386-10033 | ||||
| 90463-13003 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
| 93530-55012 | ||||
| 93567-14512 | ||||
| Linked diagrams | ||||
| 7104 | ||||
