GRX122L-AETQKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

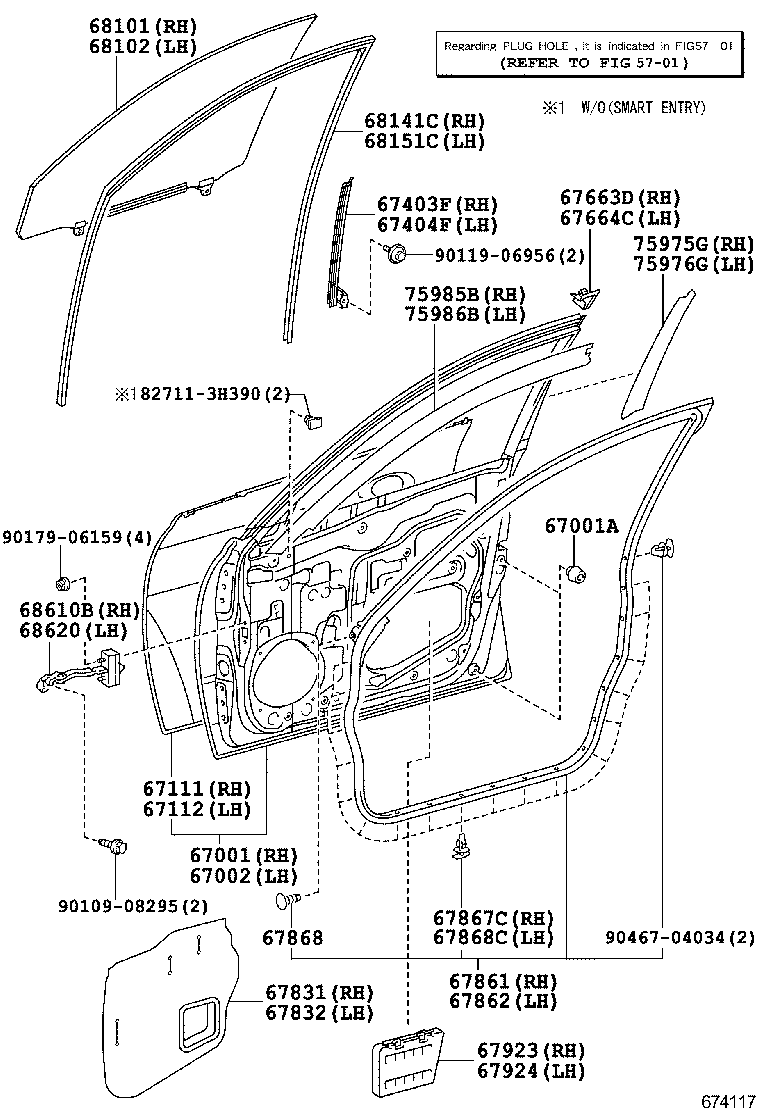

ILLUST NO. 1 OF 2(0510- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 67001 67001A 67002 67111 67112 67403F 67404F 67663D 67664C 67831 67832 67861 67862 67867C 67868 67868C 67923 67924 68101 68102 68141C 68151C 68610B 68620 75975G 75976G 75985B 75986B 827113H390 9010908295 9011906956 9017906159 9046704034
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0P010

GRX12#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069

GRX12#

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0P010

GRX12#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-0P010

GRX12#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-0P010

GRX12#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-0P010

GRX12#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-0P010

GRX12#

 1
67663D - GARNISH, DOOR FRAME, RH
67663-0P010

GRX12#

 1
67664C - GARNISH, DOOR FRAME, LH
67664-0P010

GRX12#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-22271

GRX12#

 1
67831-0P020

GRX12#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-22171

GRX12#

 1
67832-0P020

GRX12#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-0P010

GRX12#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-0P010

GRX12#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

GRX12#

 18
67868 - CLIP, FRONT DOOR GLASS WEATHERSTRIP
67868-30030

GRX12#

 2
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

GRX12#

 18
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-0P010

GRX12#

 1
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67924-0P010

GRX12#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-0P010

GRX12#

*UVCT,T=5.0,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-0P010

GRX12#

*UVCT,T=5.0,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-0P010

GRX12#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-0P010

GRX12#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-0P010

GRX12#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-0P010

GRX12#

 1
75975G - STRIPE, FRONT DOOR, NO.2 RH
75975-0P010

GRX12#

 1
75976G - STRIPE, FRONT DOOR, NO.2 LH
75976-0P010

GRX12#

 1
75985B - STRIPE, FRONT DOOR, NO.3 RH
75985-0P010

GRX12#

 1
75986B - STRIPE, FRONT DOOR, NO.3 LH
75986-0P010

GRX12#

 1
Common parts
82711-3H390
90109-08295
90119-06956
90179-06159
90467-04034
Linked diagrams
5701

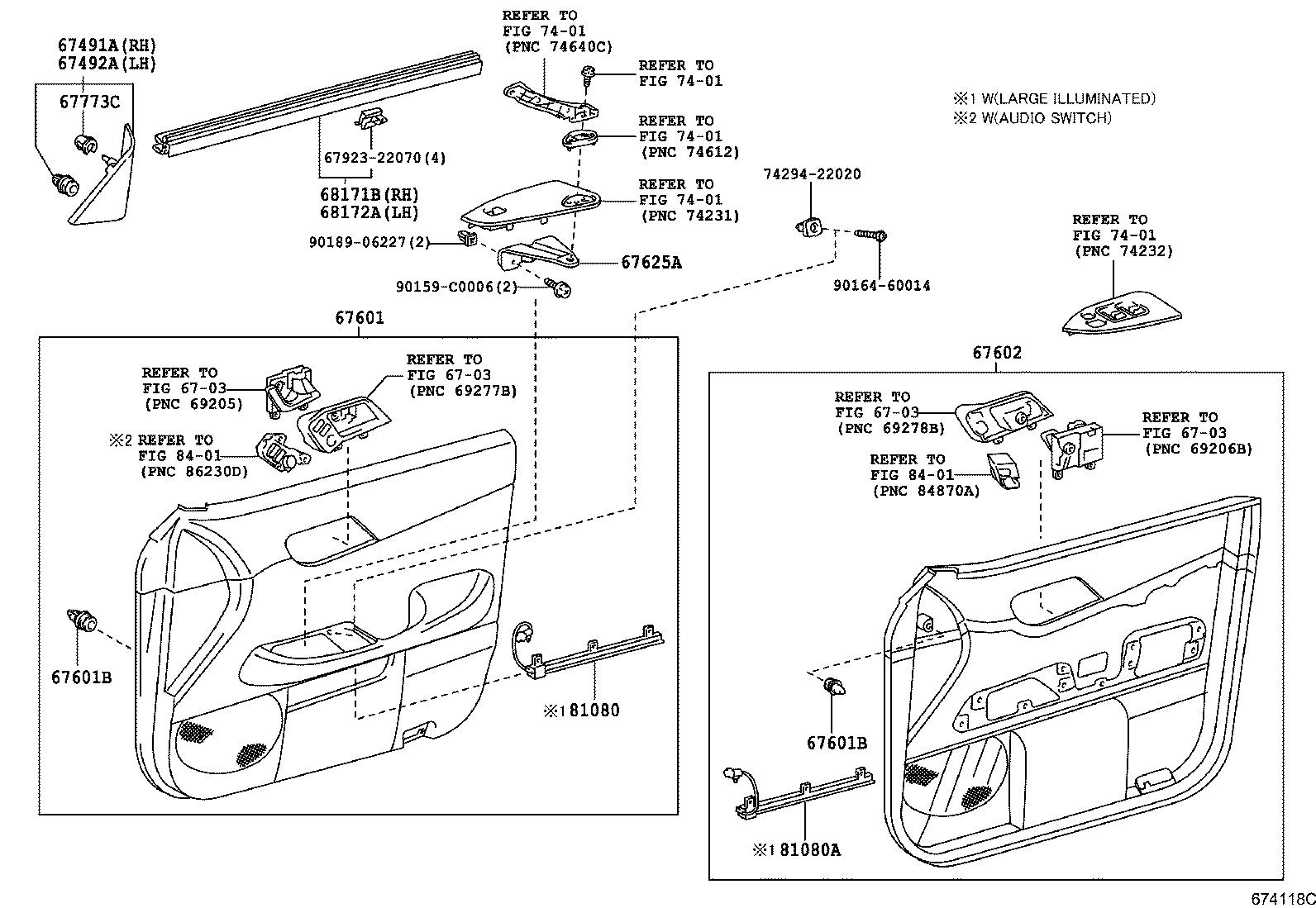

ILLUST NO. 2 OF 2(0510- )

Click highlighted areas on diagram

DOOR TRIM

diagram 6703 6703 6703 6703 67491A 67492A 67601 67601B 67601B 67602 67625A 67773C 6792322070 68171B 68172A 7401 7401 7401 7401 7401 7429422020 81080 81080A 8401 8401 90159C0006 9016460014 9018906227
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-0P010

GRX12#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-0P010

GRX12#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-0P050A0

GRX122..25

IVORY,TRIM0#

 1
67610-0P050C0

GRX122..25

BLACK,TRIM2#

 1
67610-0P051A0

GRX122..25

IVORY,TRIM0#

 1
67610-0P051C0

GRX122..25

BLACK,TRIM2#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

GRX12#

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

GRX12#

 16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-0P030A0

GRX122..25

IVORY,TRIM0#

 1
67620-0P031A0

GRX122..25

IVORY,TRIM0#

 1
67620-0P031C0

GRX122..25

BLACK,TRIM2#

 1
67620-0P030C0

GRX122..25

BLACK,TRIM2#

 1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67645-0P010

GRX12#

 1
67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1
67773-20040

GRX12#

 2
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-0P010

GRX12#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-0P010

GRX12#

 1
Common parts
67923-22070
74294-22020
90159-C0006
90164-60014
90189-06227
Linked diagrams
6703
7401
8401
