GRX121L-AETUKC (2005)
Toyota Reiz
Production
Oct 2005
-
Oct 2007
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0510- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

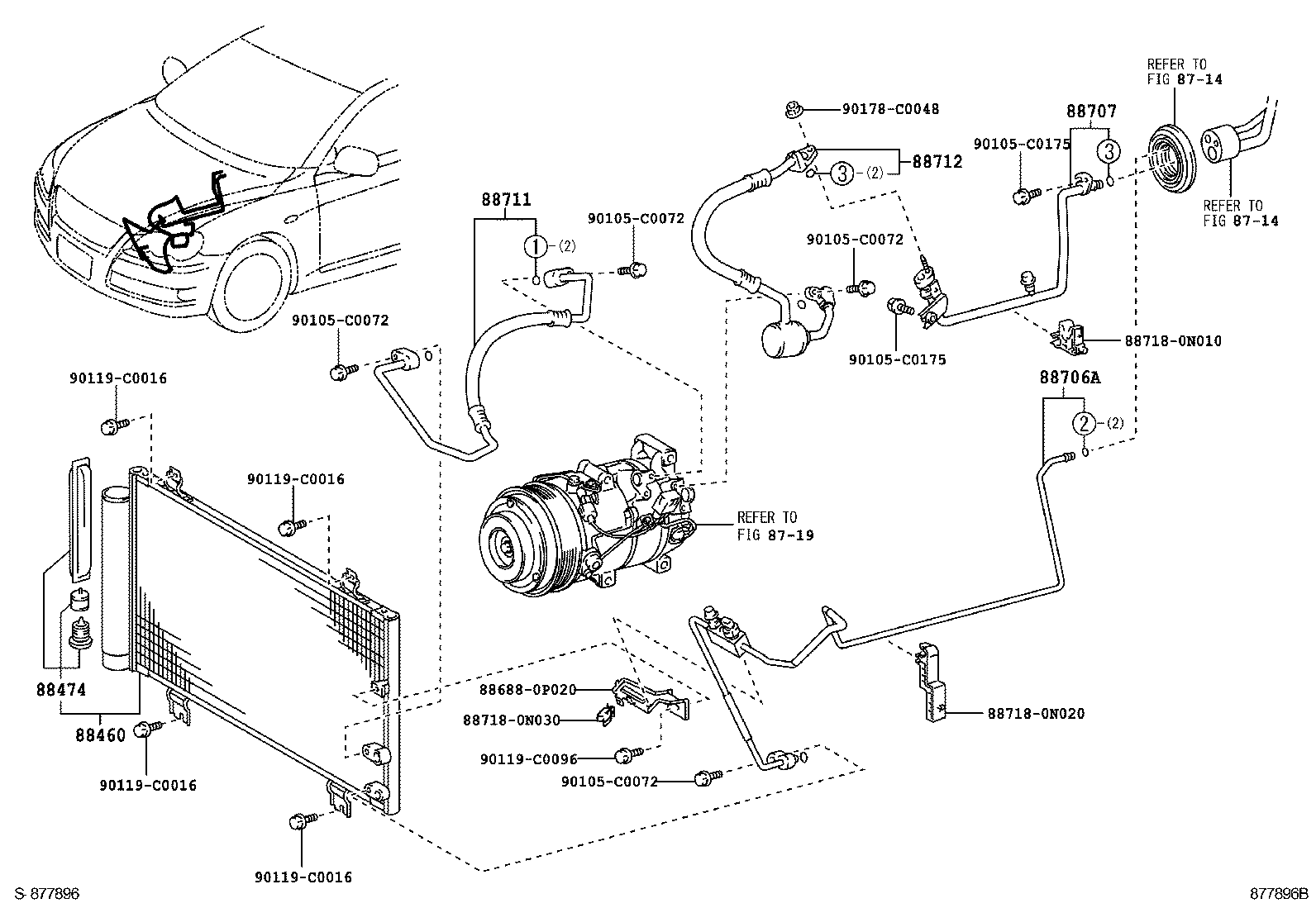

ILLUST NO. 1 OF 2(0510- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0P020 |
GRX12# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRX12# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-0P010 |
GRX12# |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-0P010 |
GRX12# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0P010 |
GRX12# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0N010 |
GRX12# |
1 | ||
| Common parts | ||||
| 88688-0P020 | ||||
| 88718-0N010 | ||||
| 88718-0N020 | ||||
| 88718-0N030 | ||||
| 90105-C0072 | ||||
| 90105-C0175 | ||||
| 90119-C0016 | ||||
| 90119-C0096 | ||||
| 90178-C0048 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
