GRX121L-AETUKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510- )

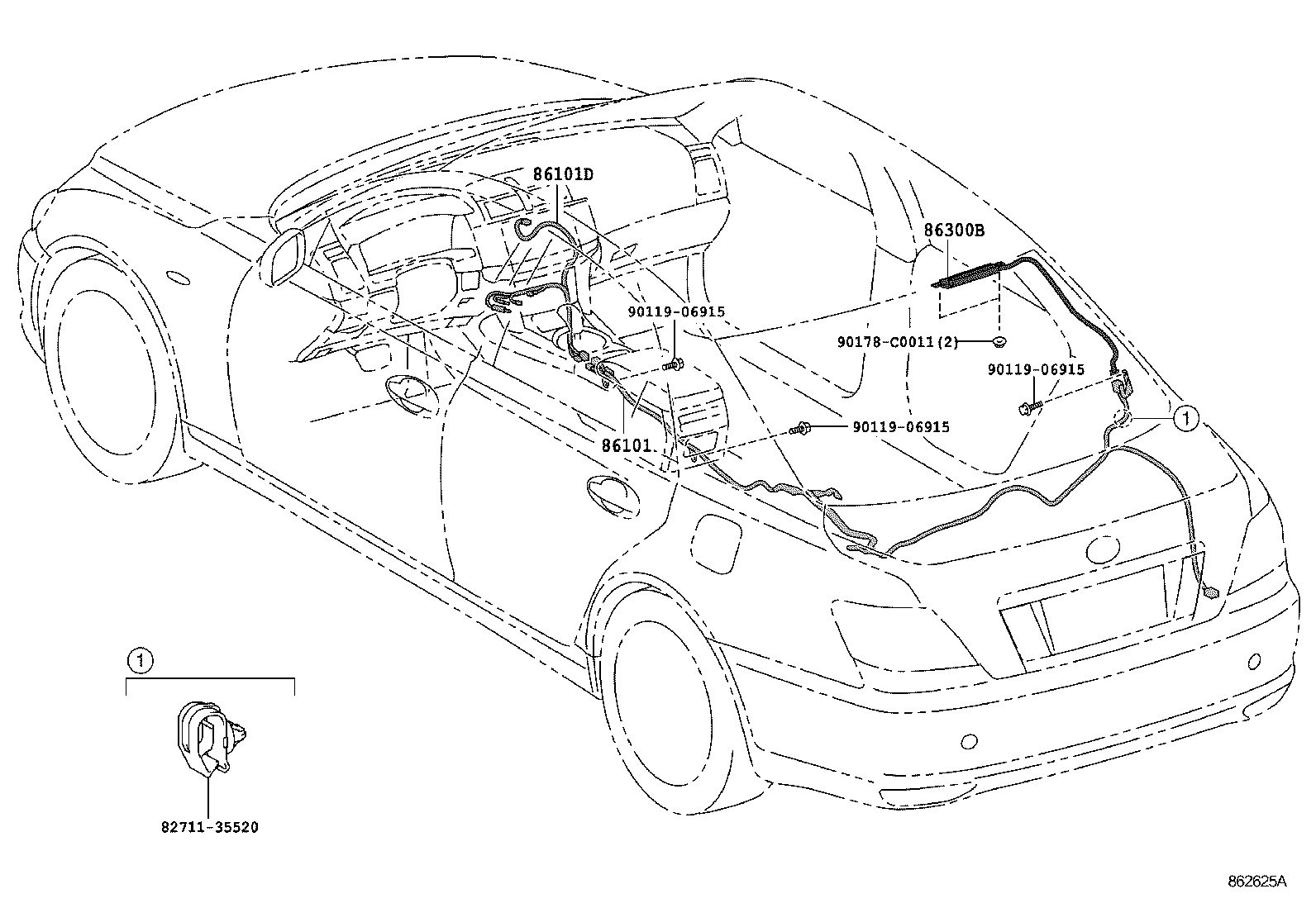

Click highlighted areas on diagram

diagram 8271135520 86101 86101D 86300B 9011906915 9011906915 9011906915 90178C0011
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0P010

GRX12#

 1
86101-0P020

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-0P030

GRX12#

 1
86101-0P040

GRX12#..25V,30V

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-22670

GRX12#

 1
Common parts
82711-35520
90119-06915
90178-C0011
