GRX121L-AETUKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510- )

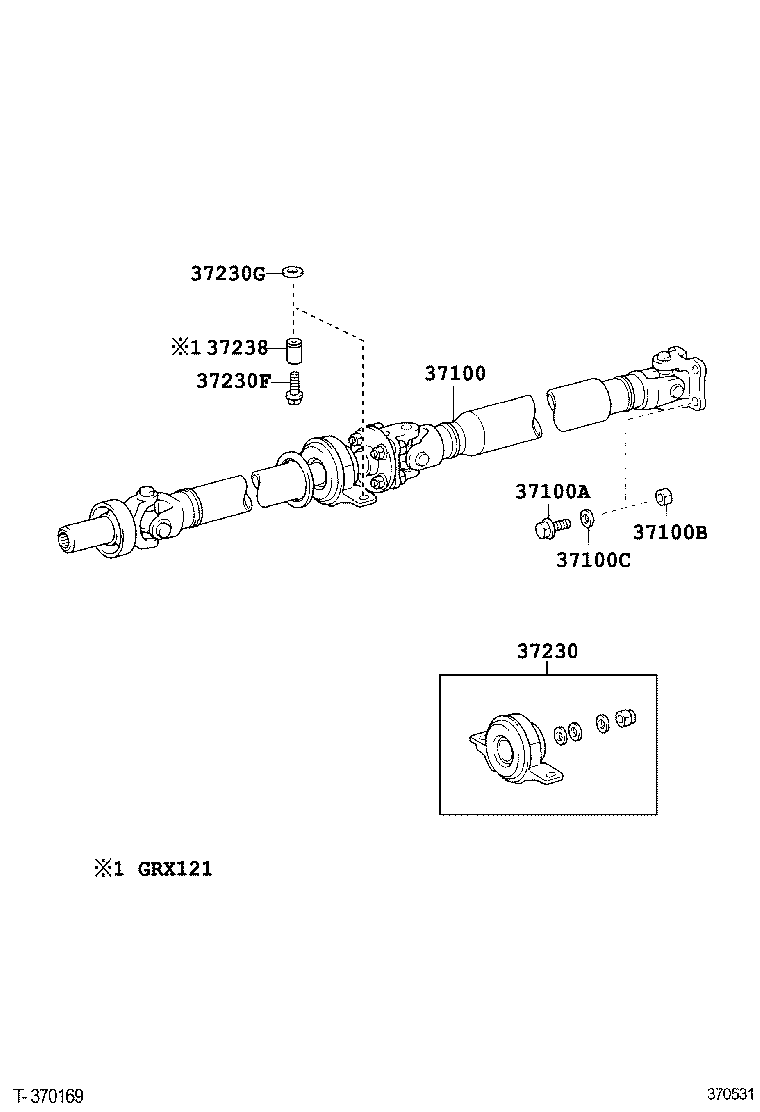

Click highlighted areas on diagram

diagram 37100 37100A 37100B 37100C 37230 37230F 37230G 37238
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-0N010

GRX12#

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-10466

GRX12#

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-10007

GRX12#

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90560-10102

GRX12#

 4
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-39095

GRX12#

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
91642-81065

GRX121

L=33

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10017

GRX12#

T=9.0

 2
90201-10033

GRX12#

T=6.5

 2
90201-10034

GRX12#

T=11.0

 2
90201-10008

GRX12#

T=4.5

 2
90201-10106

GRX12#

T=2.0

 2
37238 - DAMPER, CENTER SUPPORT BEARING
37238-30011

GRX121

 2
