GRX121L-AETUKC (2005)

Toyota Reiz

Production Oct 2005 - Oct 2007
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510- )

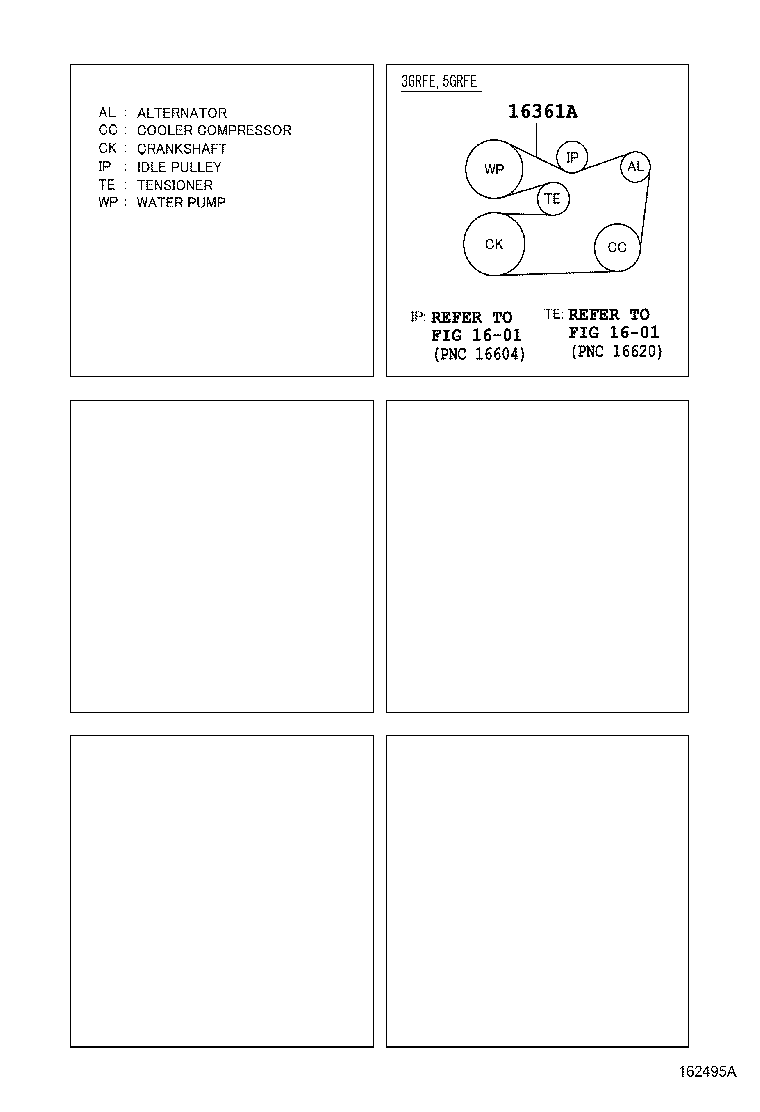

Click highlighted areas on diagram

diagram 1601 1601 16361A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-T2015

3GRFE,5GRFE..GRX12#

 1
Linked diagrams
1601
