AXAP52L-SNXXBC (2021)
Toyota Rav4 Phv
Production
Apr 2021
-
Sep 9999
Engine
A25FFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )
Click highlighted areas on diagram

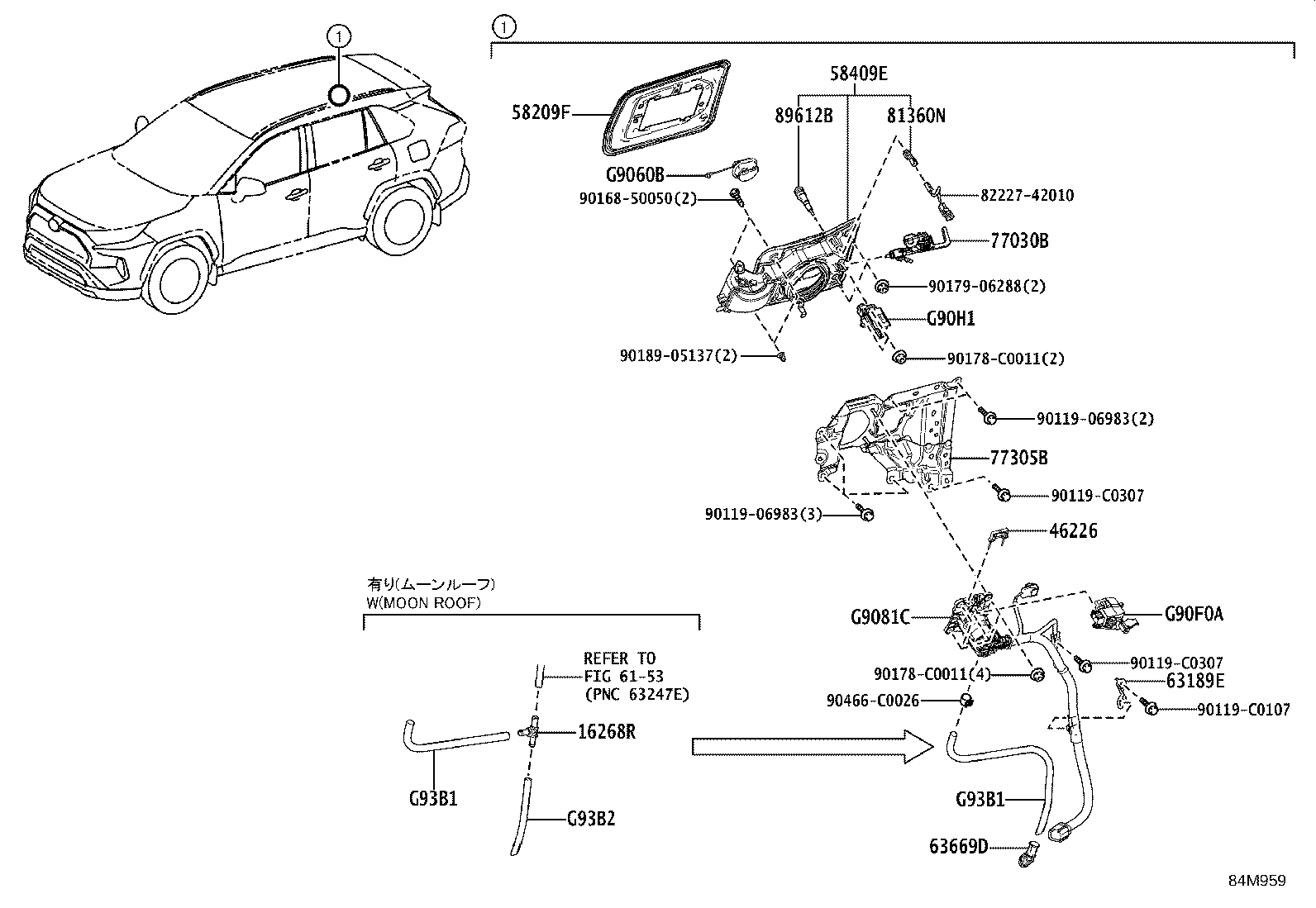

BATTERY CHARGER LID
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46226 - PIN, CONNECTOR | ||||
| 46226-47010 |
AXAP5# |
1 | ||
| 58209F - LID SUB-ASSY, BATTERY SERVICE OPENING | ||||
| 58209-0R040 |
AXAP5# |
1 | ||
| 58409E - LID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING | ||||
| 58409-0R010 |
AXAP5# |
1 | ||
| 63189E - BRACKET, WIRING HARNESS CONNECTOR | ||||
| 63189-0R010 |
AXAP5# |
1 | ||
| 63669D - GROMMET, DRAIN HOSE | ||||
| 63669-30040 |
AXAP5# |
1 | ||
| 77030B - LOCK ASSY, CHARGE LID W/MOTOR | ||||
| 77030-0R030 |
AXAP5# |
1 | ||
| 77305B - LID SUB-ASSY, EV CHARGER | ||||
| 77305-0R010 |
AXAP5# |
1 | ||
| 81360N - LAMP ASSY, SPOT | ||||
| 81360-0R010 |
AXAP5# |
1 | ||
| 89612B - LIFTER, PUSH | ||||
| 89612-42010 |
AXAP5# |
1 | ||
| G9060B - COVER, CONNECTOR | ||||
| 82821-0R150 |
AXAP5# |
1 | ||
| G9081C - CABLE, AC CHARGER INLET | ||||
| G9081-0R020 |
AXAP5# |
1 | ||
| G90F0A - LOCK ASSY, CABLE EV CHARGER | ||||
| G90F0-0R010 |
AXAP5# |
1 | ||
| G90H1 - INDICATOR , EV CHARGER LID | ||||
| G90H1-0R010 |
AXAP5# |
1 | ||
| G93B1 - HOSE, EV CHARGE CONNECTOR DRAIN, NO.1 | ||||
| G93B1-0R010 |
AXAP5#..G,X |
1 | ||
| G93B1 - HOSE, EV CHARGE CONNECTOR DRAIN, NO.1 | ||||
| G93B1-0R010 |
AXAP5#..G,X |
1 | ||
| Common parts | ||||
| 82227-42010 | ||||
| 90119-06983 | ||||
| 90119-C0107 | ||||
| 90119-C0307 | ||||
| 90168-50050 | ||||
| 90178-C0011 | ||||
| 90179-06288 | ||||
| 90189-05137 | ||||
| 90466-C0026 | ||||
(2104- )
Click highlighted areas on diagram

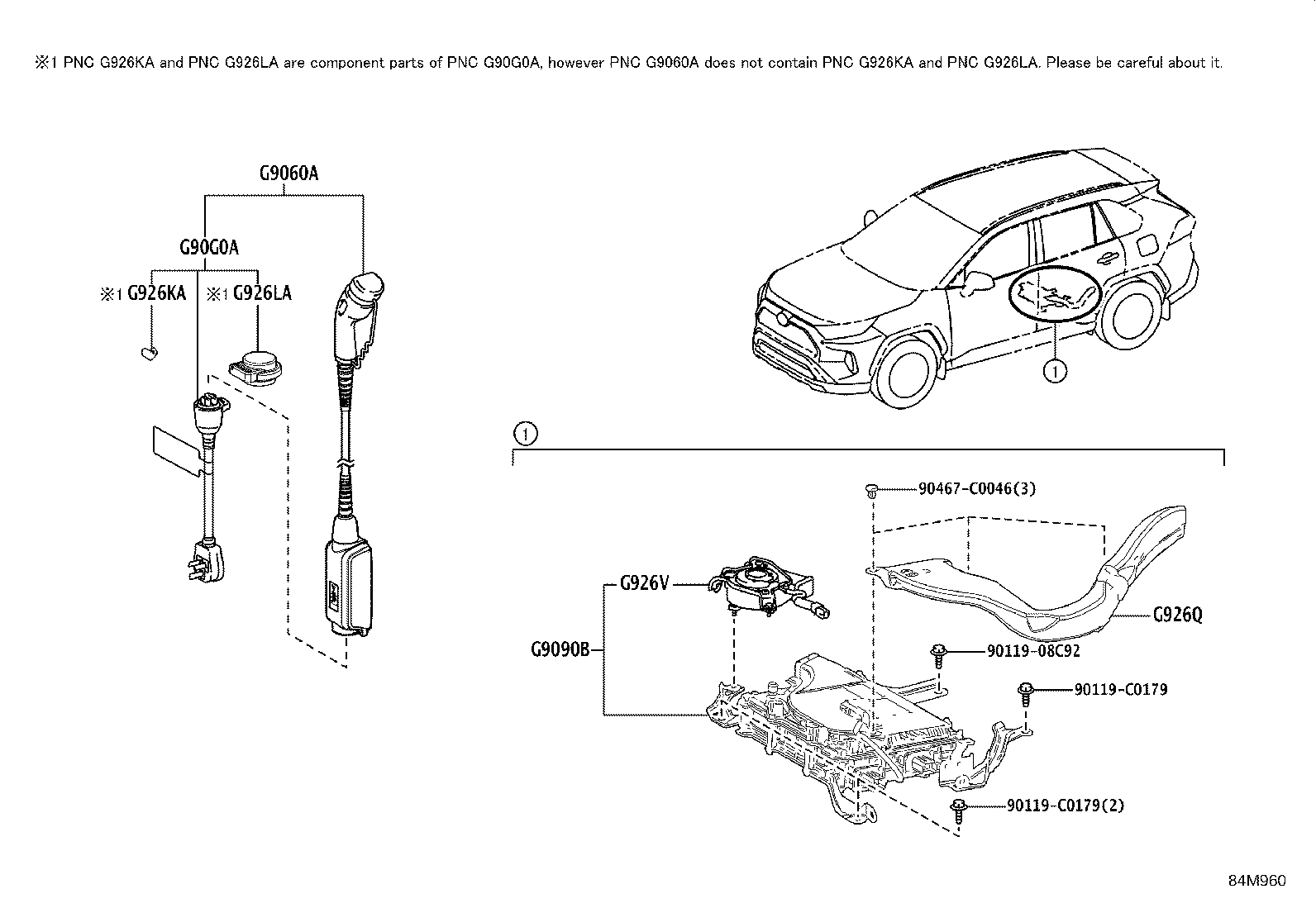

EV CHARGER & EV CHARGER CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9060A - CABLE ASSY, ELECTRIC VEHICLE CHARGER | ||||
| G9060-0R020 |
AXAP5# |
1 | ||
| G9090B - CHARGER ASSY, ELECTRIC VEHICLE | ||||
| G9099-0R010 |
AXAP52 |
1 | ||
| G90G0A - PLUG ASSY, CABLE EV CHARGER | ||||
| G90G0-12010 |
AXAP5# |
1 | ||
| G926KA - KEY, PLUG CABLE EV CHARGER | ||||
| G926K-47020 |
AXAP5# |
1 | ||
| G926LA - COVER, PLUG CABLE EV CHARGER | ||||
| G926L-47020 |
AXAP5# |
1 | ||
| G926Q - DUCT, EV CHARGER | ||||
| G926Z-0R010 |
AXAP5# |
1 | ||
| G926V - BLOWER, CHARGER COOLING | ||||
| G926V-0R010 |
AXAP5# |
1 | ||
| Common parts | ||||
| 90119-08C92 | ||||
| 90119-C0179 | ||||
| 90467-C0046 | ||||
(2104- )
Click highlighted areas on diagram

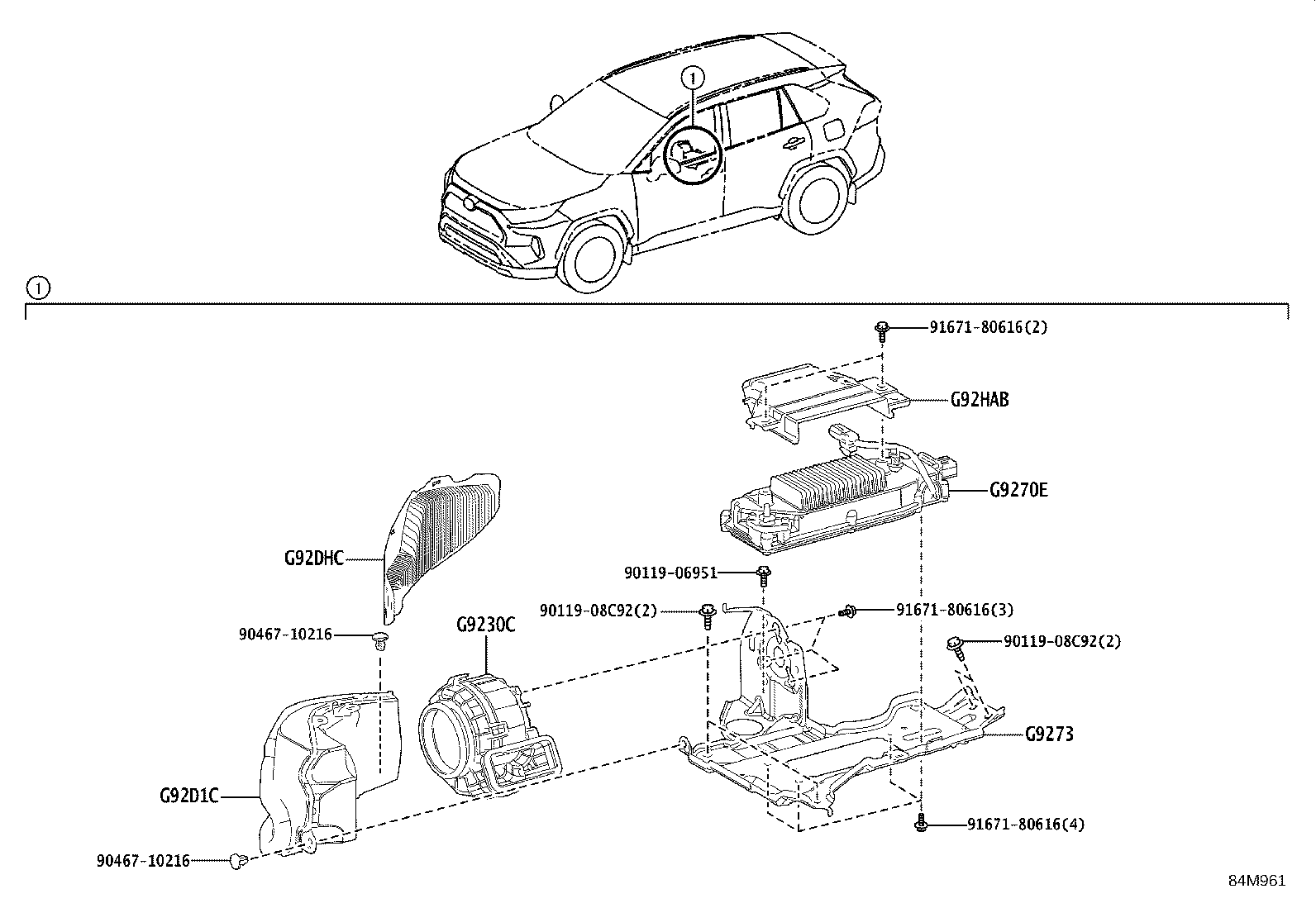

DC/DC CONVERTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9230C - BLOWER ASSY, DC/DC CONVERTER COOLING | ||||
| G9230-06010 |
AXAP5# |
1 | ||
| G9270E - DC/DC CONVERTER ASSY | ||||
| G9270-42060 |
AXAP5# |
1 | ||
| G9273 - BRACKET, DC/DC CONVERTER | ||||
| G9273-42010 |
AXAP5# |
1 | ||
| G92D1C - DUCT, DC/DC CONVERTER INTAKE, NO.1 | ||||
| G92D1-0R020 |
AXAP5# |
1 | ||
| G92DHC - FILTER, DC/DC CONVERTER INTAKE, NO.1 | ||||
| G92DH-42010 |
AXAP5# |
1 | ||
| G92HAB - DUCT, DC/DC CONVERTER COOLING EXHAUST | ||||
| G92HA-0R010 |
AXAP5# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-08C92 | ||||
| 90467-10216 | ||||
| 91671-80616 | ||||
