AXAP52L-SNXXBC (2021)

Toyota Rav4 Phv

Production Apr 2021 - Sep 9999
Engine A25FFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

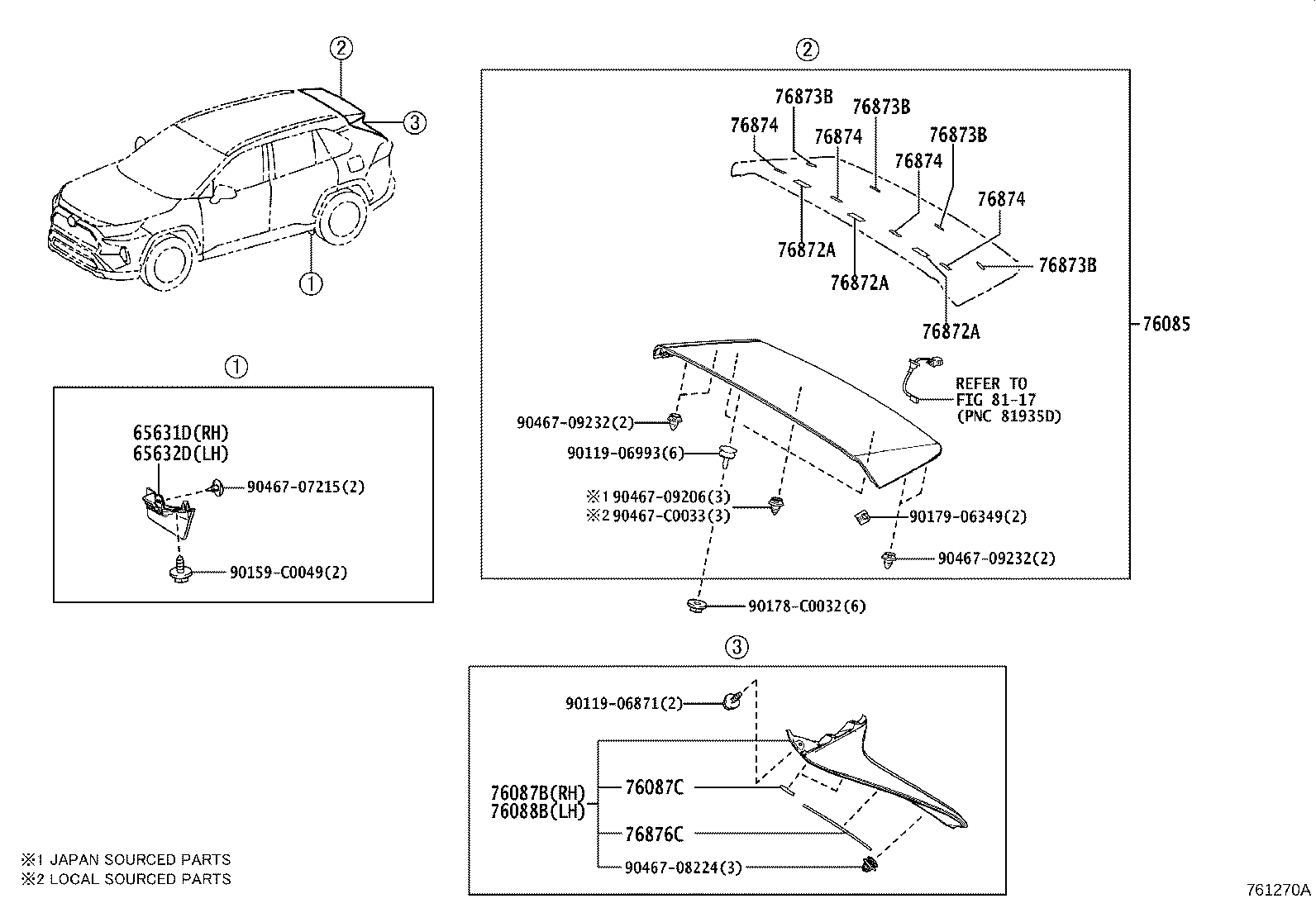

Click highlighted areas on diagram

diagram 65631D 65632D 76085 76087B 76087C 76088B 76872A 76872A 76872A 76873B 76873B 76873B 76873B 76874 76874 76874 76874 76876C 8117 9011906871 9011906993 90159C0049 90178C0032 9017906349 9046707215 9046708224 9046709206 9046709232 9046709232 90467C0033
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-0R090

AXAP5#

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-0R090

AXAP5#

 1
76085 - SPOILER SUB-ASSY, REAR
76085-0R903

AXAP5#

PAINT REQ.

 1
76087B - SPOILER SUB-ASSY, REAR SIDE, RH
76087-0R040

AXAP52

 1
76087C - PROTECTOR, REAR SIDE SPOILER
87268-0R060

AXAP5#

 4
76088B - SPOILER SUB-ASSY, REAR SIDE, LH
76088-0R040

AXAP52

 1
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-0R060

AXAP5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-0R060

AXAP5#

 3
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-0R060

AXAP5#

 3
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-0R070

AXAP5#

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-0R070

AXAP5#

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-0R070

AXAP5#

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-0R070

AXAP5#

 4
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-0R060

AXAP5#

 4
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-0R060

AXAP5#

 4
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-0R060

AXAP5#

 4
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-0R060

AXAP5#

 4
76876C - PROTECTOR, REAR SPOILER, NO.4
76875-0R060

AXAP5#

 2
Common parts
90119-06871
90119-06993
90159-C0049
90178-C0032
90179-06349
90467-07215
90467-08224
90467-09206
90467-09232
90467-C0033
Linked diagrams
8117
