Toyota Rav4 phv AXAP52 SEAT BELT

AXAP52L-SNXXBC (2021)

Toyota Rav4 Phv

Production Apr 2021 - Sep 9999

Engine A25FFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

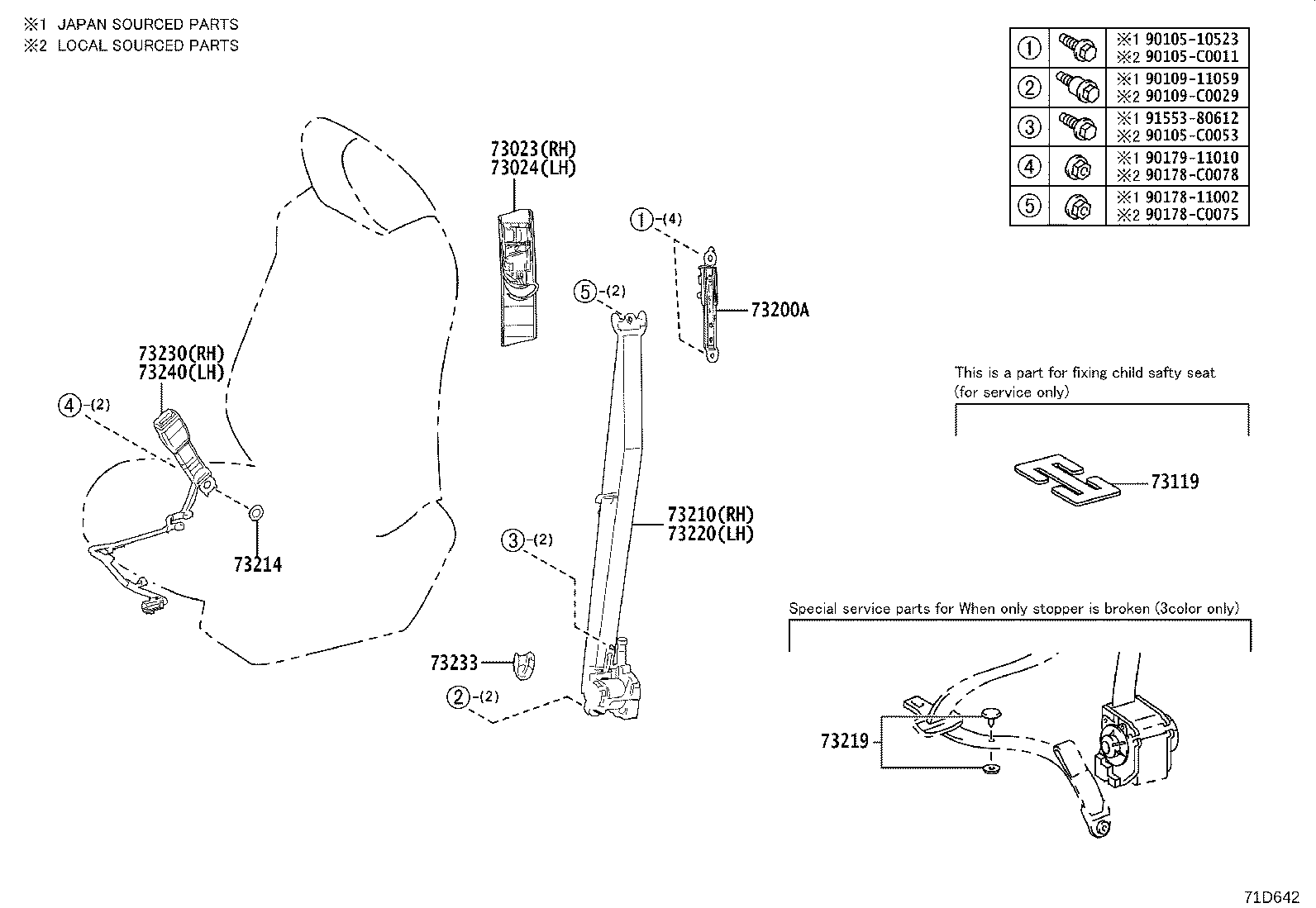

FRONT SEAT

Part #	Description	Period	Qty
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-02160B0	AXAP5# LT.GRAY,TRIM2#	04/2021 - 12/2999	1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-02160B0	AXAP5# LT.GRAY,TRIM2#	04/2021 - 12/2999	1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010	AXAP5#	04/2021 - 12/2999	1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-0G020	AXAP5#	04/2021 - 12/2999	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-02760C2	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010	AXAP5#	04/2021 - 12/2999	2
73219 - STOPPER, TONGUE PLATE
73219-33020	AXAP5# GRAY	04/2021 - 12/2999	1
73219-33030	AXAP5# BEIGE	04/2021 - 12/2999	1
73219-33010	AXAP5# BLACK	04/2021 - 12/2999	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-02680C2	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0R190C0	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-0R030C1	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0R280C0	AXAP52..X BLACK,TRIM2#	04/2021 - 12/2999	1
Common parts
90105-10523
90105-C0011
90105-C0053
90109-11059
90109-C0029
90178-11002
90178-C0075
90178-C0078
90179-11010
91553-80612

Click highlighted areas on diagram

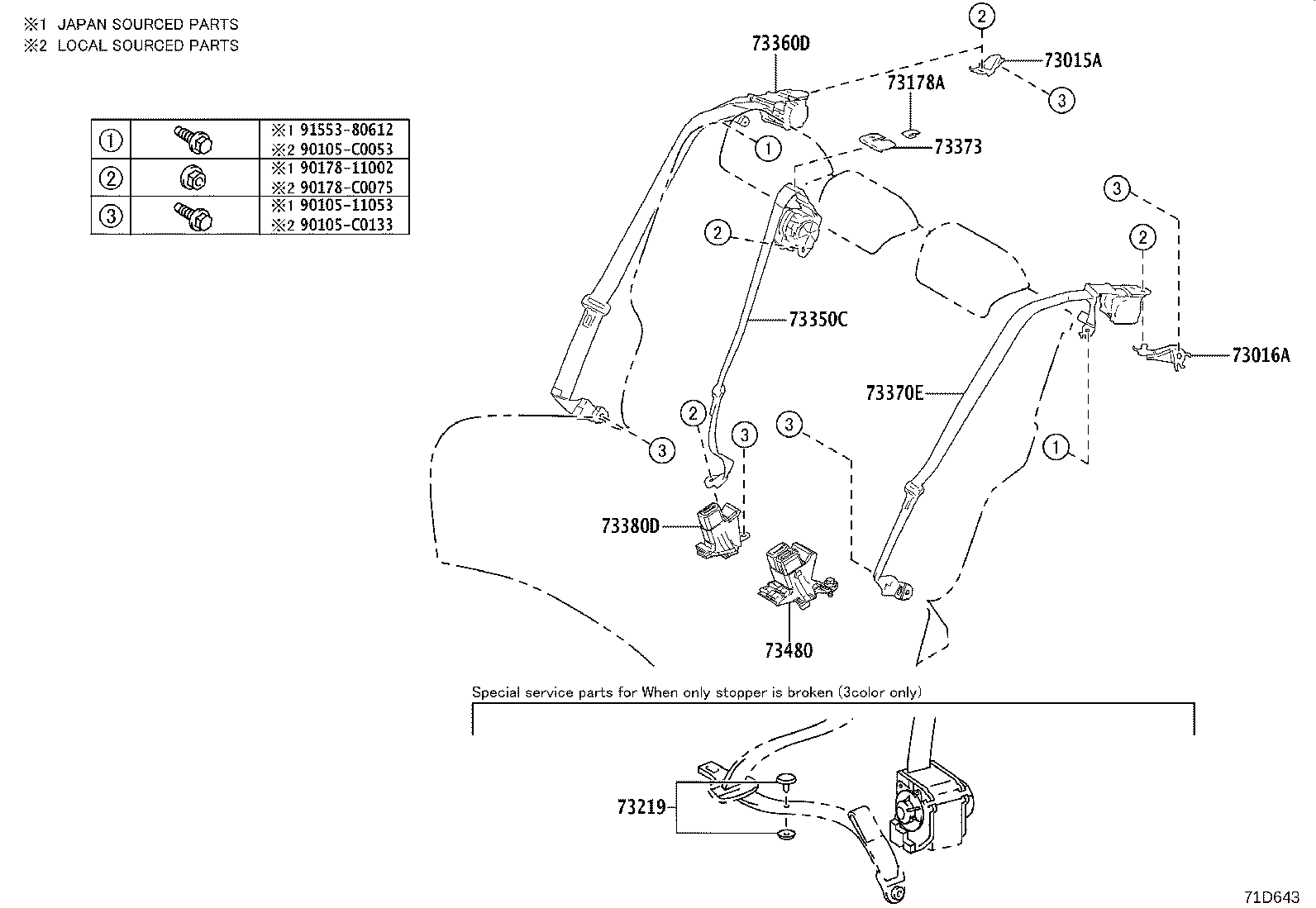

REAR SEAT

Part #	Description	Period	Qty
73015A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH
73015-0R020	AXAP5#	04/2021 - 12/2999	1
73016A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH
73016-0R020	AXAP5#	04/2021 - 12/2999	1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-0R040C0	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
73219 - STOPPER, TONGUE PLATE
73219-33020	AXAP5# GRAY	04/2021 - 12/2999	1
73219-33030	AXAP5# BEIGE	04/2021 - 12/2999	1
73219-33010	AXAP5# BLACK	04/2021 - 12/2999	1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-0R030C0	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
73360D - BELT ASSY, REAR SEAT, OUTER RH
73360-0R091C0	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
73370E - BELT ASSY, REAR SEAT, OUTER LH
73370-0R091C0	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-0R020C0	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
73380D - BELT ASSY, REAR SEAT, INNER
73380-0R090C0	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-0R030C0	AXAP5# BLACK,TRIM2#	04/2021 - 12/2999	1
Common parts
90105-11053
90105-C0053
90105-C0133
90178-11002
90178-C0075
91553-80612
