AXAP52L-SNXXBC (2021)

Toyota Rav4 Phv

Production Apr 2021 - Sep 9999
Engine A25FFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

Click highlighted areas on diagram

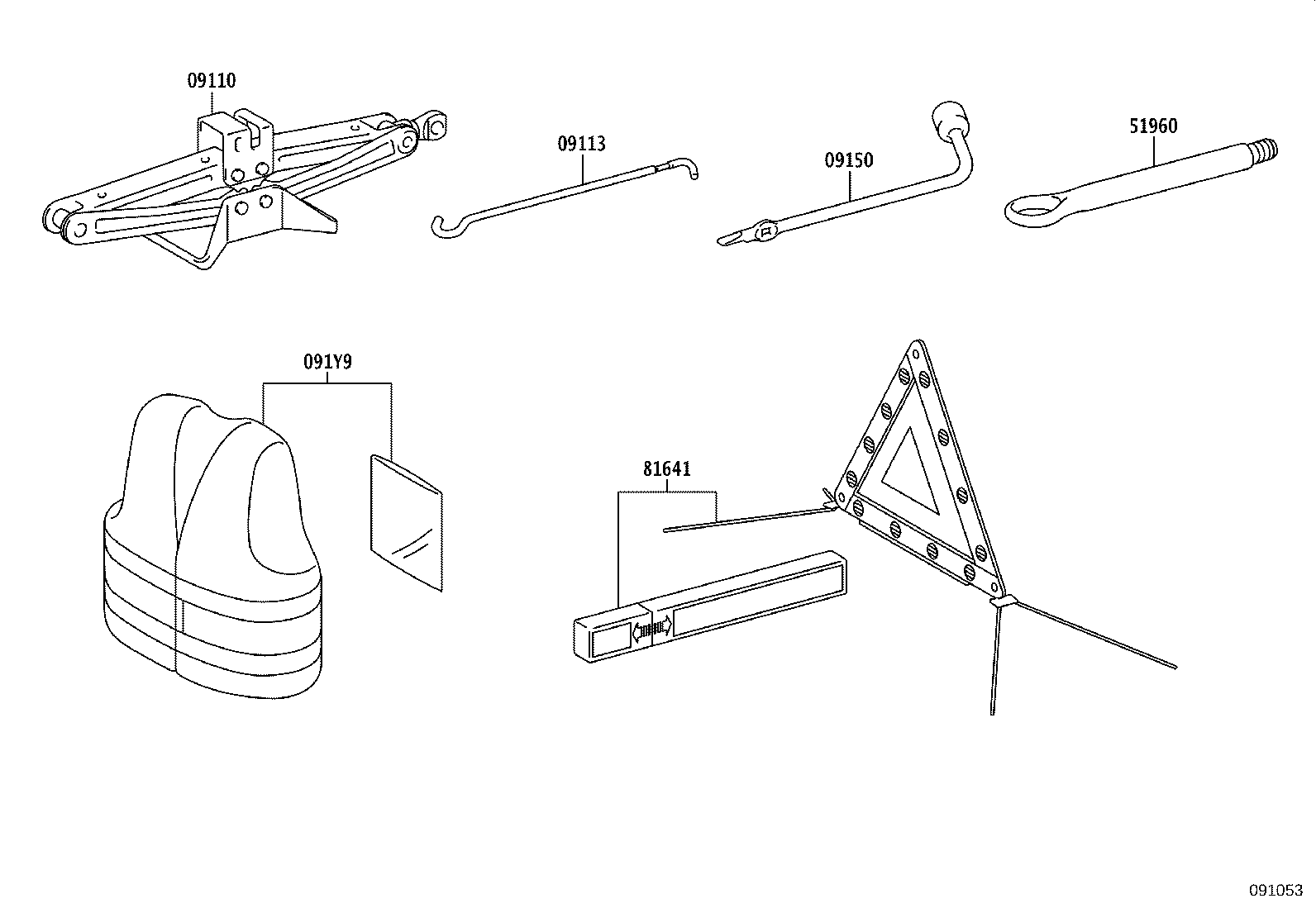

diagram 09110 09113 09150 091Y9 51960 81641
Part # Description Qty Price
09110 - JACK ASSY
09111-0E040

AXAP5#

 1
09113 - HANDLE, JACK
09113-0R030

AXAP5#

 1
09150 - WRENCH, HUB NUT BOX
09150-0R020

AXAP5#

 1
091Y9 - JACKET, W/REFLECTOR
091Y9-0R010

AXAP5#

 1
51960 - HOOK ASSY, FRONT
51961-0R060

AXAP5#

 2
81641 - REFLECTOR, TRIANGLE
81604-02030

AXAP5#

 1
