AXAP52L-SNXMBC (2021)

Toyota Rav4 Phv

Production Apr 2021 - Sep 9999
Engine A25FFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

Click highlighted areas on diagram

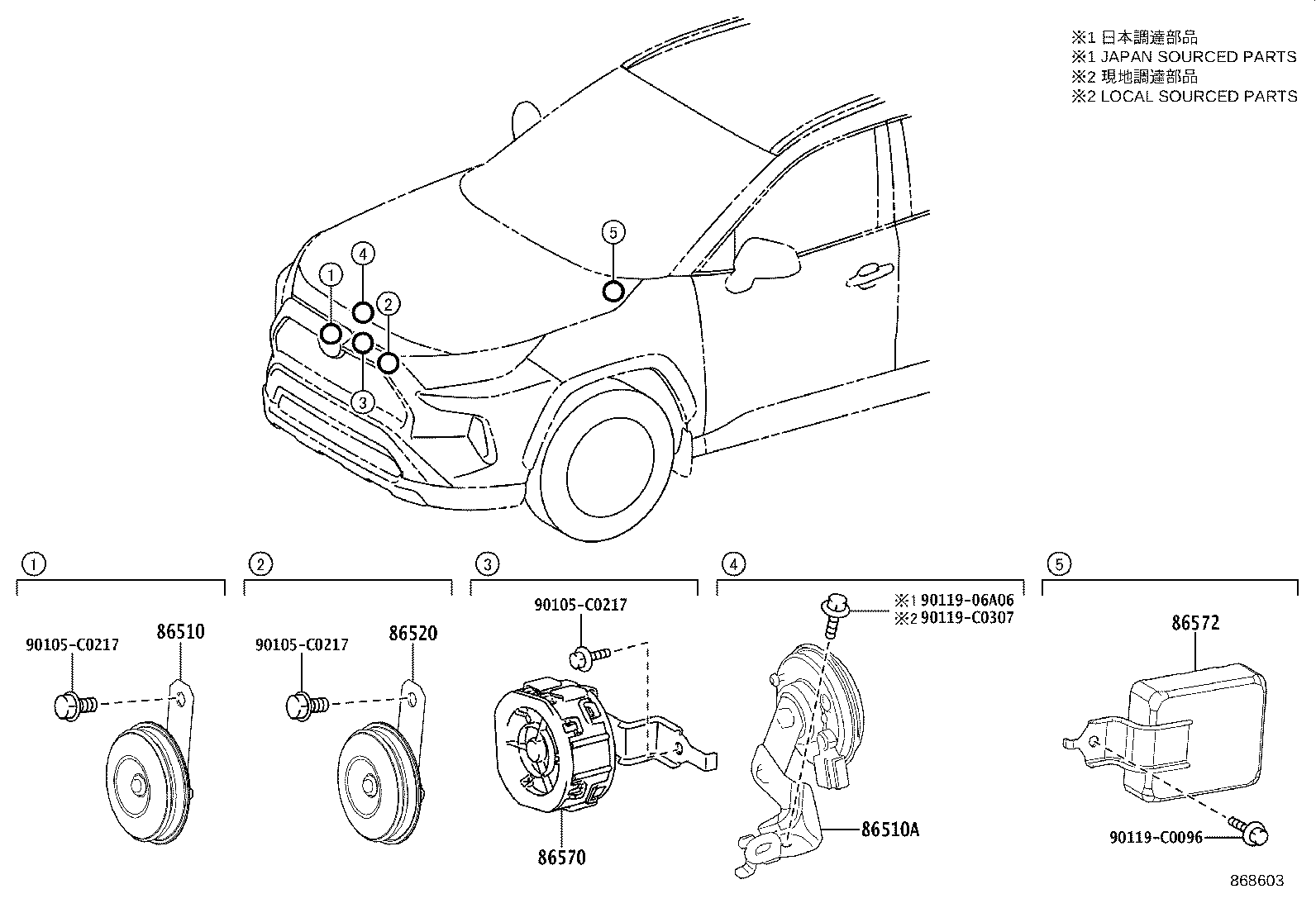

diagram 86510 86510A 86520 86570 86572 90105C0217 90105C0217 90105C0217 9011906A06 90119C0096 90119C0307
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-0R041

AXAP5#

 1
86510A - HORN ASSY, SECURITY
86560-07030

AXAP5#..G,M

 1
86520 - HORN ASSY, LOW PITCHED
86520-0R041

AXAP5#

 1
86570 - SPEAKER ASSY, VEHICLE APPROACHING
86570-0R010

AXAP5#

 1
86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER
86572-0R030

AXAP5#

 1
Common parts
90105-C0217
90119-06A06
90119-C0096
90119-C0307
