AXAP52L-SNXMBC (2021)

Toyota Rav4 Phv

Production Apr 2021 - Sep 9999
Engine A25FFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

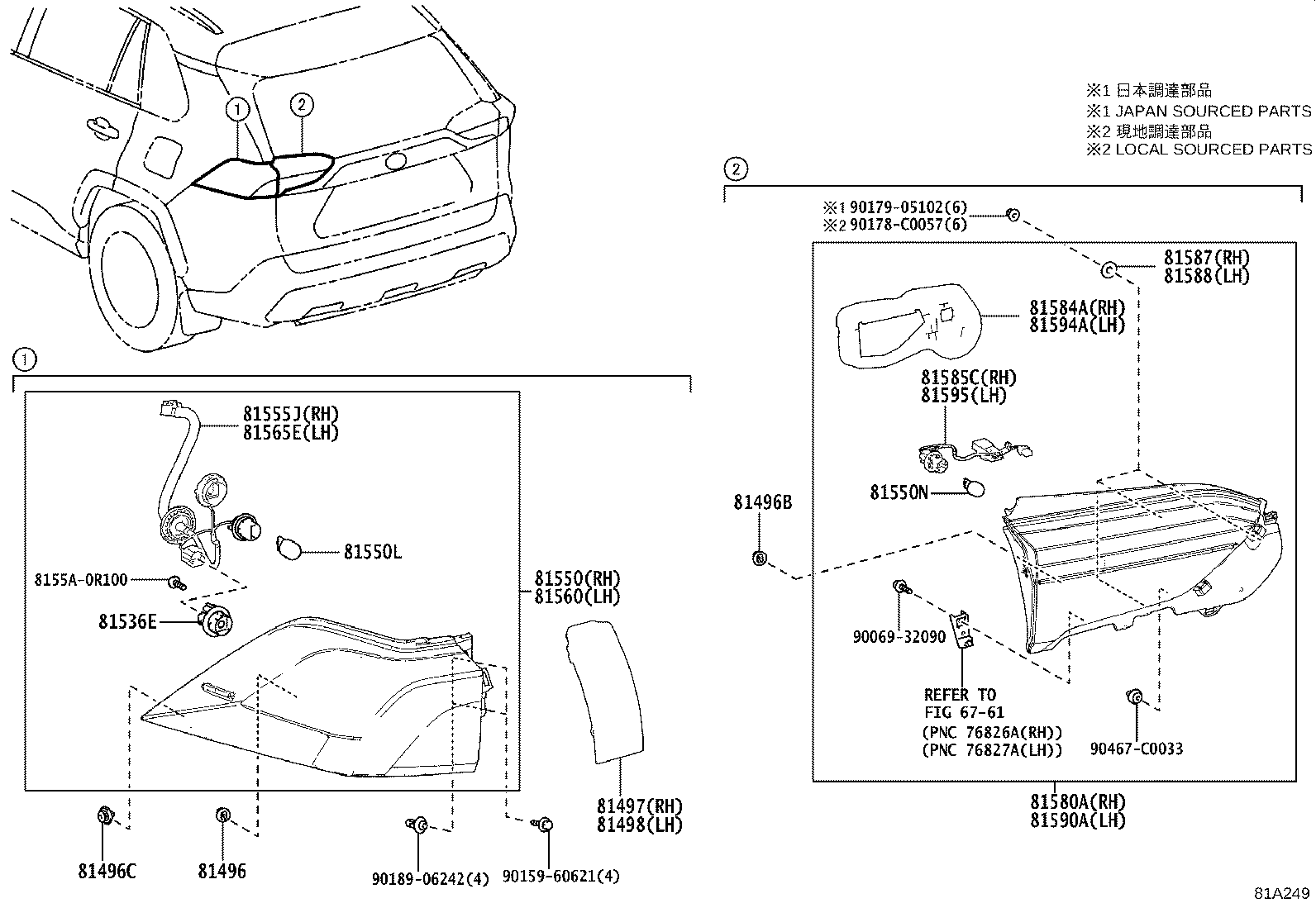

Click highlighted areas on diagram

diagram 6761 81496 81496B 81496C 81497 81498 81536E 81550 81550L 81550N 81555J 8155A0R100 81560 81565E 81580A 81584A 81585C 81587 81588 81590A 81594A 81595 9006932090 9015960621 90178C0057 9017905102 9018906242 90467C0033
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-02020

AXAP5#

(L)

 2
81496-52020

AXAP5#

(J)

 2
81496B - GUIDE, REAR LAMP
81496-52020

AXAP5#

(J)

 2
81496-02020

AXAP5#

(L)

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
90467-C0019

AXAP5#

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-0R020

AXAP5#

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-0R020

AXAP5#

 1
81536E - LED, STOP LAMP
81536-0R100

AXAP5#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0R100

AXAP5#

 1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

AXAP5#

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

AXAP5#

12V 16W

 2
81555J - SOCKET & WIRE, REAR COMBINATION LAMP, RH
81555-0R100

AXAP5#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0R100

AXAP5#

 1
81565E - SOCKET & WIRE, REAR COMBINATION LAMP, LH
81555-0R100

AXAP5#

 1
81580A - LAMP ASSY, REAR
81580-0R070

AXAP5#

 1
81584A - GASKET, REAR LAMP RH
81584-0R070

AXAP5#

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-0R070

AXAP5#

 1
81587 - PROTECTOR, REAR LAMP, RH
81588-0R070

AXAP5#

 3
81588 - PROTECTOR, REAR LAMP, LH
81588-0R070

AXAP5#

 3
81590A - LAMP ASSY, REAR, LH
81590-0R070

AXAP5#

 1
81594A - GASKET, REAR LAMP LH
81594-0R070

AXAP5#

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-0R070

AXAP5#

 1
Common parts
8155A-0R100
90069-32090
90159-60621
90178-C0057
90179-05102
90189-06242
90467-C0033
