AXAP52L-SNXMBC (2021)

Toyota Rav4 Phv

Production Apr 2021 - Sep 9999
Engine A25FFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

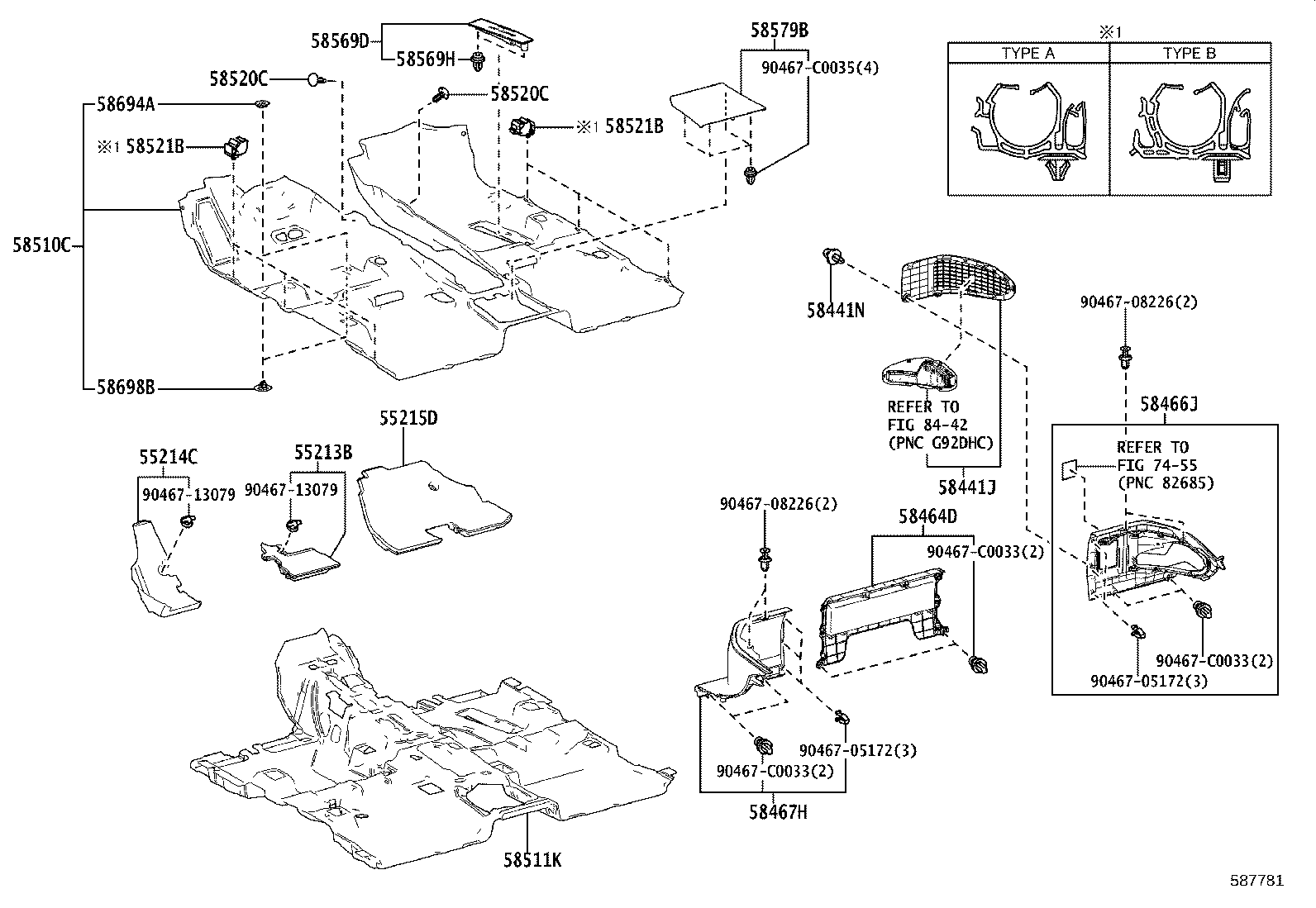

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58441J 58441N 58464D 58466J 58467H 58510C 58511K 58520C 58520C 58521B 58521B 58569D 58569H 58579B 58694A 58698B 7455 8442 9046705172 9046705172 9046708226 9046708226 9046713079 9046713079 90467C0033 90467C0033 90467C0033 90467C0035
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-0R050

AXAP5#

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0R090

AXAP5#

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0R050

AXAP5#

 1
58441J - COVER, BATTERY SERVICE HOLE
58441-0R050C0

AXAP5#

BLACK,TRIM2#

 1
58441N - CLIP(FOR BATTERY SERVICE HOLE COVER)
90467-06165C3

AXAP5#

BLACK,TRIM2#

 1
58464D - BOARD, BATTERY SERVICE COVER
58464-0R050C0

AXAP5#

BLACK,TRIM2#

 1
58466J - BOARD, BATTERY SERVICE COVER, NO.2
58466-0R020C0

AXAP5#

BLACK,TRIM2#

 1
58467H - BOARD, BATTERY SERVICE COVER, NO.3
58467-0R050C0

AXAP5#

BLACK,TRIM2#

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-0R110C0

AXAP5#

BLACK,TRIM2#

 1
58511K - MAT, FLOOR, NO.1
58511-0R080

AXAP5#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-C0016C1

AXAP5#

BLACK,TRIM2#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-C0016C1

AXAP5#

BLACK,TRIM2#

 2
58521B - HOOK, FLOOR CARPET
58521-33060

AXAP5#

TYPE A

 6
58521-33070

AXAP5#

TYPE B

 6
58521B - HOOK, FLOOR CARPET
58521-33060

AXAP5#

TYPE A

 6
58521-33070

AXAP5#

TYPE B

 6
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-0R030C0

AXAP5#

BLACK,TRIM2#

 1
58569H - CLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
62217-13010

AXAP5#

 2
58579B - PAD, REAR FLOOR
58579-0R010C1

AXAP5#

BLACK,TRIM2#

 1
58694A - PLATE, MAT SET, UPPER
58694-33010

AXAP5#

 2
58698B - PLATE, MAT SET, LOWER
58698-33010

AXAP5#

 2
Common parts
90467-05172
90467-08226
90467-13079
90467-C0033
90467-C0035
Linked diagrams
7455
8442

(2104- )

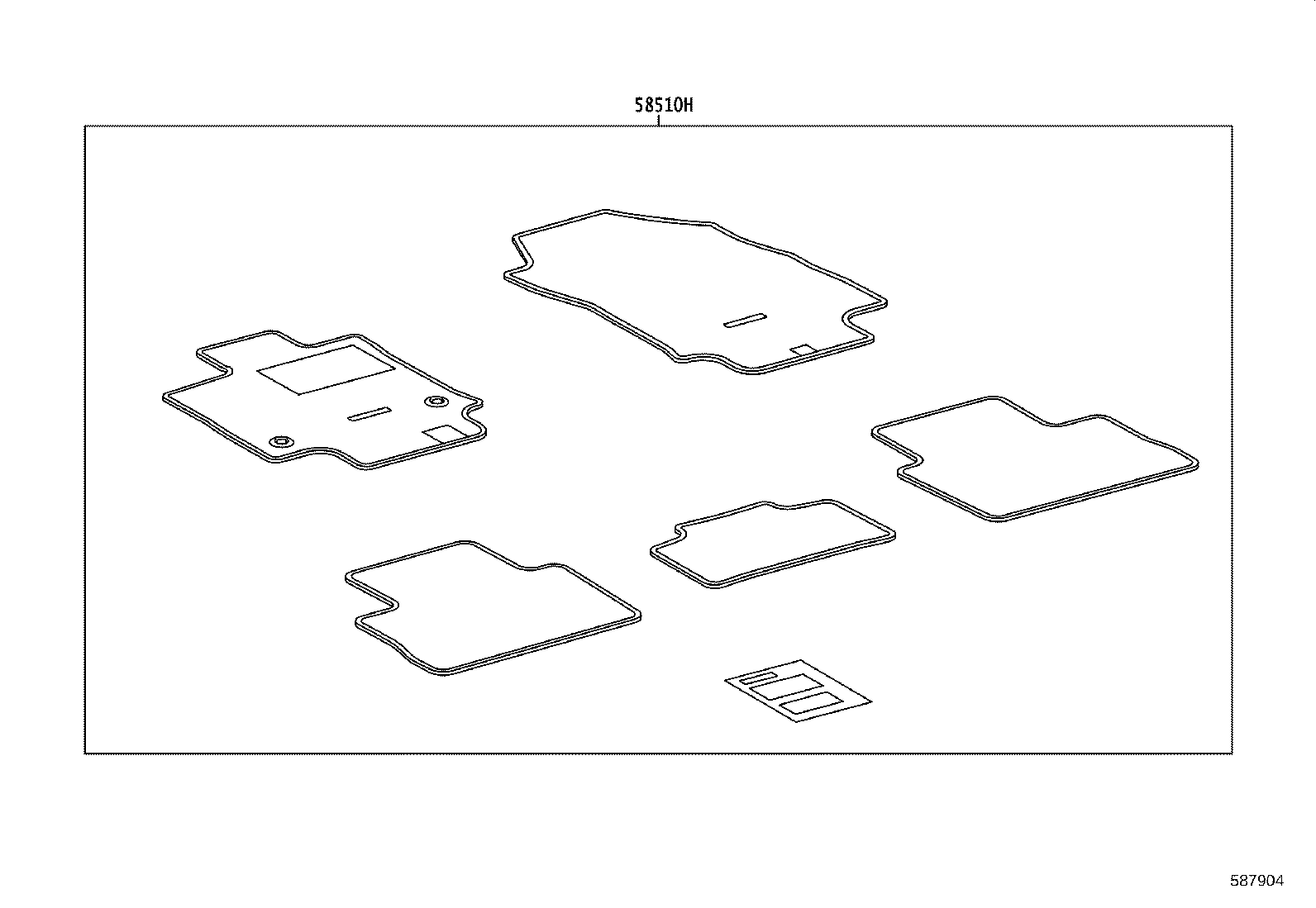

Click highlighted areas on diagram

diagram 58510H
Part # Description Qty Price
58510H - MAT ASSY, FLOOR
58500-YY270C0

AXAP5#

ACCESSORY MAT-WITH,BLACK,TRIM2#

 1
