AXAP52L-SNXMBC (2021)

Toyota Rav4 Phv

Production Apr 2021 - Sep 9999
Engine A25FFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

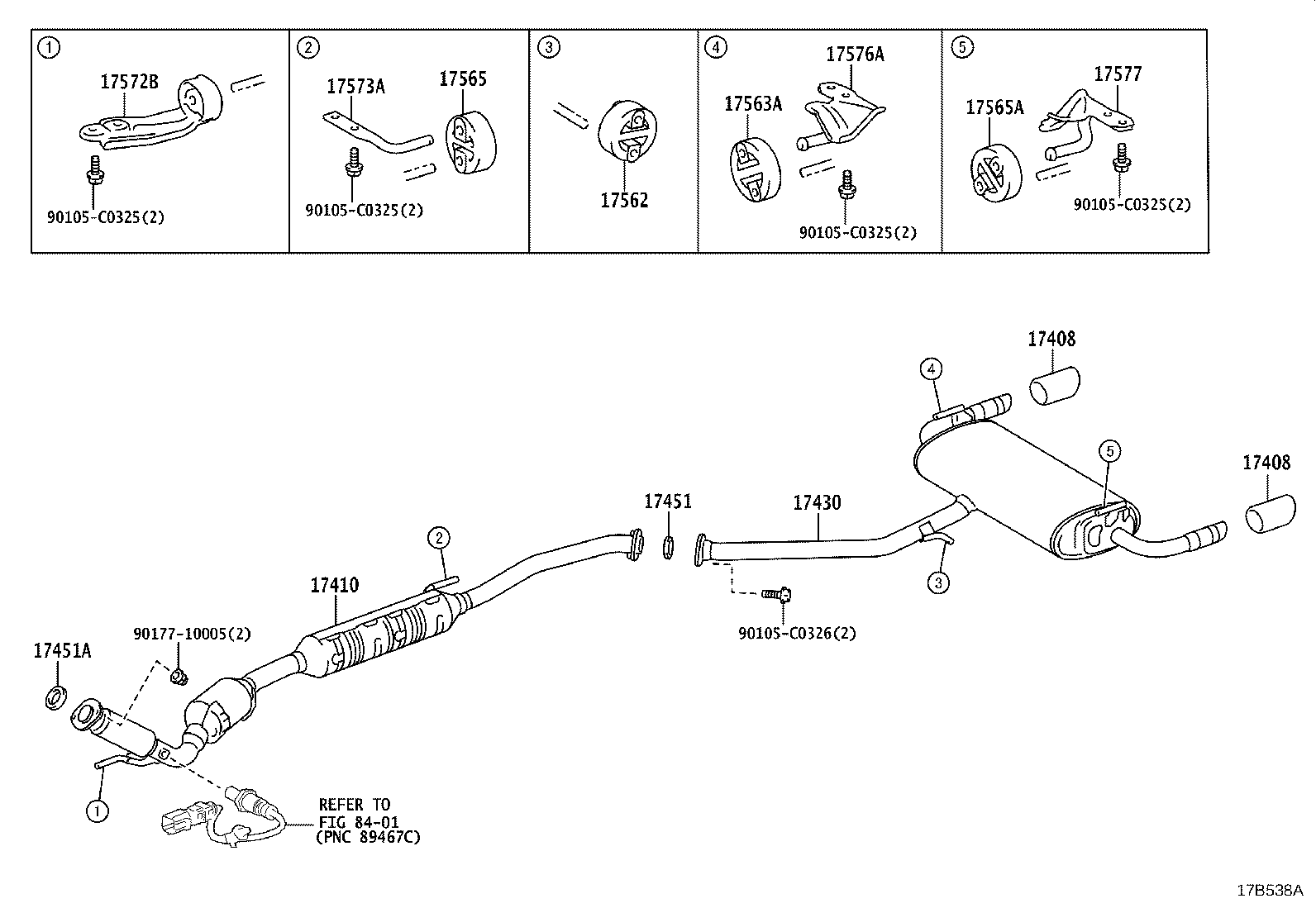

Click highlighted areas on diagram

diagram 17408 17408 17410 17430 17451 17451A 17562 17563A 17565 17565A 17572B 17573A 17576A 17577 90105C0325 90105C0325 90105C0325 90105C0325 90105C0326 9017710005
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-F0050

A25FFXS..AXAP52..X

 2
17408-F0010

A25FFXS..AXAP5#..G,M

 2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-F0050

A25FFXS..AXAP52..X

 2
17408-F0010

A25FFXS..AXAP5#..G,M

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-F0360

A25FFXS..AXAP5#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-F0262

A25FFXS..AXAP5#

 1
17451 - GASKET, EXHAUST PIPE
17451-F0140

A25FFXS..AXAP5#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-C6003

A25FFXS..AXAP5#

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0D080

A25FFXS..AXAP5#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0D080

A25FFXS..AXAP5#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T011

A25FFXS..AXAP5#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D080

A25FFXS..AXAP5#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-F0060

A25FFXS..AXAP5#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-F0090

A25FFXS..AXAP5#

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-F0071

A25FFXS..AXAP5#

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-F0061

A25FFXS..AXAP5#

 1
Common parts
90105-C0325
90105-C0326
90177-10005
