AXAP52L-SNXMBC (2021)

Toyota Rav4 Phv

Production Apr 2021 - Sep 9999
Engine A25FFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

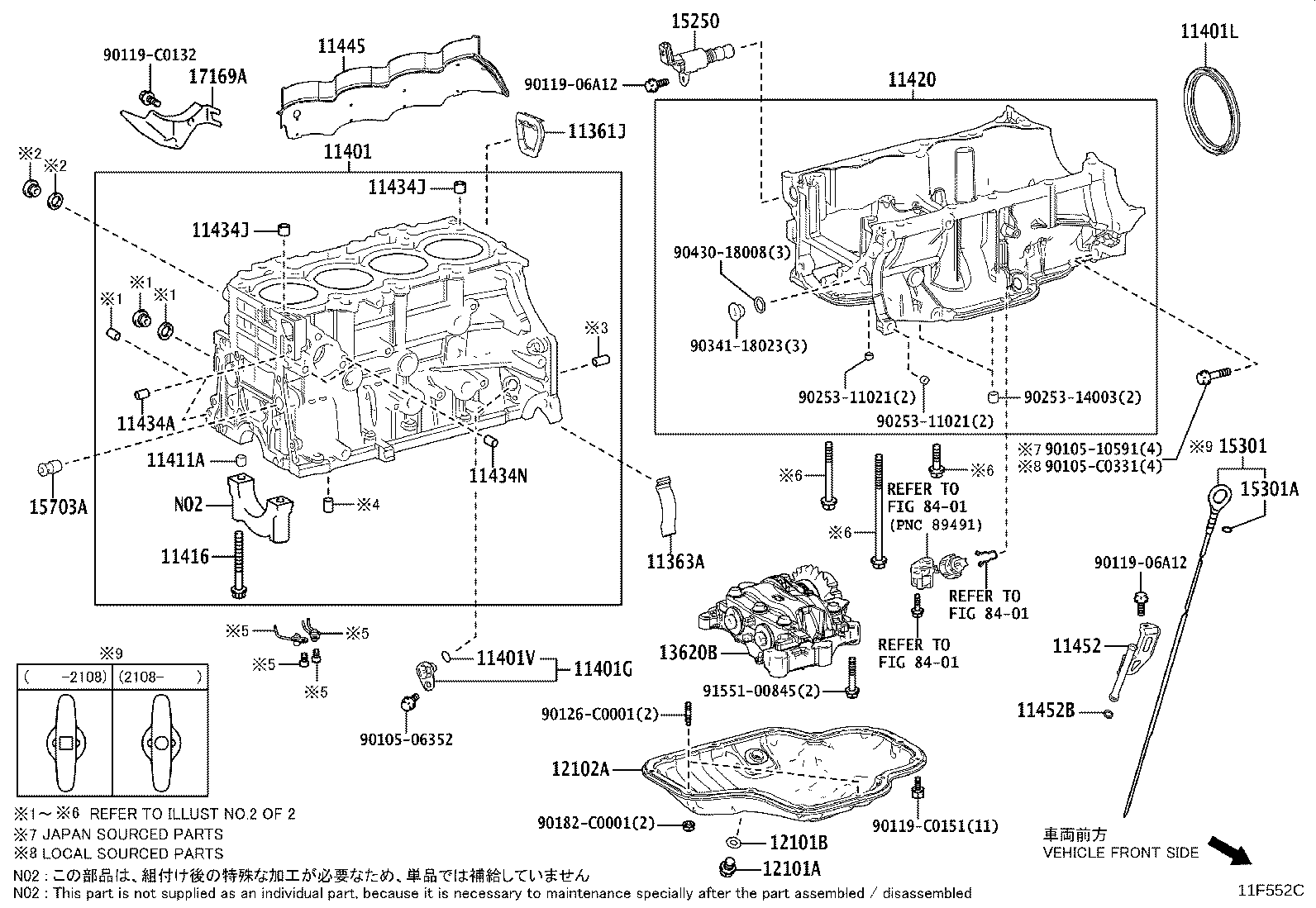

ILLUST NO. 1 OF 2(2104- )

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401G 11401L 11401V 11411A 11416 11420 11434A 11434J 11434J 11434N 11445 11452 11452B 12101A 12101B 12102A 13620B 15250 15301 15301A 15703A 17169A 8401 8401 8401 9010506352 9010510591 90105C0331 9011906A12 9011906A12 90119C0132 90119C0151 90126C0001 90182C0001 9025311021 9025311021 9025314003 9034118023 9043018008 9155100845
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-25010

A25FFXS..AXAP5#

(J)

 1
11361-F2030

A25FFXS..AXAP5#

(L)

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-33010

A25FFXS..AXAP5#

(J)

 1
11363-F2030

A25FFXS..AXAP5#

(L)

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29505

A25FFXS..AXAP5#

(J)

 1
11401G - SENSOR, CRANK POSITION
90919-05095

A25FFXS..AXAP5#

 1
11401L - SEAL, ENGINE REAR OIL
90311-C0055

A25FFXS..AXAP5#

 1
11401V - O-RING, CRANK POSITION SENSOR
90301-11039

A25FFXS..AXAP5#

 1
11411A - PIN, RING(FOR CYLINDER BLOCK NO.1 )
90253-14003

A25FFXS..AXAP5#

 10
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02197

A25FFXS..AXAP5#

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-25010

A25FFXS..AXAP5#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

A25FFXS..AXAP5#

L=14,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-C0007

A25FFXS..AXAP5#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-C0007

A25FFXS..AXAP5#

 2
11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING)
90250-06003

A25FFXS..AXAP5#

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-25010

A25FFXS..AXAP5#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-25010

A25FFXS..AXAP5#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010

A25FFXS..AXAP5#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-C0013

A25FFXS..AXAP5#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-C0005

A25FFXS..AXAP5#

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-25010

A25FFXS..AXAP5#

 1
13620B - BALANCER ASSY, ENGINE
13620-25010

A25FFXS..AXAP5#

 1
15250 - VALVE ASSY, OIL PRESSURE CONTROL
15250-25010

A25FFXS..AXAP5#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-25030

A25FFXS..AXAP5#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

A25FFXS..AXAP5#

 1
15703A - VALVE SUB-ASSY, OIL NOZZLE
15703-25011

A25FFXS..AXAP5#

 1
17169A - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-25030

A25FFXS..AXAP5#

 1
Common parts
90105-06352
90105-10591
90105-C0331
90119-06A12
90119-C0132
90119-C0151
90126-C0001
90182-C0001
90253-11021
90253-14003
90341-18023
90430-18008
91551-00845
Linked diagrams
8401

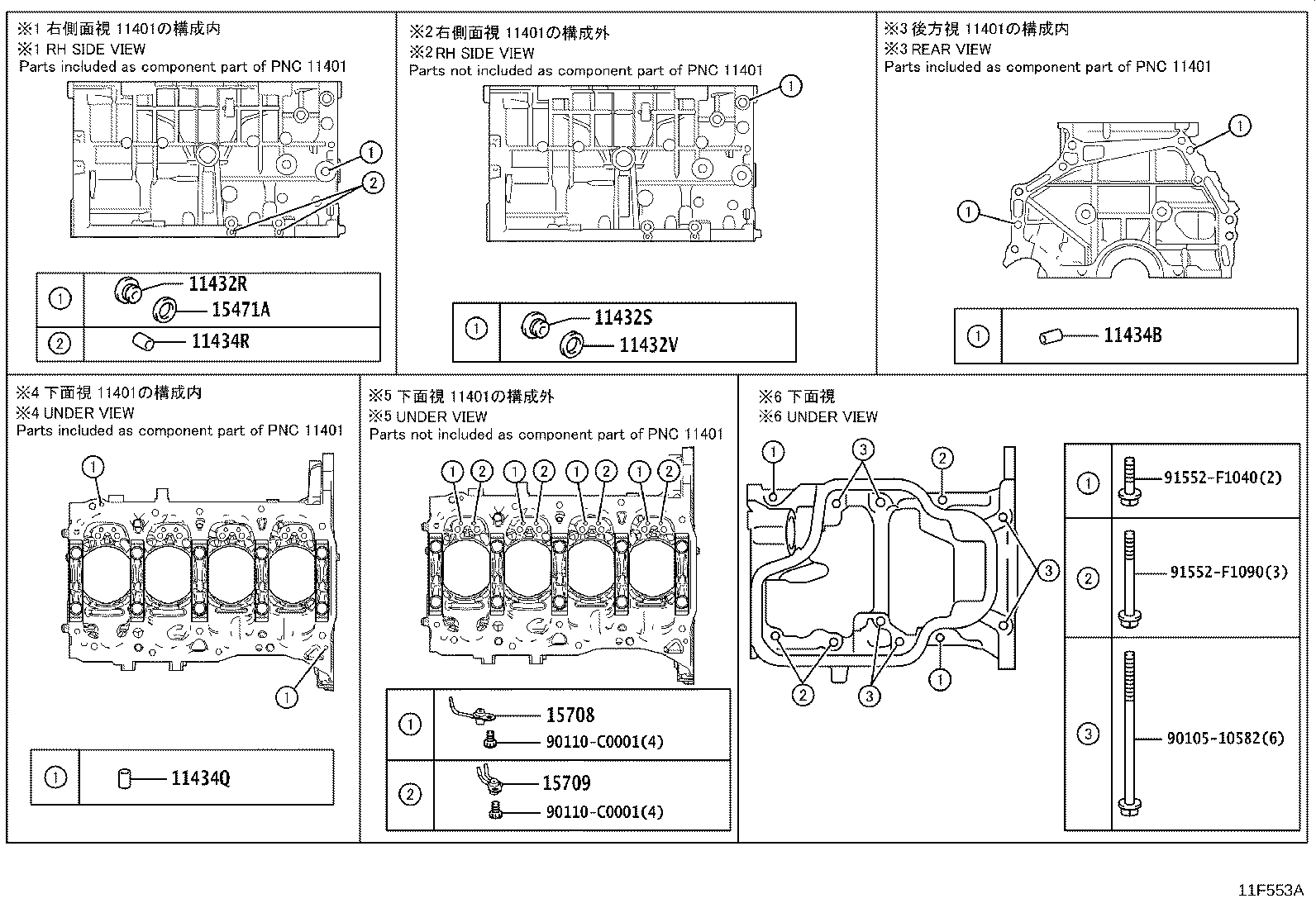

ILLUST NO. 2 OF 2(2104- )

Click highlighted areas on diagram

diagram 11432R 11432S 11432V 11434B 11434Q 11434R 15471A 15708 15709 9010510582 90110C0001 90110C0001 91552F1040 91552F1090
Part # Description Qty Price
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-18023

A25FFXS..AXAP5#

 1
11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
90341-12012

A25FFXS..AXAP5#

 1
11432V - GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)
90430-12031

A25FFXS..AXAP5#

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-C0012

A25FFXS..AXAP5#

L=22,OD=10

 2
11434Q - PIN, STRAIGHT(FOR CRANKCASE)
90250-06003

A25FFXS..AXAP5#

L=14,OD=6

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

A25FFXS..AXAP5#

 2
15471A - GASKET(FOR CLYINDER BLOCK)
90430-18008

A25FFXS..AXAP5#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-F2010

A25FFXS..AXAP5#

 4
15709 - NOZZLE SUB-ASSY, OIL, NO.2
15709-F2010

A25FFXS..AXAP5#

 4
Common parts
90105-10582
90110-C0001
91552-F1040
91552-F1090
