ILLUST NO. 7 OF11(1811- )RHD
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
AXAA5#,MXAA5#..X |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-42410 |
AXAL5#..(G,M)..EUR;AXAH54..M..(ARL,EUR,RUS);AXAH52,MXAA54..G..(GCC,GEN);AXAA54,MXAA52..(M,V)..(ARL,EUR);AXAH52,MXAA54..(G,M,V)..(ARL,EUR,SA);AXAA5#,AXAH54,MXAA52..G..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 84250-42320 |
AXAH5#,AXAL5#,MXAA52..X..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 84250-42410 |
AXAH5#,AXAL5#,MXAA52..X..EUR CRUISE CONTROL-WITH(NORMAL) |
1 | ||
| 84250-42410 |
AXAH5#,AXAL5#,MXAA52..X..EUR CRUISE CONTROL-WITH(NORMAL)&AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 84250-42420 |
MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..EUR SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER) |
1 | ||
| 84250-42430 |
MXAA5#..6F..EUR;MXAA52..6F..G..SA ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H) |
1 | ||
| 84250-42420 |
AXAH5#,AXAL5#,MXAA52..X..EUR CRUISE CONTROL-WITH(NORMAL)&SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER) |
1 | ||
| 84250-42440 |
MXAA5#..6F..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)&SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER) |
1 | ||
| 84250-42470 |
AXAH5#,AXAL5#,MXAA52..X..EUR |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12020 |
AXAH52,AXAL5#..M,X;AXAH52,AXAL5#..LHD..G;AXAH54,MXAA52..(M,X)..EUR;AXAH54,MXAA52..LHD..G..EUR;AXAH54,MXAA52..ARL,GCC,GEN,SA;AXAH52,AXAL5#..RHD..G..(ARL,GEN);AXAA5#,MXAA54..ARL,EUR,GCC,GEN,SA |
1 | ||
| 84308-33110 |
AXAH5#,AXAL5#,MXAA52..RHD..M..EUR STEERING WHEEL-LEATHER,WITH(DECO,STEERING HEATER) |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
AXAH5#..LHD..GEN;MXAA52..LHD..CVT;AXAA5#,MXAA54..LHD;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS);AXAH5#,AXAL5#..EUR,GCC,RUS |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33090 |
AXAH5#,AXAL5#,MXAA52..X..EUR FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 84329-12170 |
AXAH5#,AXAL5#,MXAA5#..X..(EUR,RUS) |
1 | ||
| 84329-33090 |
MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..(EUR,RUS);AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..(EUR,RUS) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-33040 |
AXAA5#,MXAA5#..X |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42200 |
MXAA52..LHD..CVT..G;MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..M..(EUR,RUS);AXAA5#,AXAH5#,MXAA54..LHD..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..(EUR,RUS) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-50010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 5 OF11(1811- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-42520 |
MXAA52..X..SA;MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..(M,X)..EUR TYPE A |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-42520 |
MXAA52..X..SA;MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..(M,X)..EUR TYPE A |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
AXAA54..LHD..V;MXAA54..RHD..(M,X);MXAA54..6F..G..EUR;MXAA52..LHD..6F..GEN;MXAA52..6F..(M,X)..EUR;MXAA52..G..(EUR,GEN,SA);MXAA52..CVT..(M,X)..GEN;MXAA52..LHD..CVT..(M,X)..EUR;MXAA54..CVT..G..(EUR,GCC,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..(G,M,X)..(EUR,GCC,GEN,SA) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-33010 |
AXAH5#,AXAL5#,MXAA52..RHD..M..EUR STEERING WHEEL-LEATHER,WITH(DECO,STEERING HEATER) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-42031 |
AXAA54..EUR;MXAA52..RHD..EUR |
1 | ||
| 84721B - SWITCH, PANORAMIC VIEW MONITOR | ||||
| 84721-33010 |
AXAH54..M..(EUR,RUS);AXAA54,MXAA54..M..EUR;MXAA52..6F..(G,M)..EUR;AXAH52,AXAL5#..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..EUR;MXAA54..(G,V)..(EUR,GEN,RUS);AXAH52,AXAL5#,MXAA52..G..(ARL,GEN,RUS,SA);AXAA5#,AXAH54..(G,V)..(ARL,EUR,GEN,RUS,SA) BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-60060 |
MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR COLD AREA SPEC |
1 | ||
| 84966 - SWITCH, POWER BACK DOOR CONTROL | ||||
| 84966-42010 |
AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR) POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 84966-42010 |
AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
AXAA5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
AXAA5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
ILLUST NO. 6 OF11(1811- )RHD..6F

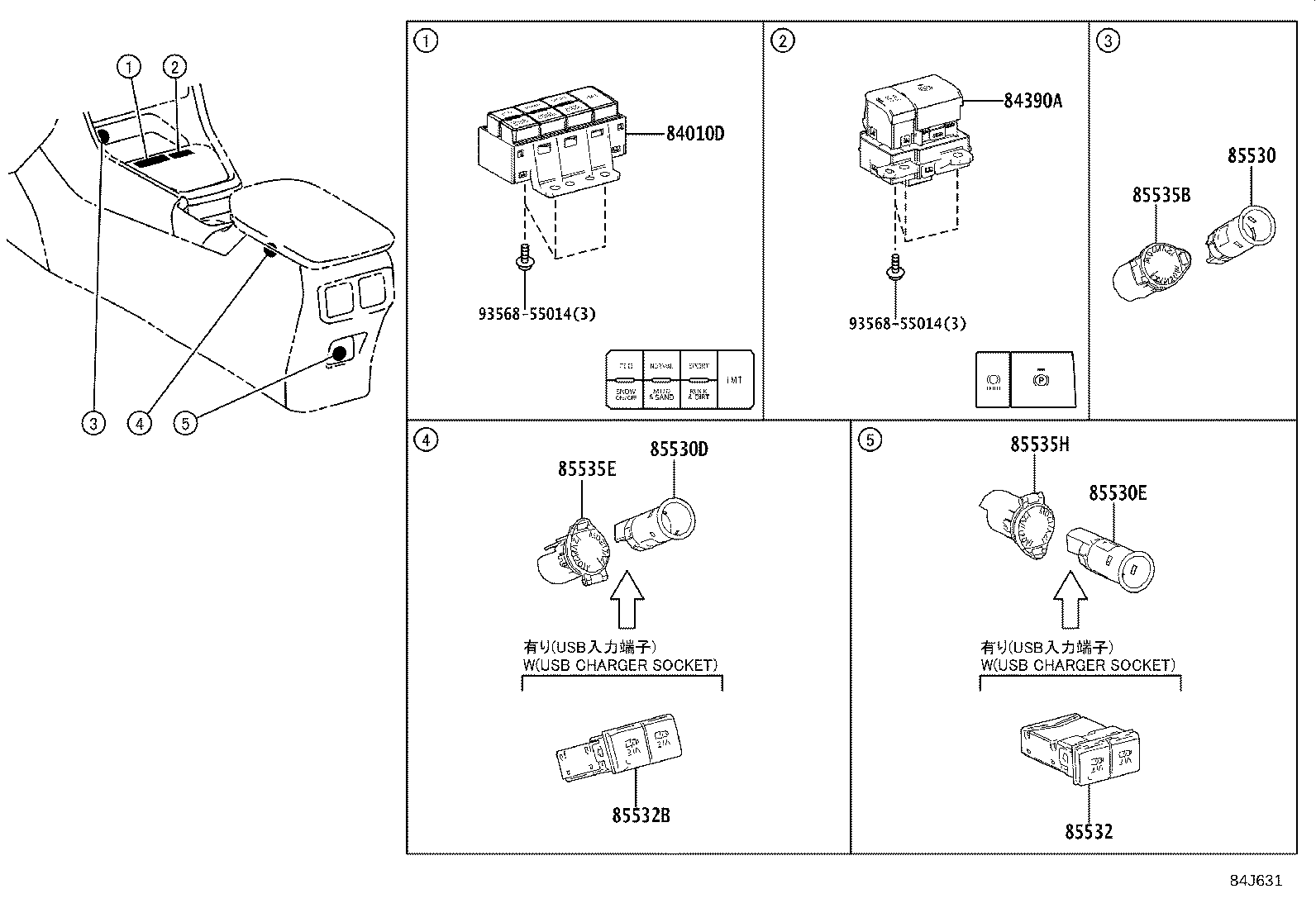

CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-42170 |
MXAA52..6F |
1 | ||
| 84390A - SWITCH ASSY, BRAKE WARNING | ||||
| 84390-42020 |
MXAA5#..RHD..6F |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
AXAH52..RHD..G..GEN;MXAA52..6F..(G,M)..EUR;MXAA52..CVT..(G,M)..(ARL,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA54,AXAH52..(G,M,V)..(ARL,EUR,SA);AXAH54,MXAA54..(G,M,V)..(ARL,EUR,GCC,SA) AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 85530-42010 |
AXAH52..M..GEN;MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..(G,M)..(ARL,EUR);MXAA52..LHD..CVT..(G,M)..EUR;MXAA52..6F..(G,M)..(EUR,GEN);MXAA54..CVT..G..(EUR,GCC,GEN);MXAA54..(M,V)..(EUR,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#..(G,M)..(ARL,EUR,GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..(G,M,V)..(ARL,GCC,GEN,SA) AUDIO JACK-FRONT:USB3, REAR:USB3 |
1 | ||
| 85530-42010 |
MXAA52..G,M;AXAA5#,AXAH5#,AXAL5#,MXAA54;MXAA52..X..(ARL,EUR,GEN,RUS) |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
MXAA5#..X..RUS;AXAH5#,AXAL5#,MXAA52..EUR;MXAA54..(G,M,V)..(EUR,GCC);AXAA5#,AXAH54..(G,M,V)..GCC AUDIO JACK-WITHOUT |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-15010 |
AXAL52..X..EUR;AXAH5#,MXAA52..EUR;AXAL54..RHD..X..EUR;MXAA54..(G,M,V)..(EUR,GCC);AXAA5#,AXAH54..(G,M,V)..GCC AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 85532-15010 |
AXAH5#,AXAL5#,MXAA5#..X..(EUR,RUS);AXAA5#,AXAH5#,AXAL5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,RUS,SA) |
1 | ||
| 85532-15010 |
AXAA5#..(G,M,V)..GCC;AXAH54,AXAL54,MXAA52..LHD..CVT..X..EUR;AXAH5#,AXAL5#,MXAA5#..(G,M,V)..(EUR,GCC) AUDIO JACK-WITHOUT |
1 | ||
| 85532B - SOCKET, USB CHARGER | ||||
| 85532-42010 |
AXAH52..RHD..G..GEN;MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,MXAA54..(G,M,V)..(ARL,EUR,GCC,SA);AXAA54,MXAA52..(ATM,CVT)..(G,M,V)..(ARL,SA) AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 85532-42010 |
MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,GEN,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,GCC,GEN,SA) AUDIO JACK-FRONT:USB3, REAR:USB3 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-30020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
AXAH52..RHD..G..GEN;MXAA52..6F..(G,M)..EUR;MXAA52..CVT..(G,M)..(ARL,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA54,AXAH52..(G,M,V)..(ARL,EUR,SA);AXAH54,MXAA54..(G,M,V)..(ARL,EUR,GCC,SA) AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 85535-30020 |
MXAA52..G,M;AXAA5#,AXAH5#,AXAL5#,MXAA54;MXAA52..X..(ARL,EUR,GEN,RUS) |
1 | ||
| 85535-30020 |
AXAH52..M..GEN;MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..(G,M)..(ARL,EUR);MXAA52..LHD..CVT..(G,M)..EUR;MXAA52..6F..(G,M)..(EUR,GEN);MXAA54..CVT..G..(EUR,GCC,GEN);MXAA54..(M,V)..(EUR,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#..(G,M)..(ARL,EUR,GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..(G,M,V)..(ARL,GCC,GEN,SA) AUDIO JACK-FRONT:USB3, REAR:USB3 |
1 | ||
| 85535H - COVER, POWER OUTLET SOCKET, NO.3 | ||||
| 85535-30020 |
MXAA5#..X..RUS;AXAH5#,AXAL5#,MXAA52..EUR;MXAA54..(G,M,V)..(EUR,GCC);AXAA5#,AXAH54..(G,M,V)..GCC AUDIO JACK-WITHOUT |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
ILLUST NO. 4 OF11(1811- )RHD..6F
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-12460 |
MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR;AXAA54,AXAH54,MXAA5#..RUS,SA |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-42200 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-42270 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-42A10 |
MXAA52..RHD..6F..EUR |
1 | ||
| 82730-42890 |
MXAA52..G,X;MXAA52..CVT..M;MXAA52..LHD..6F..M;AXAA5#,AXAH5#,AXAL5#,MXAA54 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-33040 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49105 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02027 |
AXAA54..LHD..V;MXAA54..RHD..(M,X);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-02027 |
AXAH5#,AXAL5#,MXAA52..RHD..M..EUR STEERING WHEEL-LEATHER,WITH(DECO,STEERING HEATER) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-42040 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-42060 |
MXAA52..RUS;AXAH54,MXAA54..RUS,SA;AXAH5#,AXAL5#..RHD..X..EUR;AXAA54..(G,M,V)..(ARL,RUS,SA);AXAH5#,AXAL5#,MXAA52..RHD..(G,M)..(ARL,EUR) |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-42030 |
AXAA5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-70010 |
MXAA5#..6F |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12050 |
AXAA5#,MXAA5# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-4B190 |
MXAA52..RHD..6F..EUR UNITED KINGDOM, MALTA SPEC |
1 | ||
| 89220-4B220 |
MXAA52..RHD..6F..EUR |
1 | ||
| 89220-4B220 |
MXAA52..RHD..6F..EUR ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO)) |
1 | ||
| 89220-4B221 |
MXAA52..RHD..6F..EUR ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO)) |
1 | ||
| 89220-4B191 |
MXAA52..RHD..6F..EUR UNITED KINGDOM, MALTA SPEC |
1 | ||
| 89220-4B221 |
MXAA52..RHD..6F..EUR |
1 | ||
| 89220-42D30 |
MXAA52..RHD..6F..EUR ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO)) |
1 | ||
| 89220-4B191 |
MXAA52..RHD..6F..EUR UNITED KINGDOM, MALTA SPEC&ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO)) |
1 | ||
| 89220-4BN30 |
MXAA52..RHD..6F..EUR UNITED KINGDOM, MALTA SPEC&ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO)) |
1 | ||
| 89220-4BN40 |
MXAA52..RHD..6F..EUR |
1 | ||
| 89220-4BQ10 |
MXAA52..RHD..6F..EUR ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO)) |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-10010 |
MXAA5#..6F |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO.11 OF11(1811- )
FLOOR RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08944 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF11(1811- )

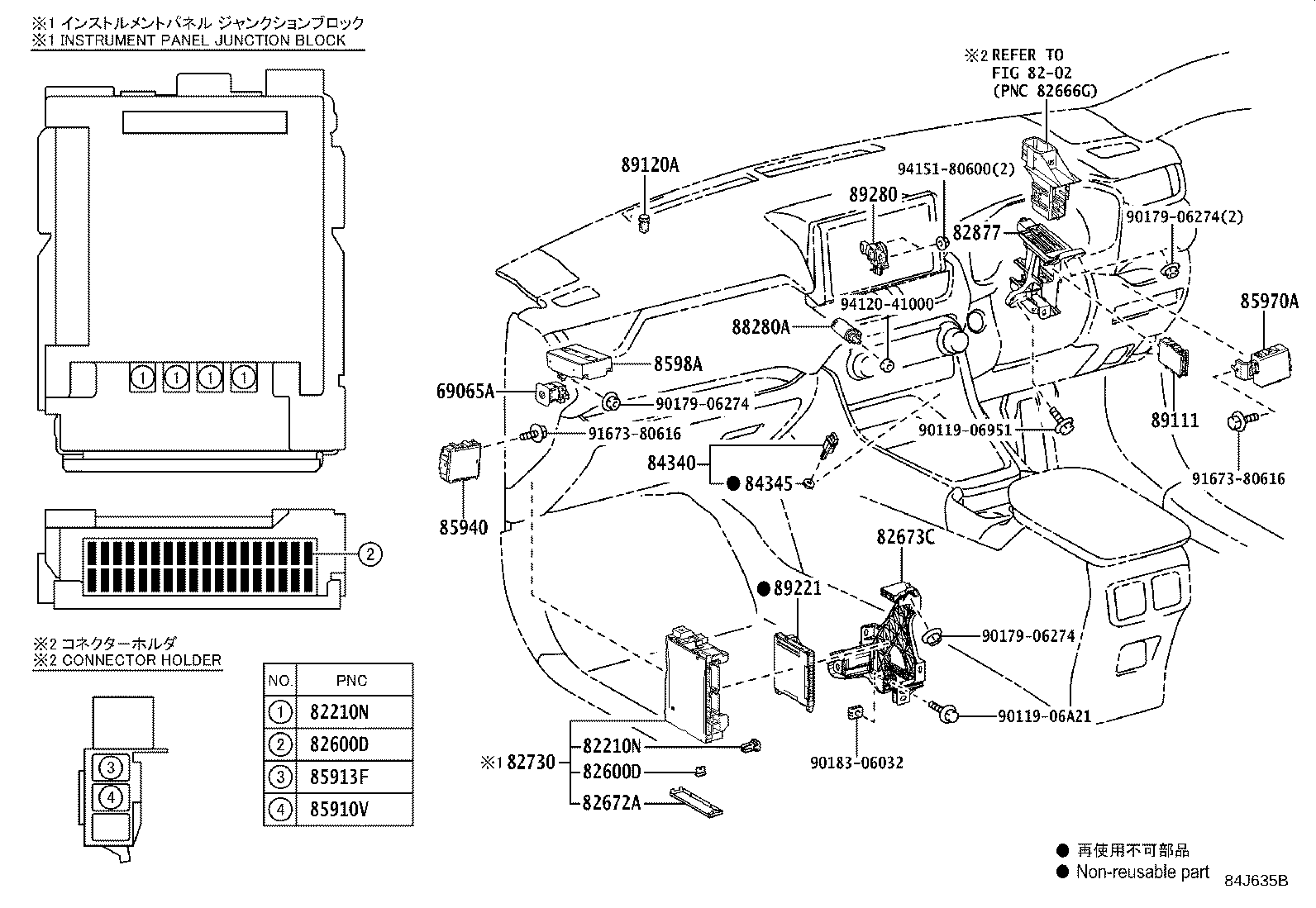

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-25020 |
A25AFKS..AXAA54..EUR;A25AFXS..AXAH5#,AXAL5#;M20AFKS..MXAA52..RHD..EUR |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-25050 |
A25AFKS..AXAA54..EUR;M20AFKS..MXAA52..RHD..EUR |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-W0343 | ||||
| 90178-06018 | ||||
| 94151-80801 | ||||
ILLUST NO.10 OF11(1811- )AXAA5#,MXAA5#
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-42080 |
AXAA5#,MXAA5# |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-42090 |
AXAA5#,MXAA5# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47040 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 84840-47040 |
AXAH54..M..EUR;AXAA54,AXAH52,AXAL5#,MXAA5#..M..(EUR,RUS) POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 84840-47030 |
AXAH54..M..EUR;AXAL5#..X..ARL;AXAL5#..(M,X)..EUR;AXAA5#,AXAH5#,MXAA5#..X;AXAA54,AXAH52,MXAA5#..M..(EUR,RUS) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-42090 |
AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN) LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 88162-42090 |
AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN) LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 88162-42091 |
MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN) LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 88162-42091 |
MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN) LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-42090 |
AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN) LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 88162-42090 |
AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN) LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 88162-42091 |
MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN) LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 88162-42091 |
MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN) LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 891B1 - BRACKET, KICK DOOR CONTROL | ||||
| 891B1-42030 |
AXAH52..G..GEN;AXAH54..G..(EUR,GEN,RUS);AXAH52,AXAL5#..(G,M)..EUR;AXAA54,AXAH54,MXAA5#..M..EUR;AXAA5#,MXAA5#..(G,V)..(EUR,GEN) POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0W050 |
AXAH52..G..GEN;AXAH54..G..(EUR,GEN,RUS);AXAH52,AXAL5#..(G,M)..EUR;AXAA54,AXAH54,MXAA5#..M..EUR;AXAA5#,MXAA5#..(G,V)..(EUR,GEN) POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-42101 |
AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 89222-42100 |
AXAH52,MXAA54..G..(GCC,GEN);AXAA54,AXAH54,MXAA52..M..(ARL,EUR);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN) POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 89222-42101 |
AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR) POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 89222-42100 |
AXAA54,AXAH5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 89747-30040 |
AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR) POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
MXAA52..6F..M..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..(GCC,GEN) LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| Common parts | ||||
| 31364-42020 | ||||
| 90105-06348 | ||||
| 90167-50063 | ||||
| 90178-06012 | ||||
| 90179-06178 | ||||
| 90301-11008 | ||||
| 90430-14011 | ||||
| 90467-07215 | ||||
| 91553-80612 | ||||
ILLUST NO. 1 OF11(1811- )MXAA5#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-12X50 |
MXAA5# (J) |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-12V90 |
MXAA5# |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-42K70 |
MXAA54;MXAA52..6F |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-42K70 |
MXAA54;MXAA52..6F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
MXAA5#..6F |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-52010 |
MXAA5#..6F |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12280 |
MXAA5# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-42170 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-42170 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-71010 |
MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33051 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90119-06A12 | ||||
| 90119-06A23 | ||||
| 90119-W0358 | ||||
| 90153-50015 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80835 | ||||
| 91611-60618 | ||||
| 91651-40620 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 3 OF11(1811- )AXAA5#,MXAA5#
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
M20AFKS..MXAA54;M20AFKS..MXAA52..6F..EUR;M20AFKS..MXAA52..LHD..CVT..EUR;A25AFKS,M20AFKS..AXAA5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08283 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08302 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08303 |
AXAA5#,MXAA5# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08285 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA 25A,MINI FUSE |
1 | ||
| 90982-09021 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA 25A,MINI FUSE |
1 | ||
| 90982-09021 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-42080 |
AXAA5#,MXAA5# |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-42090 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33150 |
AXAA54..EUR,RUS;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..(M,X)..(EUR,RUS);MXAA52..LHD..G..(EUR,RUS);AXAA5#,MXAA5#..RHD..(G,V)..(ARL,EUR,GEN) |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-42100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-42110 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0E010 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-33050 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAA5#,MXAA52..(ATM,CVT)..(ARL,EUR,GEN,RUS,SA) |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-52100 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42080 |
AXAA5#,MXAA5#..RHD |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-42060 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42700 |
AXAA54..EUR,RUS;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..(M,X)..(EUR,RUS);MXAA52..LHD..G..(EUR,RUS);AXAA5#,MXAA5#..RHD..(G,V)..(ARL,EUR,GEN) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42650 |
MXAA5#..6F..EUR;AXAA5#,MXAA54..G..GCC;MXAA5#..6F..G..(GEN,SA);AXAA5#,MXAA5#..(ATM,CVT)..(ARL,EUR,GEN,SA) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42170 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42160 |
AXAA5#,MXAA54..G..GCC;AXAA5#,MXAA5#..ARL,EUR,GEN,RUS,SA |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-42050 |
AXAA5#,MXAA5# |
1 | ||
| 82740A - BLOCK ASSY, ENGINE ROOM RELAY, NO.2 | ||||
| 82740-42120 |
MXAA54..CVT..GEN;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..6F..(EUR,RUS);MXAA5#..6F..G..(GEN,SA);AXAH5#,AXAL5#,MXAA52..CVT;AXAA5#..ARL,EUR,GEN,RUS,SA |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR COLD AREA SPEC |
1 | ||
| 85278A - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 90987-02027 |
MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR COLD AREA SPEC |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-02027 |
AXAA5#,MXAA5# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-02027 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87026 |
AXAA54,AXAH54,MXAA54..X..(EUR,GEN);AXAA52,AXAH52,AXAL5#,MXAA52..X..(EUR,GCC,GEN) FRONT FOG & DRIVING LAMP-WITH,(L) |
1 | ||
| 90987-02027 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..G,M,V;AXAA54,AXAH5#,AXAL5#,MXAA52..X..(ARL,SA) (J) |
1 | ||
| 90987-02027 |
AXAA54,AXAH54,MXAA54..X..(EUR,GEN);AXAA52,AXAH52,AXAL5#,MXAA52..X..(EUR,GCC,GEN) FRONT FOG & DRIVING LAMP-WITH,(J) |
1 | ||
| 90080-87026 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..G,M,V;AXAA54,AXAH5#,AXAL5#,MXAA52..X..(ARL,SA) (L) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87026 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# (L) |
2 | ||
| 90987-02027 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# (J) |
2 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90987-02027 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 90987-04004 |
MXAA54..M..EUR;MXAA54..G..(EUR,RUS);AXAA54,AXAH54,MXAA52..G..RUS;AXAA54,AXAH5#,AXAL5#,MXAA52..EUR |
2 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90987-02027 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90987-02025 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90178-W0019 | ||||
| 94151-80600 | ||||
ILLUST NO. 9 OF11(1811- )RHD
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-42040 |
MXAA52..RHD..X;MXAA52..RHD..M..GEN;AXAA54,AXAH5#,MXAA54..RHD..(M,V,X)..GEN;AXAA54,AXAH5#,AXAL5#..RHD..X..(ARL,EUR) |
1 | ||
| 84040-42050 |
AXAH52..RHD..G..GEN;AXAA5#,AXAH54,MXAA52..RHD..G;AXAH52,AXAL5#..RHD..(G,M)..(ARL,EUR);AXAA54,AXAH54,MXAA5#..RHD..(M,V)..(ARL,EUR,SA) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12100 |
MXAA52..X;MXAA5#..M..(GCC,GEN);MXAA54..(V,X)..(GCC,GEN,RUS);AXAA5#,AXAH5#..(M,V,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#..X..(ARL,EUR) |
1 | ||
| 84810-12110 |
AXAA5#,AXAH54,MXAA52..G;AXAH52,MXAA54..G..(GCC,GEN);AXAA54,AXAH54,MXAA52..(M,V)..(ARL,EUR,RUS);AXAH52,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,RUS,SA) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12110 |
AXAA5#,AXAH54,MXAA52..G;AXAH52,MXAA54..G..(GCC,GEN);AXAA54,AXAH54,MXAA52..(M,V)..(ARL,EUR,RUS);AXAH52,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,RUS,SA) |
2 | ||
| 84810-12100 |
MXAA52..X;MXAA5#..M..(GCC,GEN);MXAA54..(V,X)..(GCC,GEN,RUS);AXAA5#,AXAH5#..(M,V,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#..X..(ARL,EUR) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12110 |
AXAA5#,AXAH54,MXAA52..G;AXAH52,MXAA54..G..(GCC,GEN);AXAA54,AXAH54,MXAA52..(M,V)..(ARL,EUR,RUS);AXAH52,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,RUS,SA) |
2 | ||
| 84810-12100 |
MXAA52..X;MXAA5#..M..(GCC,GEN);MXAA54..(V,X)..(GCC,GEN,RUS);AXAA5#,AXAH5#..(M,V,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#..X..(ARL,EUR) |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-42030 |
MXAA54..M..EUR;MXAA54..G..(EUR,RUS);AXAA54,AXAH54,MXAA52..G..RUS;AXAA54,AXAH5#,AXAL5#,MXAA52..EUR |
1 | ||
| 84966A - SWITCH, POWER BACK DOOR CONTROL, NO.1 | ||||
| 84966-42020 |
AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR) POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 84966-42020 |
AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
AXAH5#,AXAL5#,MXAA5#..X..(EUR,RUS);AXAA5#,AXAH5#,AXAL5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,RUS,SA) |
1 | ||
| 85530-42010 |
MXAA5#..X..RUS;AXAH5#,AXAL5#,MXAA52..EUR;MXAA54..(G,M,V)..(EUR,GCC);AXAA5#,AXAH54..(G,M,V)..GCC AUDIO JACK-WITHOUT |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-30020 |
MXAA5#..X..RUS;AXAH5#,AXAL5#,MXAA52..EUR;MXAA54..(G,M,V)..(EUR,GCC);AXAA5#,AXAH54..(G,M,V)..GCC AUDIO JACK-WITHOUT |
1 | ||
| 85535-30020 |
AXAH5#,AXAL5#,MXAA5#..X..(EUR,RUS);AXAA5#,AXAH5#,AXAL5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,RUS,SA) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
ILLUST NO. 8 OF11(1811- )RHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33200C0 |
MXAA52..RHD..M..EUR FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33200C0 |
MXAA52..RHD..M..EUR FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33190C0 |
MXAA52..RHD..M..EUR FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33190C0 |
MXAA52..RHD..M..EUR FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33220C0 |
MXAA52..RHD..M..EUR FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7151 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
