AXAH52R-ANXXBW (2018)
Toyota Rav4 (Jpp)
(1811- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
ILLUST NO. 2 OF 7(1811- )MXAA52..M,X..RUS ; (1811- )MXAA52..LHD..EUR,GEN ; (1811- )AXAA52,A
FRONT MANUAL SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-42330 |
AXAH52..M..GEN;AXAH52..RHD..(ARL,EUR);AXAH52..LHD..(M,X)..EUR;AXAL5#,MXAA54..RHD..(G,V);AXAA5#..LHD..(M,X)..(GCC,GEN);MXAA52..6F..(M,X)..(ARL,EUR,GEN,SA);AXAA5#,AXAH54,MXAA52..RHD..(ATM,CVT);AXAL5#,MXAA54..(M,X)..(ARL,EUR,GCC,GEN);AXAH54,MXAA52..LHD..CVT..(M,X)..(EUR,GCC,GEN) |
1 | ||
| 71014-42330 |
AXAH52..M..GEN;AXAH52..RHD..(ARL,EUR);AXAH52..LHD..(M,X)..EUR;AXAL5#,MXAA54..RHD..(G,V);AXAA5#..LHD..(M,X)..(GCC,GEN);MXAA52..6F..(M,X)..(ARL,EUR,GEN,SA);AXAA5#,AXAH54,MXAA52..RHD..(ATM,CVT);AXAL5#,MXAA54..(M,X)..(ARL,EUR,GCC,GEN);AXAH54,MXAA52..LHD..CVT..(M,X)..(EUR,GCC,GEN) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71051-47090 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-47050 |
AXAL5#..M,X;AXAL5#..RHD..G;MXAA52..(M,X)..GEN;AXAH5#..(M,X)..(GCC,GEN,RUS);AXAH5#,MXAA52..LHD..(M,X)..EUR;AXAA5#,MXAA54..(M,X)..(EUR,GCC,GEN);AXAA54,AXAH5#,MXAA52..RHD..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 71053-47050 |
AXAL5#..M,X;AXAL5#..RHD..G;MXAA52..(M,X)..GEN;AXAH5#..(M,X)..(GCC,GEN,RUS);AXAH5#,MXAA52..LHD..(M,X)..EUR;AXAA5#,MXAA54..(M,X)..(EUR,GCC,GEN);AXAA54,AXAH5#,MXAA52..RHD..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-50040 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71759-50040 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-50040 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71759-50040 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42190C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71812-42190C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-47010 |
AXAH54..LHD..(M,X);AXAA5#,AXAH5#,MXAA52..RHD;AXAL5#,MXAA54..RHD..(G,V);AXAL5#,MXAA54..(M,X)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..LHD..(M,X)..(EUR,GCC,GEN) |
1 | ||
| 7181B-47010 |
AXAH54..LHD..(M,X);AXAA5#,AXAH5#,MXAA52..RHD;AXAL5#,MXAA54..RHD..(G,V);AXAL5#,MXAA54..(M,X)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..LHD..(M,X)..(EUR,GCC,GEN) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42120C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71862-42120C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-42060C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71876-42060C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42070C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71876-42070C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-42310 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 72020-42310 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-47010 |
MXAA54..M,X;MXAA54..RHD..V;AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(M,X) |
2 | ||
| 72125-47010 |
MXAA54..M,X;MXAA54..RHD..V;AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(M,X) |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-42020 |
MXAA54..M,X;MXAA54..RHD..V;AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(M,X) |
1 | ||
| 72211-42020 |
MXAA54..M,X;MXAA54..RHD..V;AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(M,X) |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
MXAA54..M,X;MXAA54..RHD..V;AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(M,X) |
2 | ||
| 72265-47010 |
MXAA54..M,X;MXAA54..RHD..V;AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(M,X) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42030C0 |
AXAL5#..X..ARL;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA5#,AXAH54,MXAA54..LHD..X..(GCC,GEN);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 72526-42030C0 |
AXAL5#..X..ARL;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA5#,AXAH54,MXAA54..LHD..X..(GCC,GEN);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-47030C1 |
AXAL5#..X..ARL;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA5#,AXAH54,MXAA54..LHD..X..(GCC,GEN);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 72551-47030C1 |
AXAL5#..X..ARL;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA5#,AXAH54,MXAA54..LHD..X..(GCC,GEN);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42090 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 73920-42090 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90980-12373 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 7(1811- )AXAL5#..RHD..M,X ; (1811- )AXAA5#,AXAH5#,MXAA5#..RHD

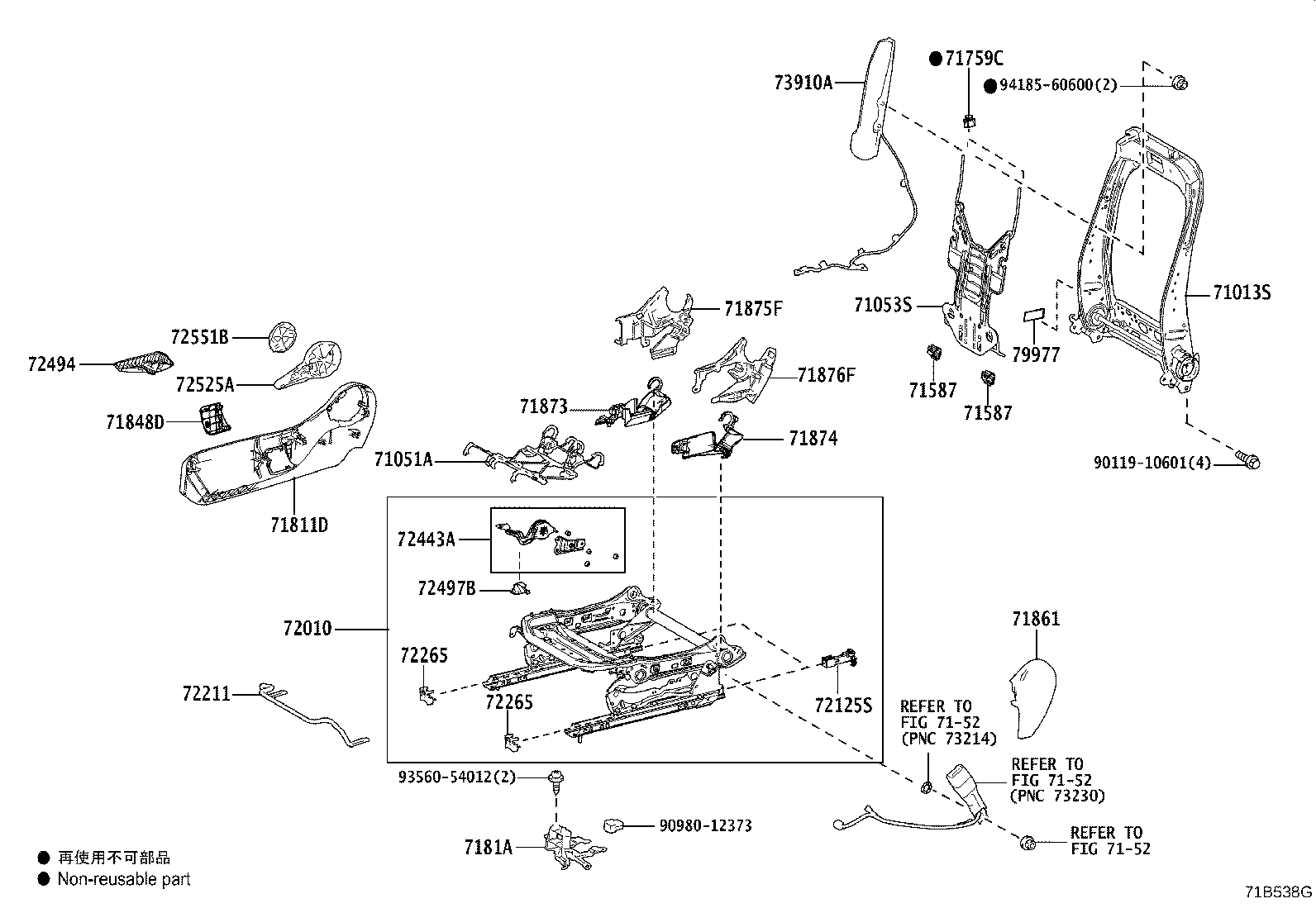

FRONT MANUAL SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-42340 |
AXAA52..LHD;MXAA54..RHD..(M,X);MXAA54..6F..G..EUR;AXAA54..(M,X)..(ARL,GCC,GEN);MXAA54..CVT..G..(EUR,GCC,GEN);AXAA54..LHD..(G,V)..(GCC,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAH5#,AXAL5#,MXAA52..LHD..G..(EUR,GCC,GEN);AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
AXAH54..M,X;AXAA54..V..GCC;MXAA54..RHD..(M,X);MXAA54..G..(EUR,GEN);AXAH54..LHD..G..(EUR,GEN,RUS);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH52,AXAL5#,MXAA52..LHD..(G,V)..(EUR,GEN);AXAA5#,AXAH52,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42180C0 |
AXAL5#..X..ARL;AXAA54,AXAH5#,MXAA52..RHD..X..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(G,V) |
1 | ||
| 7181A-47010 |
AXAH54..M,X;AXAH54..LHD..G;MXAA54..RHD..(M,X);AXAA52,MXAA54..LHD..(EUR,GCC,GEN);AXAA54,AXAH52,AXAL5#,MXAA52..LHD..(G,V)..(EUR,GCC,GEN);AXAA54,AXAH52,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 71848D - CAP, SEAT ADJUSTER COVER, RH(FOR RH SEAT) | ||||
| 71848-42020C0 |
AXAL5#..X..ARL;AXAA54,AXAH5#,MXAA52..RHD..X..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42050 |
MXAA52..RHD..CVT;AXAH52..RHD..M..GEN;AXAH52..RHD..(ARL,EUR);MXAA52..RHD..6F..(M,X);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-42060 |
MXAA52..RHD..CVT;AXAH52..RHD..M..GEN;AXAH52..RHD..(ARL,EUR);MXAA52..RHD..6F..(M,X);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-42090C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-42100C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-42301 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..RHD..(M,X) |
1 | ||
| 72010-42300 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) |
1 | ||
| 72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH | ||||
| 72125-47020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(G,V) |
2 | ||
| 72125-47010 |
AXAA52,MXAA54..LHD;MXAA54..RHD..(M,X);AXAA54,AXAH5#,AXAL5#,MXAA52..M,X;AXAA54,AXAH5#,AXAL5#,MXAA52..LHD..(G,V) |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-42020 |
AXAA52,MXAA54..LHD;MXAA54..RHD..(M,X);AXAA54,AXAH5#,AXAL5#,MXAA52..M,X;AXAA54,AXAH5#,AXAL5#,MXAA52..LHD..(G,V) |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(G,V) |
2 | ||
| 72265-47010 |
AXAA52,MXAA54..LHD;MXAA54..RHD..(M,X);AXAA54,AXAH5#,AXAL5#,MXAA52..M,X;AXAA54,AXAH5#,AXAL5#,MXAA52..LHD..(G,V) |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(G,V) |
2 | ||
| 72265-47010 |
AXAA52,MXAA54..LHD;MXAA54..RHD..(M,X);AXAA54,AXAH5#,AXAL5#,MXAA52..M,X;AXAA54,AXAH5#,AXAL5#,MXAA52..LHD..(G,V) |
2 | ||
| 72443A - GEAR, VERTICAL ADJUSTER, RH | ||||
| 72443-42011 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..RHD..(M,X) |
1 | ||
| 72443-42010 |
AXAA54,AXAH5#,MXAA5#..RHD..(M,X) |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42040C0 |
AXAL5#..X..ARL;AXAA54,AXAH5#,MXAA52..RHD..X..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-42010 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..RHD..(M,X) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42030C0 |
AXAA54..V..GCC;AXAH5#..RHD..X;AXAA54,AXAL5#,MXAA52..X..(ARL,GCC);AXAA54,MXAA52..LHD..(6F,8FC)..(V,X)..GEN;AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-47030C1 |
AXAA54..V..GCC;AXAH5#..RHD..X;AXAA54,AXAL5#,MXAA52..X..(ARL,GCC);AXAA54,MXAA52..LHD..(6F,8FC)..(V,X)..GEN;AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42090 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90980-12373 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||

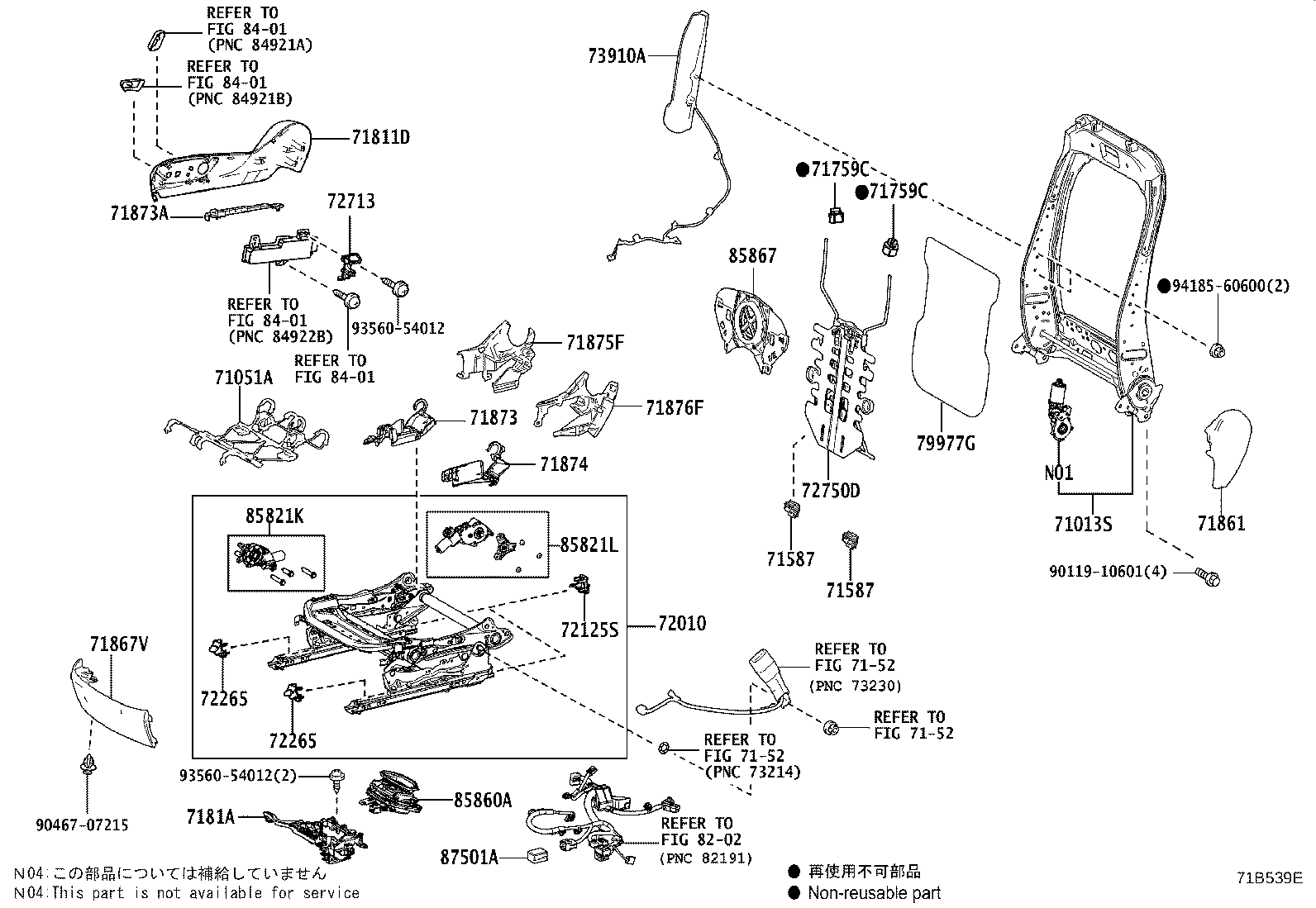

ILLUST NO. 3 OF 7(1811- )AXAL5#..G..ARL ; (1811- )AXAL5#..RHD..G,M..EUR ; (1811- )AXAA5#,AX
FRONT POWER SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-42340 |
AXAA52..LHD;MXAA54..RHD..(M,X);MXAA54..6F..G..EUR;AXAA54..(M,X)..(ARL,GCC,GEN);MXAA54..CVT..G..(EUR,GCC,GEN);AXAA54..LHD..(G,V)..(GCC,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAH5#,AXAL5#,MXAA52..LHD..G..(EUR,GCC,GEN);AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42180C0 |
AXAL5#..X..ARL;AXAA54,AXAH5#,MXAA52..RHD..X..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(G,V) |
1 | ||
| 7181A-47010 |
AXAH54..M,X;AXAH54..LHD..G;MXAA54..RHD..(M,X);AXAA52,MXAA54..LHD..(EUR,GCC,GEN);AXAA54,AXAH52,AXAL5#,MXAA52..LHD..(G,V)..(EUR,GCC,GEN);AXAA54,AXAH52,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42050 |
MXAA52..RHD..CVT;AXAH52..RHD..M..GEN;AXAH52..RHD..(ARL,EUR);MXAA52..RHD..6F..(M,X);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-42060 |
MXAA52..RHD..CVT;AXAH52..RHD..M..GEN;AXAH52..RHD..(ARL,EUR);MXAA52..RHD..6F..(M,X);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-42090C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-42100C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-42301 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..RHD..(M,X) |
1 | ||
| 72010-42300 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) |
1 | ||
| 72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH | ||||
| 72125-47020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(G,V) |
2 | ||
| 72125-47010 |
AXAA52,MXAA54..LHD;MXAA54..RHD..(M,X);AXAA54,AXAH5#,AXAL5#,MXAA52..M,X;AXAA54,AXAH5#,AXAL5#,MXAA52..LHD..(G,V) |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(G,V) |
2 | ||
| 72265-47010 |
AXAA52,MXAA54..LHD;MXAA54..RHD..(M,X);AXAA54,AXAH5#,AXAL5#,MXAA52..M,X;AXAA54,AXAH5#,AXAL5#,MXAA52..LHD..(G,V) |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(G,V) |
2 | ||
| 72265-47010 |
AXAA52,MXAA54..LHD;MXAA54..RHD..(M,X);AXAA54,AXAH5#,AXAL5#,MXAA52..M,X;AXAA54,AXAH5#,AXAL5#,MXAA52..LHD..(G,V) |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42090 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-76010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(G,V) |
1 | ||
| 79977-33030 |
AXAA5#,AXAH5#,MXAA5#..RHD..(G,V) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 7(1811- )RHD
FRONT MANUAL SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-42330 |
AXAH52..M..GEN;AXAH52..RHD..(ARL,EUR);AXAH52..LHD..(M,X)..EUR;AXAL5#,MXAA54..RHD..(G,V);AXAA5#..LHD..(M,X)..(GCC,GEN);MXAA52..6F..(M,X)..(ARL,EUR,GEN,SA);AXAA5#,AXAH54,MXAA52..RHD..(ATM,CVT);AXAL5#,MXAA54..(M,X)..(ARL,EUR,GCC,GEN);AXAH54,MXAA52..LHD..CVT..(M,X)..(EUR,GCC,GEN) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-47050 |
AXAL5#..M,X;AXAL5#..RHD..G;MXAA52..(M,X)..GEN;AXAH5#..(M,X)..(GCC,GEN,RUS);AXAH5#,MXAA52..LHD..(M,X)..EUR;AXAA5#,MXAA54..(M,X)..(EUR,GCC,GEN);AXAA54,AXAH5#,MXAA52..RHD..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-50040 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42190C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-47010 |
AXAH54..LHD..(M,X);AXAA5#,AXAH5#,MXAA52..RHD;AXAL5#,MXAA54..RHD..(G,V);AXAL5#,MXAA54..(M,X)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..LHD..(M,X)..(EUR,GCC,GEN) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42120C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-42060C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42070C0 |
AXAL5#..X..ARL;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-42310 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-47010 |
MXAA54..M,X;MXAA54..RHD..V;AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(M,X) |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-42020 |
MXAA54..M,X;MXAA54..RHD..V;AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(M,X) |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
MXAA54..M,X;MXAA54..RHD..V;AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(M,X) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42030C0 |
AXAL5#..X..ARL;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA5#,AXAH54,MXAA54..LHD..X..(GCC,GEN);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-47030C1 |
AXAL5#..X..ARL;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..RHD..V..(GEN,SA);AXAA5#,AXAH54,MXAA54..LHD..X..(GCC,GEN);AXAA54,AXAH5#,MXAA52..RHD..(V,X)..(ARL,EUR) BLACK,TRIM2#,4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42090 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90980-12373 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
ILLUST NO. 4 OF 7(1811- )
FRONT SEAT FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-10100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-10100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-10100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90148-10007 | ||||
ILLUST NO. 7 OF 7(1811- )
REAR SEAT FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-42020 |
AXAH5#,AXAL5# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-42040 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-42030 |
AXAH5#,AXAL5# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-42030 |
AXAH5#,AXAL5# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-42040 |
AXAH5#,AXAL5# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-42040 |
AXAH5#,AXAL5# |
1 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 90119-10990 | ||||
| 91671-80820 | ||||
| 91672-81022 | ||||
ILLUST NO. 5 OF 7(1811- )
REAR SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-42240 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-42290 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-42A60C5 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
1 | ||
| 71077-42A80C4 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-42B20C4 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
1 | ||
| 71078-42B30C2 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-42200 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-42190 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-28040 |
AXAH54..M..RUS;AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) |
7 | ||
| 71769-28040 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) |
5 | ||
| 71769-28040 |
AXAA52,AXAL5#;AXAH54..G..RUS;MXAA54..RHD..(M,V);MXAA54..LHD..(EUR,GCC,GEN);AXAA54,MXAA52..LHD..X..GEN;AXAA54,AXAH5#,MXAA52..X..(ARL,GCC);AXAA54,AXAH5#,MXAA52..(G,M,V)..(ARL,EUR,GCC,GEN,SA) |
5 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-28040 |
AXAH54..M..RUS;AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) |
7 | ||
| 71769-28040 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) |
5 | ||
| 71769-28040 |
AXAA52,AXAL5#;AXAH54..G..RUS;MXAA54..RHD..(M,V);MXAA54..LHD..(EUR,GCC,GEN);AXAA54,MXAA52..LHD..X..GEN;AXAA54,AXAH5#,MXAA52..X..(ARL,GCC);AXAA54,AXAH5#,MXAA52..(G,M,V)..(ARL,EUR,GCC,GEN,SA) |
5 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-42330C0 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
2 | ||
| 71940-42260C0 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-42330C0 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
2 | ||
| 71940-42260C0 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
1 | ||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
1 | ||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-42180C7 |
AXAA52,AXAH5#,AXAL5#..M,X;AXAA54,MXAA5#..(M,X)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM2# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-42020C0 |
AXAH54..(M,X)..(EUR,RUS);AXAA54,AXAH52,AXAL5#,MXAA5#..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-42020C0 |
AXAH54..(M,X)..(EUR,RUS);AXAA54,AXAH52,AXAL5#,MXAA5#..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-42010 |
MXAA5#..6F..G..EUR;MXAA54..CVT..G..(EUR,GCC,GEN);MXAA54..(M,V,X)..(EUR,GCC,GEN,SA);MXAA52..6F..(M,X)..(ARL,EUR,GEN,SA);AXAA5#,AXAH5#,MXAA52..(ATM,CVT)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 72630-42011 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-42011 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 72640-42010 |
MXAA5#..6F..G..EUR;MXAA54..CVT..G..(EUR,GCC,GEN);MXAA54..(M,V,X)..(EUR,GCC,GEN,SA);MXAA52..6F..(M,X)..(ARL,EUR,GEN,SA);AXAA5#,AXAH5#,MXAA52..(ATM,CVT)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 72667A - BEZEL, REAR SEAT BACK LOCK, UPPER RH | ||||
| 72667-42010C0 |
AXAH54..(M,X)..(EUR,RUS);AXAA54,AXAH52,AXAL5#,MXAA5#..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 72667B - BEZEL, REAR SEAT BACK LOCK, UPPER LH | ||||
| 72667-42020C0 |
AXAH54..(M,X)..(EUR,RUS);AXAA54,AXAH52,AXAL5#,MXAA5#..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 72668E - BEZEL, REAR SEAT BACK LOCK, LOWER RH | ||||
| 72668-42010C0 |
AXAH54..(M,X)..(EUR,RUS);AXAA54,AXAH52,AXAL5#,MXAA5#..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 72668F - BEZEL, REAR SEAT BACK LOCK, LOWER LH | ||||
| 72668-42020C0 |
AXAH54..(M,X)..(EUR,RUS);AXAA54,AXAH52,AXAL5#,MXAA5#..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-42020C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-42180C6 |
AXAA52,AXAH5#..M,X;AXAA54,MXAA5#..(M,X)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM2# |
1 | ||
| 72830-42180C8 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..(M,X)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM2# |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-22010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-42040C0 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 78899-60070 | ||||
| 90167-40044 | ||||
| 90206-12064 | ||||
| 91553-80820 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 6 OF 7(1811- )
REAR SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-42890C3 |
AXAH5#..X..EUR BLACK,TRIM2# |
1 | ||
| 71075-42A10C3 |
AXAH5#..X..EUR BLACK,TRIM2# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-42890C3 |
AXAH5#..X..EUR BLACK,TRIM2# |
1 | ||
| 71075-42A10C3 |
AXAH5#..X..EUR BLACK,TRIM2# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-42070 |
AXAH5#..ARL,EUR |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-42070 |
AXAH5#..ARL,EUR |
1 | ||
ILLUST NO. 1 OF 7(1811- )
FRONT SEAT COVER & PAD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42860C3 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) BLACK,TRIM2# |
1 | ||
| 71071-42880C3 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42690C3 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) BLACK,TRIM2# |
1 | ||
| 71072-42730C3 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42C50C5 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) BLACK,TRIM2# |
1 | ||
| 71073-42F10C1 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-42B00C2 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) BLACK,TRIM2# |
1 | ||
| 71074-42670C5 |
AXAA54,AXAH5#,MXAA5#..RHD..X..(EUR,GEN,SA) BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42240 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..RHD..(M,X) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-42030 |
AXAA54,AXAH5#,MXAA5#..RHD..(M,X)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA52..RHD..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42320 |
AXAH54..ARL,EUR,RUS;MXAA54..G..(EUR,GEN);MXAA54..(M,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..G..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH52,AXAL5#,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-42200 |
AXAH54..ARL,EUR,RUS;MXAA54..G..(EUR,GEN);MXAA54..(M,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..G..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH52,AXAL5#,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42460C0 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
2 | ||
| 71910-42380C1 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42460C0 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
2 | ||
| 71910-42380C1 |
AXAH5#,MXAA52..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-47050C5 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-47630 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-47630 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
