AXAH52R-ANXXBW (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )AXAA52..LHD..GEN ; (1811- )AXAA52..G,M..GCC ; (1811- )AXAH5#,AXAL5

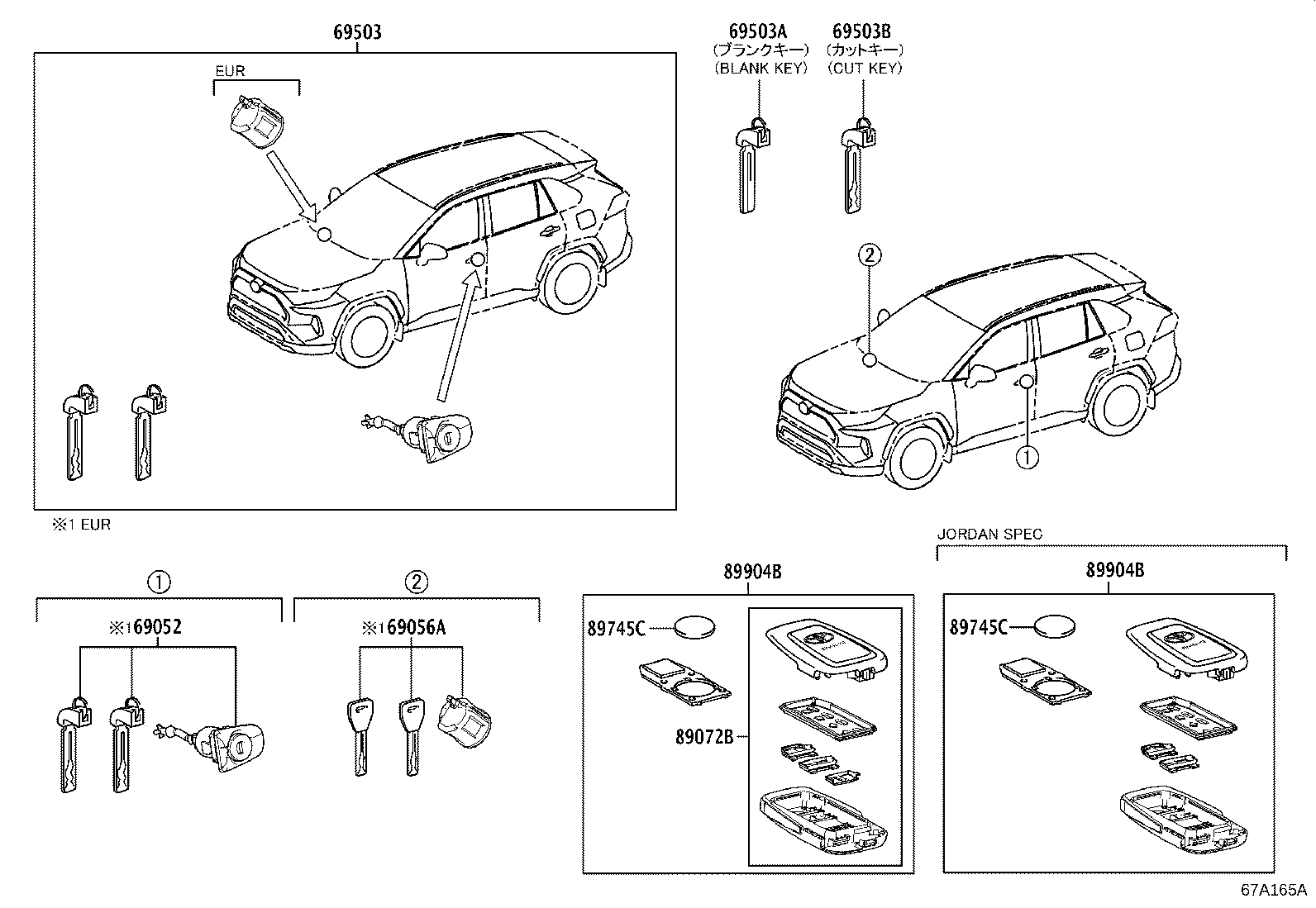

Click highlighted areas on diagram

W(SMART KEY) LHD

diagram 69052 69056A 69503 69503A 69503B 89072B 89745C 89745C 89904B 89904B
Part # Description Qty Price
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-50160

AXAH54..EUR,RUS;MXAA52..(G,M)..EUR;AXAA54,AXAH52,AXAL5#,MXAA54..EUR

 1
69503 - CYLINDER SET, LOCK
69005-42870

AXAH5#,AXAL5#,MXAA52..RHD..EUR

 1
69503A - KEY, BLANK
69515-47030

AXAH5#,AXAL5#;AXAA5#,MXAA5#..G,M,V

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-47020

AXAH5#,AXAL5#;AXAA5#,MXAA5#..G,M,V

MASTER KEY,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-42740

AXAH52..G..GEN;AXAH54..GCC,GEN;AXAH54..(M,X)..EUR;AXAH52,AXAL5#..(M,X)..(EUR,GEN)

 2
89745C - BATTERY, TRANSMITTER
89745-50020

AXAH5#,AXAL5#..EUR,GCC,GEN,RUS;AXAA5#,MXAA5#..(G,M,V)..(EUR,GCC,GEN,RUS,SA)

CR2032

 1
89745C - BATTERY, TRANSMITTER
89745-50020

AXAH5#,AXAL5#..EUR,GCC,GEN,RUS;AXAA5#,MXAA5#..(G,M,V)..(EUR,GCC,GEN,RUS,SA)

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-42180

AXAH52..G..GEN;AXAH54..GCC,GEN;AXAH54..(M,X)..EUR;AXAH52,AXAL5#..(M,X)..(EUR,GEN)

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-42180

AXAH52..G..GEN;AXAH54..GCC,GEN;AXAH54..(M,X)..EUR;AXAH52,AXAL5#..(M,X)..(EUR,GEN)

 2

(1811- )AXAA52,AXAH5#,AXAL5#..RHD ; (1811-)AXAA54,MXAA5#..RHD..G,M,V ; (2008

Click highlighted areas on diagram

W(SMART KEY) RHD

diagram 69051 69056A 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-42270

AXAH5#,AXAL5#,MXAA52..RHD..EUR

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-50160

AXAH54..EUR,RUS;MXAA52..(G,M)..EUR;AXAA54,AXAH52,AXAL5#,MXAA54..EUR

 1
69503 - CYLINDER SET, LOCK
69005-42870

AXAH5#,AXAL5#,MXAA52..RHD..EUR

 1
69503A - KEY, BLANK
69515-47030

AXAH5#,AXAL5#;AXAA5#,MXAA5#..G,M,V

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-47020

AXAH5#,AXAL5#;AXAA5#,MXAA5#..G,M,V

MASTER KEY,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-42740

AXAH52..G..GEN;AXAH54..GCC,GEN;AXAH54..(M,X)..EUR;AXAH52,AXAL5#..(M,X)..(EUR,GEN)

 2
89745C - BATTERY, TRANSMITTER
89745-50020

AXAH5#,AXAL5#..EUR,GCC,GEN,RUS;AXAA5#,MXAA5#..(G,M,V)..(EUR,GCC,GEN,RUS,SA)

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-42180

AXAH52..G..GEN;AXAH54..GCC,GEN;AXAH54..(M,X)..EUR;AXAH52,AXAL5#..(M,X)..(EUR,GEN)

 2
