AXAH52L-ANXMBW (2018)
Toyota Rav4 (Jpp)

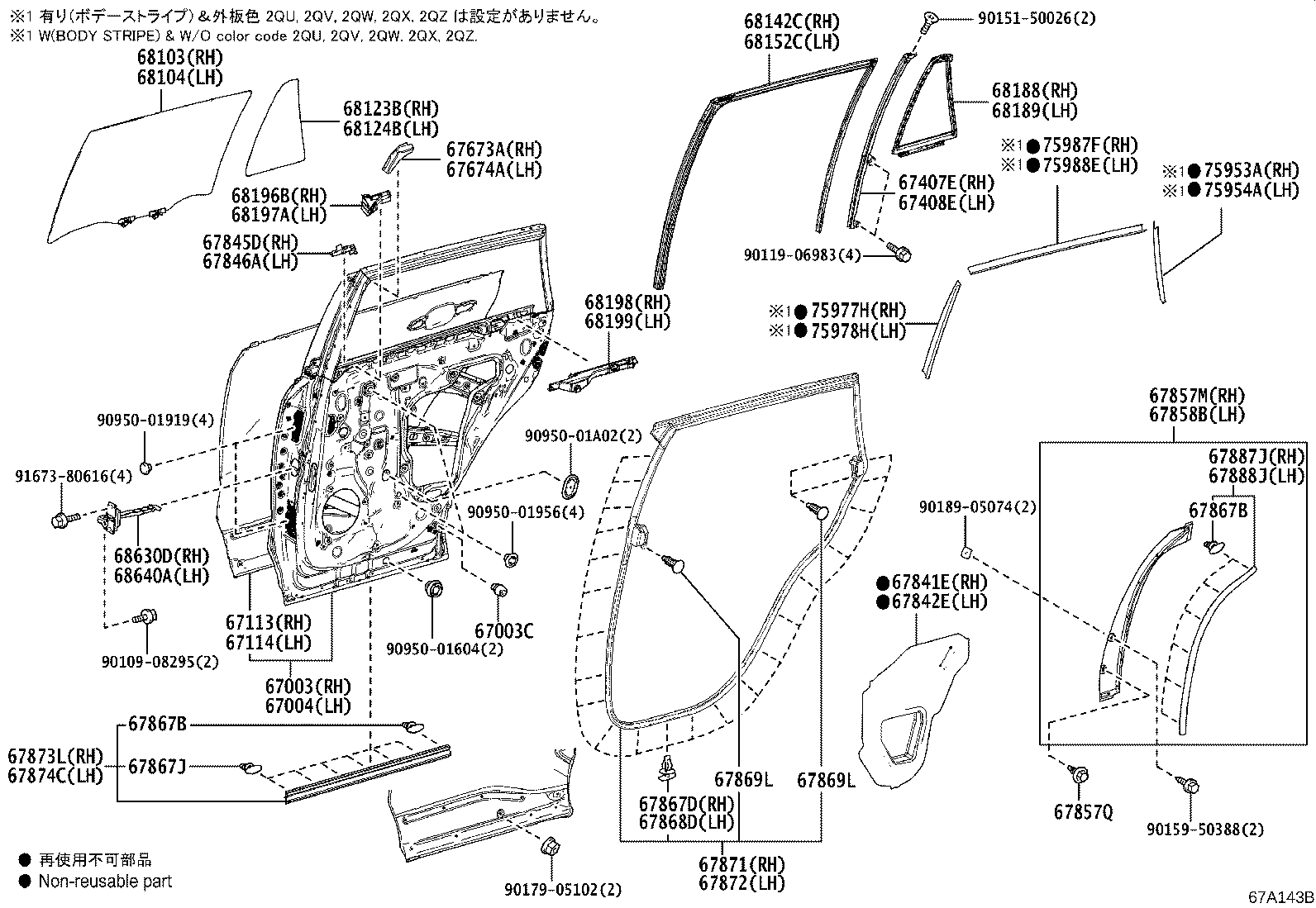

ILLUST NO. 1 OF 2(1811- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-42190 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09137 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-42190 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-42120 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-42120 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67845D - SEAL, REAR DOOR FRONT OUTSIDE, RH | ||||
| 67845-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 67846A - SEAL, REAR DOOR FRONT OUTSIDE, LH | ||||
| 67846-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 67857M - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-42100 |
AXAA52,AXAH5#,AXAL5#;AXAA54,MXAA5#..(G,M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 67857Q - CLIP, REAR DOOR PANEL PROTECTOR | ||||
| 90467-06165C3 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA BLACK |
2 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-42030 |
AXAA52,AXAH5#,AXAL5#;AXAA54,MXAA5#..(G,M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 53145-60030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
14 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 53145-60030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
14 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
22 | ||
| 67867J - CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR) | ||||
| 67867-12150 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
12 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
22 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-26050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
6 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-26050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
6 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-42140 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-42140 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67873L - WEATHERSTRIP, REAR DOOR, NO.5 RH | ||||
| 67873-42030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67874C - WEATHERSTRIP, REAR DOOR, NO.5 LH | ||||
| 67874-42030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67887J - WEATHERSTRIP, ACCESS PANEL, NO.2 RH | ||||
| 67887-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 67888J - WEATHERSTRIP, ACCESS PANEL, NO.2 LH | ||||
| 67888-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-42200 |
AXAH54..M..RUS;MXAA52..LHD..G..EUR;MXAA52..G..(ARL,GEN,SA);AXAH54..G..(ARL,EUR,GEN,RUS);AXAA5#,AXAH52,AXAL5#,MXAA54..(G,V)..(ARL,EUR,GEN,SA) |
1 | ||
| 68103-42190 |
MXAA54..G..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;MXAA54..(M,V,X)..(EUR,GCC);AXAA5#,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 68103-42200 |
AXAH54..M..ARL;MXAA54..RHD..M;MXAA52..M..(ARL,GEN);AXAH52,AXAL5#..X..EUR;MXAA52..6F..(M,X)..EUR;AXAA54,MXAA52..LHD..X..GEN;MXAA52..LHD..CVT..(M,X)..EUR;MXAA54..LHD..(M,X)..(EUR,GEN);AXAA52,AXAH54..(M,X)..(EUR,GEN);AXAA54,AXAH52,AXAL5#..M..(ARL,EUR,GEN) REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-42200 |
AXAH54..M..ARL;MXAA54..RHD..M;MXAA52..M..(ARL,GEN);AXAH52,AXAL5#..X..EUR;MXAA52..6F..(M,X)..EUR;AXAA54,MXAA52..LHD..X..GEN;MXAA52..LHD..CVT..(M,X)..EUR;MXAA54..LHD..(M,X)..(EUR,GEN);AXAA52,AXAH54..(M,X)..(EUR,GEN);AXAA54,AXAH52,AXAL5#..M..(ARL,EUR,GEN) REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68104-42190 |
MXAA54..G..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;MXAA54..(M,V,X)..(EUR,GCC);AXAA5#,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 68104-42200 |
AXAH54..M..RUS;MXAA52..LHD..G..EUR;MXAA52..G..(ARL,GEN,SA);AXAH54..G..(ARL,EUR,GEN,RUS);AXAA5#,AXAH52,AXAL5#,MXAA54..(G,V)..(ARL,EUR,GEN,SA) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-42200 |
AXAH54..M..ARL;MXAA54..RHD..M;MXAA52..M..(ARL,GEN);AXAH52,AXAL5#..X..EUR;MXAA52..6F..(M,X)..EUR;AXAA54,MXAA52..LHD..X..GEN;MXAA52..LHD..CVT..(M,X)..EUR;MXAA54..LHD..(M,X)..(EUR,GEN);AXAA52,AXAH54..(M,X)..(EUR,GEN);AXAA54,AXAH52,AXAL5#..M..(ARL,EUR,GEN) REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68123-42200 |
AXAH54..M..RUS;MXAA52..LHD..G..EUR;MXAA52..G..(ARL,GEN,SA);AXAH54..G..(ARL,EUR,GEN,RUS);AXAA5#,AXAH52,AXAL5#,MXAA54..(G,V)..(ARL,EUR,GEN,SA) |
1 | ||
| 68123-42190 |
MXAA54..G..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;MXAA54..(M,V,X)..(EUR,GCC);AXAA5#,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-42190 |
MXAA54..G..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;MXAA54..(M,V,X)..(EUR,GCC);AXAA5#,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 68124-42200 |
AXAH54..M..RUS;MXAA52..LHD..G..EUR;MXAA52..G..(ARL,GEN,SA);AXAH54..G..(ARL,EUR,GEN,RUS);AXAA5#,AXAH52,AXAL5#,MXAA54..(G,V)..(ARL,EUR,GEN,SA) |
1 | ||
| 68124-42200 |
AXAH54..M..ARL;MXAA54..RHD..M;MXAA52..M..(ARL,GEN);AXAH52,AXAL5#..X..EUR;MXAA52..6F..(M,X)..EUR;AXAA54,MXAA52..LHD..X..GEN;MXAA52..LHD..CVT..(M,X)..EUR;MXAA54..LHD..(M,X)..(EUR,GEN);AXAA52,AXAH54..(M,X)..(EUR,GEN);AXAA54,AXAH52,AXAL5#..M..(ARL,EUR,GEN) REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-42060 |
AXAA5#,AXAH5#,MXAA5# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-42060 |
AXAA5#,AXAH5#,MXAA5# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 68196B - SEAL, REAR DOOR BELT, FRONT RH | ||||
| 68196-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 68197A - SEAL, REAR DOOR BELT, FRONT LH | ||||
| 68197-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 68198 - SEAL, REAR DOOR BELT, REAR RH | ||||
| 68198-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 68199 - SEAL, REAR DOOR BELT, REAR LH | ||||
| 68199-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-42010 |
AXAH5#,AXAL5#..M..EUR BODY STRIPE-WITH |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-42010 |
AXAH5#,AXAL5#..M..EUR BODY STRIPE-WITH |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-42050 |
AXAH5#,AXAL5#..M..EUR BODY STRIPE-WITH |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-42050 |
AXAH5#,AXAL5#..M..EUR BODY STRIPE-WITH |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-42060 |
AXAH5#,AXAL5#..M..EUR BODY STRIPE-WITH |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-42060 |
AXAH5#,AXAL5#..M..EUR BODY STRIPE-WITH |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90159-50388 | ||||
| 90179-05102 | ||||
| 90189-05074 | ||||
| 90950-01604 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 91673-80616 | ||||

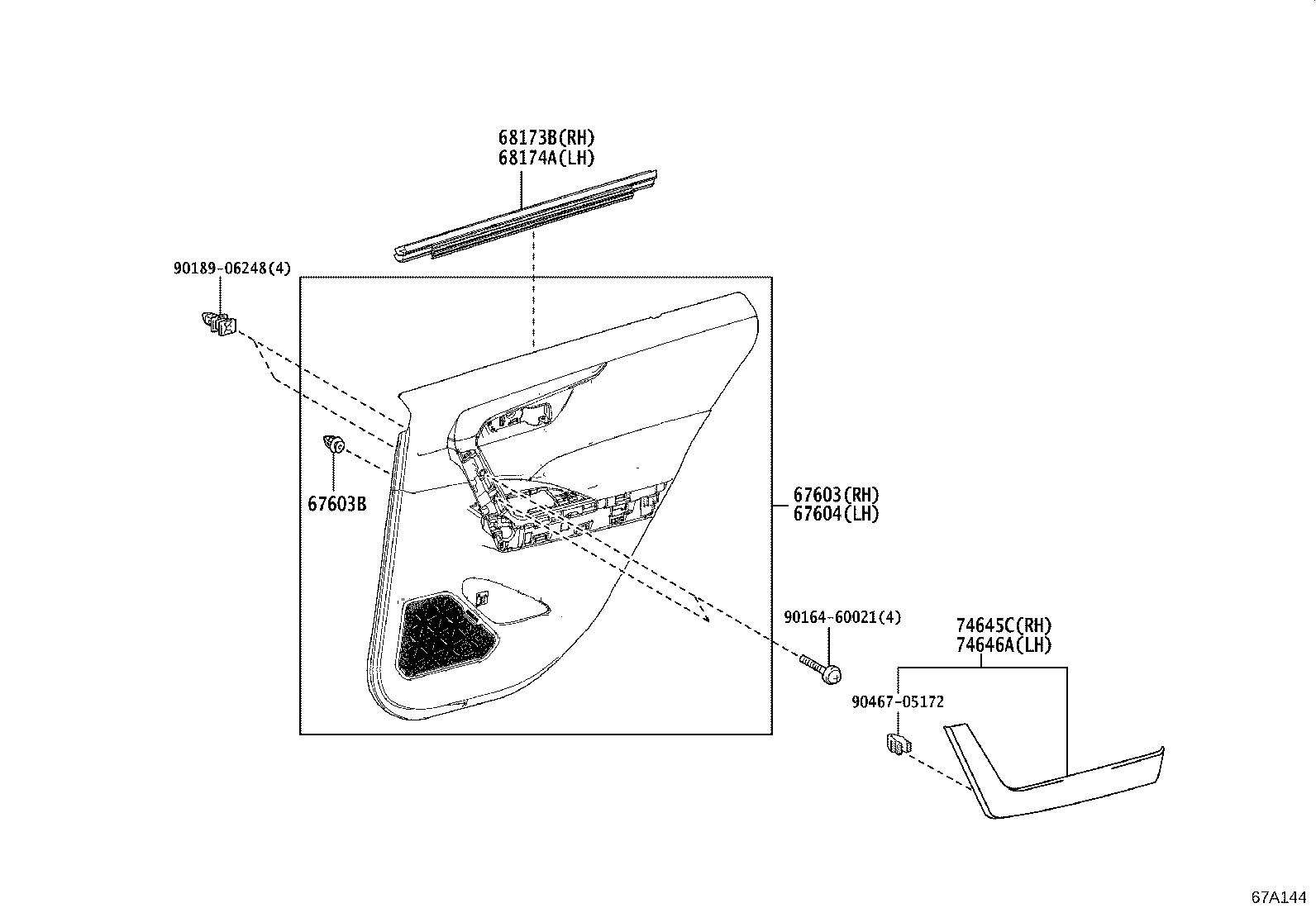

ILLUST NO. 2 OF 2(1811- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-42640C5 |
AXAH5#,AXAL5#..M..EUR BLACK/BLACK/LT.GRAY,TRIM20 |
1 | ||
| 67630-42630C8 |
AXAH54..X..EUR;AXAH52,MXAA52..LHD..X..EUR;AXAH54..(M,X)..(ARL,GCC,GEN,RUS);AXAA5#,AXAH52,AXAL5#,MXAA5#..(M,X)..(ARL,GCC,GEN,SA) GALLANT BEIGE/BLACK,TRIM4# |
1 | ||
| 67630-42640C8 |
AXAH5#,AXAL5#..M..EUR BLACK/BLACK/BLUE,TRIM20 |
1 | ||
| 67630-42630C9 |
MXAA52..M..ARL;AXAA54..RHD..X..GEN;MXAA52..LHD..CVT..X..GEN;MXAA5#..LHD..M..(GCC,GEN);AXAH5#,MXAA52..LHD..X..EUR;MXAA5#..RHD..(M,X)..(GEN,SA);AXAH54..M..(ARL,GCC,GEN,RUS);AXAA5#,AXAH52,AXAL5#..M..(ARL,GCC,GEN) LT.GRAY/BLACK,TRIM1# |
1 | ||
| 67630-42630C7 |
AXAH5#,AXAL5#,MXAA52..X..EUR;AXAH54..(M,X)..(ARL,GCC,GEN,RUS);AXAA5#,AXAH52,AXAL5#,MXAA5#..(M,V,X)..(ARL,GCC,GEN,SA) BLACK/BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-42630C7 |
AXAH5#,AXAL5#,MXAA52..X..EUR;AXAH54..(M,X)..(ARL,GCC,GEN,RUS);AXAA5#,AXAH52,AXAL5#,MXAA5#..(M,V,X)..(ARL,GCC,GEN,SA) BLACK/BLACK,TRIM2# |
1 | ||
| 67640-42630C8 |
AXAH54..X..EUR;AXAH52,MXAA52..LHD..X..EUR;AXAH54..(M,X)..(ARL,GCC,GEN,RUS);AXAA5#,AXAH52,AXAL5#,MXAA5#..(M,X)..(ARL,GCC,GEN,SA) GALLANT BEIGE/BLACK,TRIM4# |
1 | ||
| 67640-42640C8 |
AXAH5#,AXAL5#..M..EUR BLACK/BLACK/BLUE,TRIM20 |
1 | ||
| 67640-42630C9 |
MXAA52..M..ARL;AXAA54..RHD..X..GEN;MXAA52..LHD..CVT..X..GEN;MXAA5#..LHD..M..(GCC,GEN);AXAH5#,MXAA52..LHD..X..EUR;MXAA5#..RHD..(M,X)..(GEN,SA);AXAH54..M..(ARL,GCC,GEN,RUS);AXAA5#,AXAH52,AXAL5#..M..(ARL,GCC,GEN) LT.GRAY/BLACK,TRIM1# |
1 | ||
| 67640-42640C5 |
AXAH5#,AXAL5#..M..EUR BLACK/BLACK/LT.GRAY,TRIM20 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-42060 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 74645C - COVER, DOOR ASSIST GRIP, RH | ||||
| 74645-42080C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 74646A - COVER, DOOR ASSIST GRIP, LH | ||||
| 74646-42080C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90164-60021 | ||||
| 90189-06248 | ||||
| 90467-05172 | ||||
