AXAH52L-ANXMBW (2018)
Toyota Rav4 (Jpp)

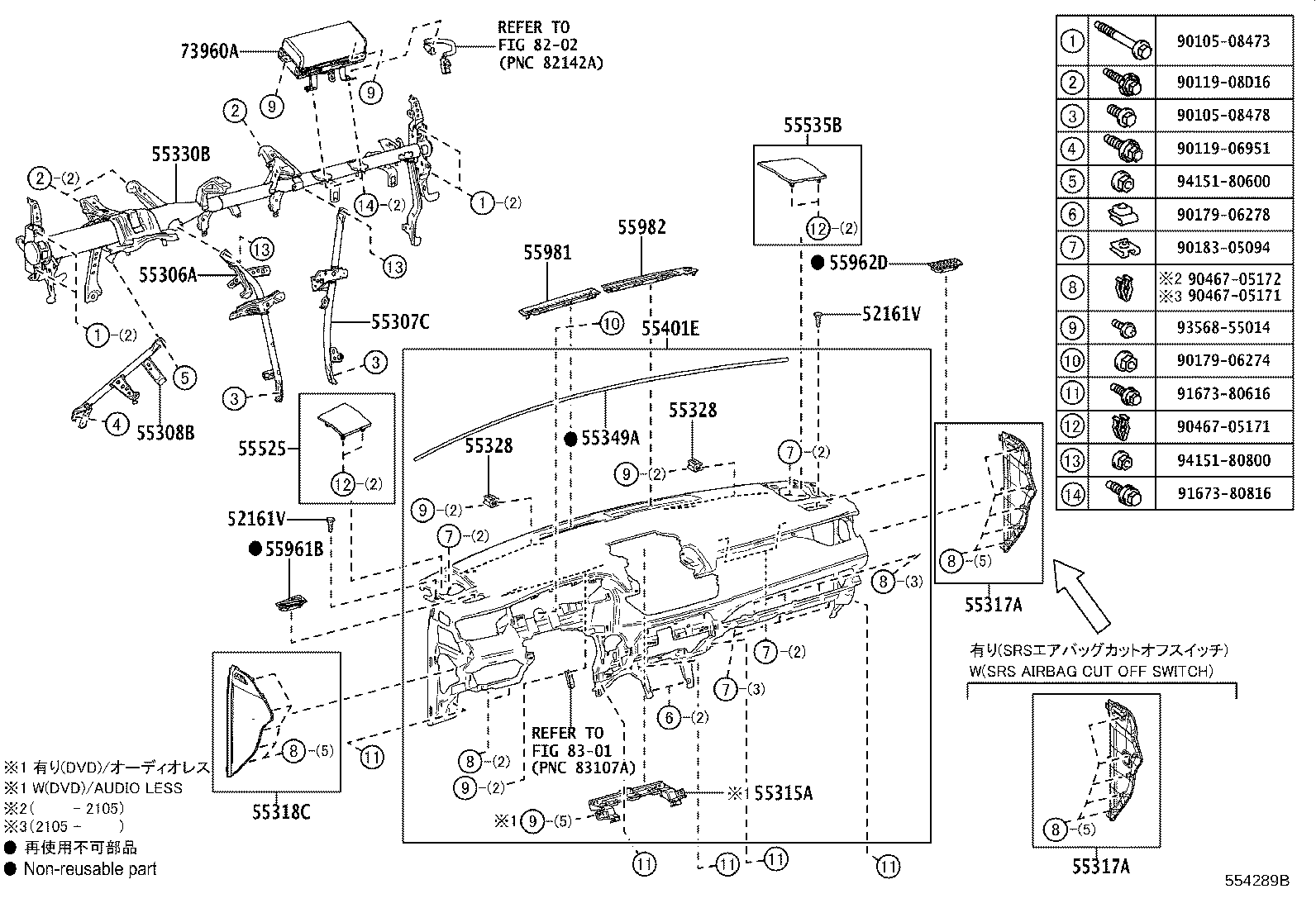

ILLUST NO. 1 OF 2(1811- )AXAA52,AXAH5#,AXAL5#..LHD ; (1811-)AXAA54,MXAA5#..LHD..EUR,GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-42150 |
AXAA52,AXAH5#,AXAL5#..LHD;AXAA54,MXAA5#..LHD..(EUR,GCC,GEN) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-42090 |
AXAA52,AXAH5#,AXAL5#..LHD;AXAA54,MXAA5#..LHD..(EUR,GCC,GEN) |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-42070 |
AXAA52,AXAH5#,AXAL5#..LHD;AXAA54,MXAA5#..LHD..(EUR,GCC,GEN) |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-42070 |
MXAA54..LHD..(EUR,GEN);AXAH5#,AXAL5#,MXAA52..EUR;AXAA5#,AXAH5#,MXAA52..LHD..GEN AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-42070C0 |
AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR FRANCE SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR GERMANY SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR ITALY SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITHOUT RSA,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR SPAIN,JIB SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR AZERBAIJAN,ARMENIA,GEORGIA SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR ISRAEL SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITH RSA,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR TURKEY SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-42070C0 |
AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR FRANCE SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR GERMANY SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR ITALY SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITHOUT RSA,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR SPAIN,JIB SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR AZERBAIJAN,ARMENIA,GEORGIA SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR ISRAEL SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITH RSA,BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-42080C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR TURKEY SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-42030C0 |
AXAL5#..LHD..G;MXAA54..RHD..(M,X);AXAH5#,MXAA52..LHD..EUR;MXAA52..LHD..CVT..X..GEN;MXAA52..(G,M)..(ARL,GEN);AXAA54,MXAA52..RHD..X..GEN;AXAA5#..(G,M)..(ARL,EUR,GCC,GEN);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAH5#,AXAL5#..(G,M)..(ARL,GCC,GEN,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-42320 |
AXAA52,AXAH5#,AXAL5#..LHD;AXAA54,MXAA5#..LHD..(ATM,CVT)..(EUR,GCC,GEN) |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-4201020 |
AXAH52..LHD..GEN;AXAH54..LHD..M..(GEN,RUS);AXAH52,AXAL5#..LHD..(G,X)..EUR;AXAH54..LHD..(G,X)..(EUR,GEN,RUS);AXAA5#,MXAA5#..LHD..(G,M,X)..(EUR,GEN) S BLACK/S BLACK/LT.GRAY,TRIM2# |
1 | ||
| 55401-42010C9 |
AXAH5#,AXAL5#..LHD..M..EUR S BLACK/S BLACK/BLUE,TRIM20 |
1 | ||
| 55401-4201020 |
AXAH5#,AXAL5#..LHD..M..EUR S BLACK/S BLACK/LT.GRAY,TRIM20 |
1 | ||
| 55401-4202020 |
AXAH5#,AXAL5#..LHD..M..EUR AUDIO-4SPEAKER(AUDIO LESS),S BLACK/S BLACK/LT.GRAY,TRIM20 |
1 | ||
| 55401-4202020 |
AXAH54..LHD..M..GEN;AXAH54..LHD..(G,X)..(EUR,GEN);AXAH52,AXAL5#..LHD..(G,X)..EUR;MXAA5#..LHD..(G,M,X)..(EUR,GEN);AXAA5#,AXAH52..LHD..(G,M,X)..GEN AUDIO-4SPEAKER(AUDIO LESS),S BLACK/S BLACK/LT.GRAY,TRIM2# |
1 | ||
| 55401-42020C9 |
AXAH5#,AXAL5#..LHD..M..EUR AUDIO-4SPEAKER(AUDIO LESS),S BLACK/S BLACK/BLUE,TRIM20 |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-42020C0 |
AXAH5#,MXAA5#..LHD..EUR ITALY SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42020C0 |
AXAH5#,MXAA5#..LHD..EUR FRANCE SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAH5#,MXAA5#..LHD..(G,M)..EUR FRANCE SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAH5#,MXAA5#..LHD..(G,M)..EUR ITALY SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA52..LHD..EUR;MXAA52..(G,M)..(ARL,SA);AXAH5#,AXAL5#..(G,M)..(ARL,GCC,RUS);AXAA5#,MXAA54..(G,M)..(ARL,EUR,GCC,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42020C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR GERMANY SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR GERMANY SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42020C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITH RSA&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR SPAIN,JIB SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42020C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR ISRAEL SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42020C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR SPAIN,JIB SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR OTHER WVTA COUNTRY, WITHOUT RSA&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR OTHER WVTA COUNTRY, WITHOUT RSA&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR SPAIN,JIB SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42020C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR TURKEY SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42020C0 |
AXAL5#..LHD..G;AXAA5#..(G,M)..GCC;AXAH54..LHD..X..EUR;AXAH52,MXAA52..LHD..EUR;AXAH54,MXAA54..LHD..(G,M)..(EUR,GCC) AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAH5#,MXAA5#..LHD..(G,M)..EUR ITALY SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR TURKEY SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAH5#,MXAA5#..LHD..(G,M)..EUR FRANCE SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR OTHER WVTA COUNTRY, WITH RSA&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42020C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITHOUT RSA&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42020C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR GERMANY SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR TURKEY SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR ISRAEL SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR ISRAEL SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR OTHER WVTA COUNTRY, WITH RSA&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-42020C0 |
AXAH5#,MXAA5#..LHD..EUR ISRAEL SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAH5#,MXAA5#..LHD..EUR ITALY SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAH5#,MXAA5#..LHD..EUR ITALY SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAH5#,MXAA5#..LHD..(G,M)..EUR FRANCE SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAH5#,MXAA5#..LHD..(G,M)..EUR ITALY SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAH5#,MXAA5#..LHD..(G,M)..EUR ITALY SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..G..EUR;MXAA52..6F..EUR;AXAH5#..LHD..X..EUR;MXAA52..LHD..CVT..EUR;AXAL5#,MXAA52..(G,M)..(ARL,SA);AXAA5#,AXAH5#,MXAA54..(G,M)..(ARL,EUR,GCC,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAH5#,MXAA5#..LHD..(G,M)..EUR FRANCE SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAH5#,MXAA5#..LHD..EUR FRANCE SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR GERMANY SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAH5#,MXAA5#..LHD..EUR FRANCE SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR GERMANY SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42020C0 |
AXAL5#..G..EUR;MXAA52..6F..EUR;AXAA5#..(G,M)..GCC;AXAH5#..LHD..X..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,MXAA54..(G,M)..(EUR,GCC) AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR OTHER WVTA COUNTRY, WITHOUT RSA&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR TURKEY SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR OTHER WVTA COUNTRY, WITHOUT RSA&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR ISRAEL SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR SPAIN,JIB SPEC&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR TURKEY SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR SPAIN,JIB SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR OTHER WVTA COUNTRY, WITH RSA&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR ISRAEL SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR OTHER WVTA COUNTRY, WITH RSA&AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42030C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR GERMANY SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITHOUT RSA,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITHOUT RSA&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR SPAIN,JIB SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR TURKEY SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITH RSA,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR SPAIN,JIB SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR OTHER WVTA COUNTRY, WITH RSA&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR ISRAEL SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR ITALY SPEC&AUDIO-6SPEAKER 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR GERMANY SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR TURKEY SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR ITALY SPEC&AUDIO-6SPEAKER 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR FRANCE SPEC&AUDIO-6SPEAKER 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..EUR ISRAEL SPEC&AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-42040C0 |
AXAL5#..LHD..G;AXAH5#,MXAA5#..LHD..(G,M)..EUR FRANCE SPEC&AUDIO-6SPEAKER 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-42010C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 55962D - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-42010C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-42030C0 |
AXAL5#..LHD..G;MXAA54..EUR,RUS;AXAH54..(G,M)..GCC;MXAA52..X..(EUR,RUS);AXAA5#,MXAA52..LHD..(G,M);AXAH5#..LHD..(EUR,GEN,RUS);MXAA54..LHD..(G,M)..(GCC,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-42030C0 |
AXAL5#..LHD..G;MXAA54..EUR,RUS;AXAH54..(G,M)..GCC;MXAA52..X..(EUR,RUS);AXAA5#,MXAA52..LHD..(G,M);AXAH5#..LHD..(EUR,GEN,RUS);MXAA54..LHD..(G,M)..(GCC,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-42110 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90119-08D16 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
