AXAA54R-ANZXB (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )

Click highlighted areas on diagram

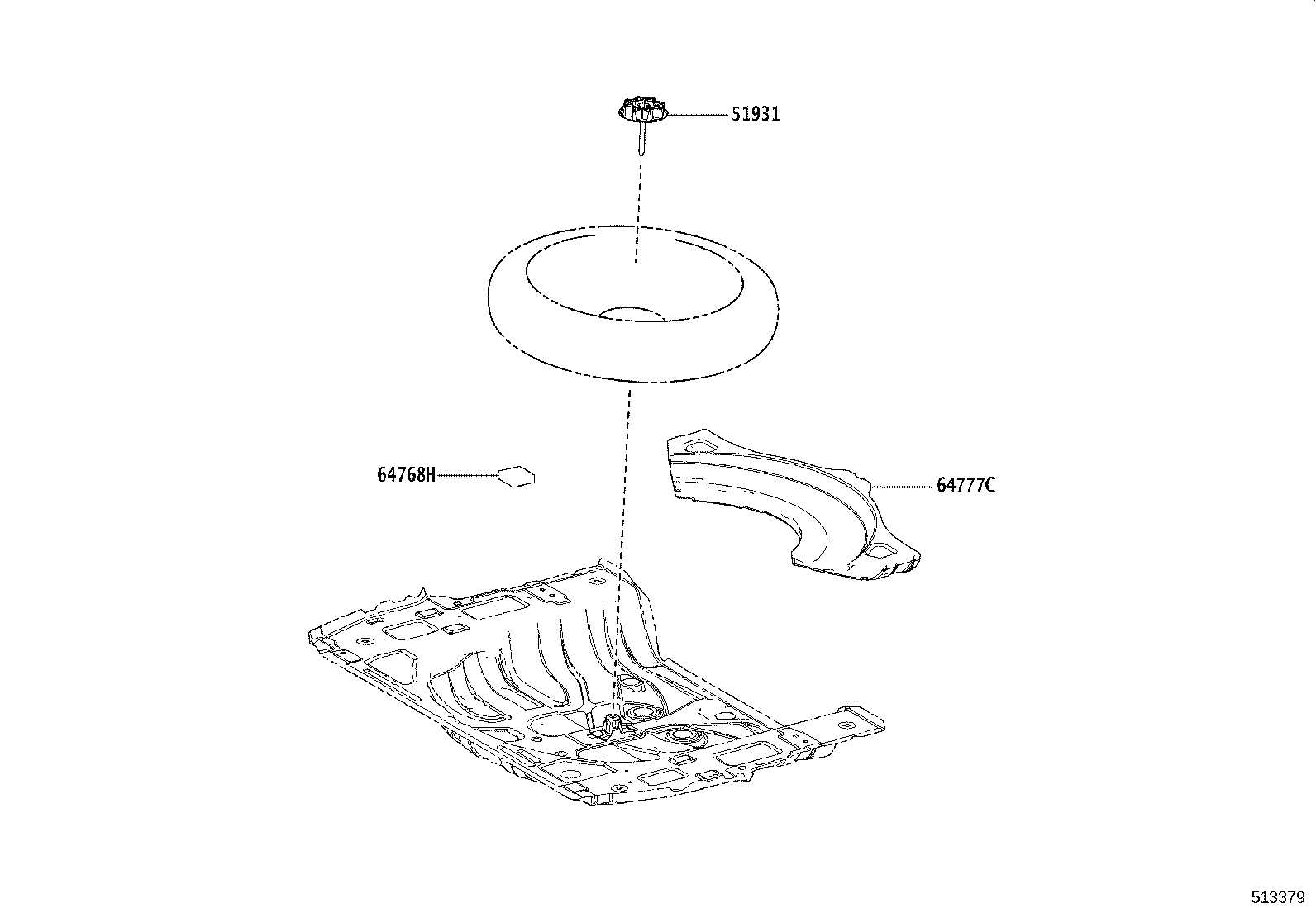

TEMPORARY TIRE

diagram 51931 64768H 64777C
Part # Description Qty Price
51931 - CARRIER, SPARE WHEEL, NO.1
51931-42040

MXAA54..M,V,X;MXAA54..CVT..G;MXAA52..6F..(M,X);MXAA5#..6F..G..EUR;AXAA5#,AXAH5#,MXAA52..(ATM,CVT)..(ARL,EUR,GCC,GEN,SA)

 1
51931-33060

MXAA52..M..ARL;MXAA52..6F..(G,M)..EUR;MXAA52..G..(ARL,GEN,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,MXAA54..M..(ARL,EUR,GCC);AXAA5#,MXAA54..(G,V)..(ARL,EUR,GCC,GEN,SA)

SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL

 1
64768H - STOPPER, JACK COVER
64768-42020

MXAA52..M..ARL;MXAA52..6F..(G,M)..EUR;MXAA52..G..(ARL,GEN,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,MXAA54..M..(ARL,EUR,GCC);AXAA5#,MXAA54..(G,V)..(ARL,EUR,GCC,GEN,SA)

SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL

 1
64768-42020

MXAA52..6F..EUR;MXAA52..ARL,GEN,SA;MXAA52..LHD..CVT..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..ARL,EUR,GCC,GEN,SA

SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL

 1
64777C - CUSHION, SPARE WHEEL
64777-42070

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
64777-42080

MXAA52..6F..EUR;MXAA52..ARL,GEN,SA;MXAA52..LHD..CVT..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..ARL,EUR,GCC,GEN,SA

SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL

 1
64777-42080

MXAA52..M..ARL;MXAA52..6F..(G,M)..EUR;MXAA52..G..(ARL,GEN,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,MXAA54..M..(ARL,EUR,GCC);AXAA5#,MXAA54..(G,V)..(ARL,EUR,GCC,GEN,SA)

SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL

 1

(1811- )

Click highlighted areas on diagram

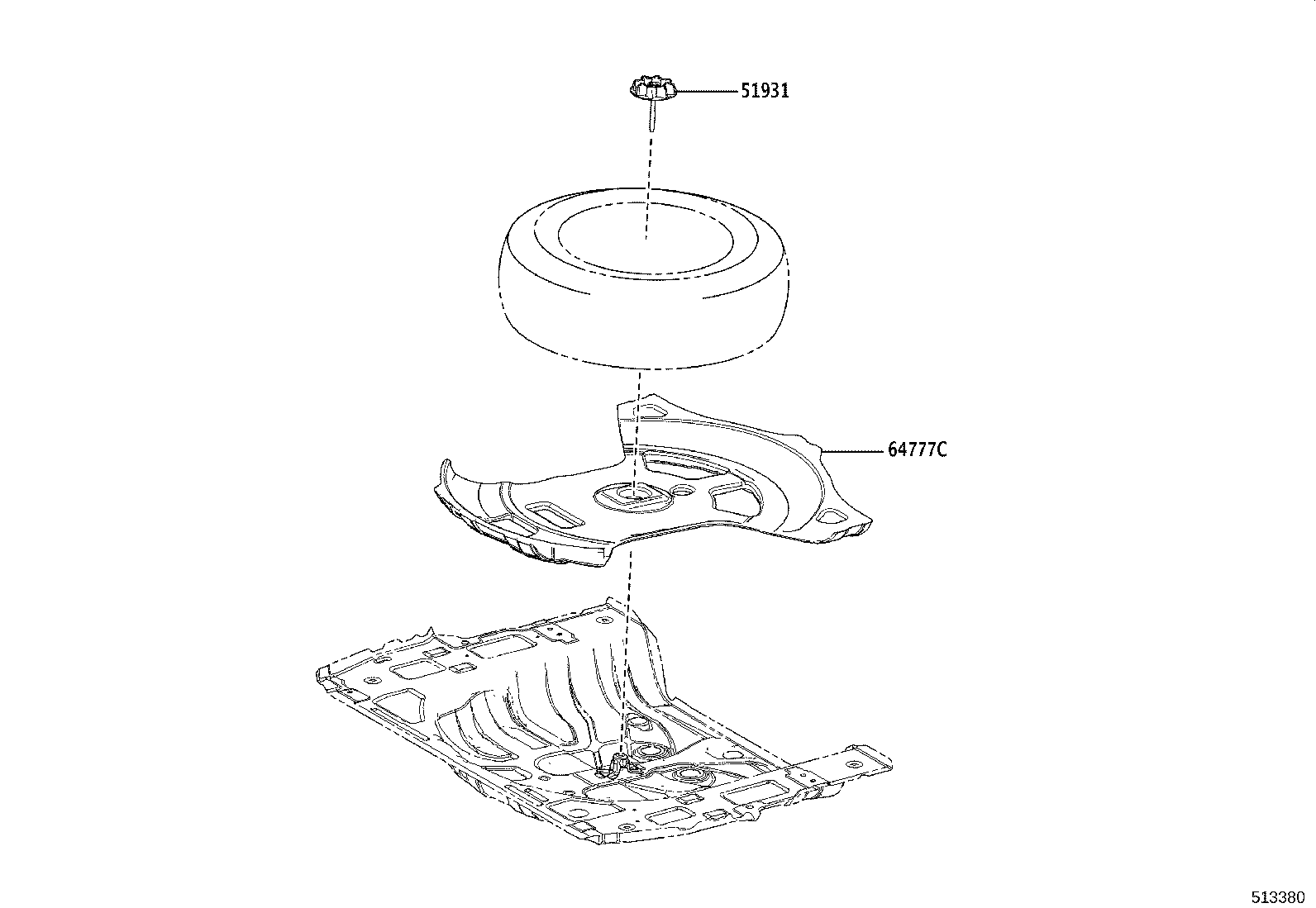

GROUND TIRE

diagram 51931 64777C
Part # Description Qty Price
51931 - CARRIER, SPARE WHEEL, NO.1
51931-42040

MXAA54..M,V,X;MXAA54..CVT..G;MXAA52..6F..(M,X);MXAA5#..6F..G..EUR;AXAA5#,AXAH5#,MXAA52..(ATM,CVT)..(ARL,EUR,GCC,GEN,SA)

 1
51931-33060

MXAA52..M..ARL;MXAA52..6F..(G,M)..EUR;MXAA52..G..(ARL,GEN,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,MXAA54..M..(ARL,EUR,GCC);AXAA5#,MXAA54..(G,V)..(ARL,EUR,GCC,GEN,SA)

SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL

 1
64777C - CUSHION, SPARE WHEEL
64777-42070

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
64777-42080

MXAA52..6F..EUR;MXAA52..ARL,GEN,SA;MXAA52..LHD..CVT..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..ARL,EUR,GCC,GEN,SA

SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL

 1
64777-42080

MXAA52..M..ARL;MXAA52..6F..(G,M)..EUR;MXAA52..G..(ARL,GEN,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,MXAA54..M..(ARL,EUR,GCC);AXAA5#,MXAA54..(G,V)..(ARL,EUR,GCC,GEN,SA)

SPARE TIRE-T165/90D18(REINFORCED TEMPORARY),STEEL

 1
