AXAA54R-ANZXB (2019)
Toyota Rav4 (Jpp)
ILLUST NO. 1 OF 2(1811- )AXAA54,AXAH54,AXAL54,MXAA54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
AXAA54,AXAH54,AXAL54,MXAA54 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
AXAA54,AXAH54,AXAL54,MXAA54 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
5 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12406 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12406 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-78010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,GEN,RUS,SA |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-42060 |
AXAA54,AXAH54,AXAL54,MXAA54 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-42060 |
AXAA54,AXAH54,AXAL54,MXAA54 |
1 | ||

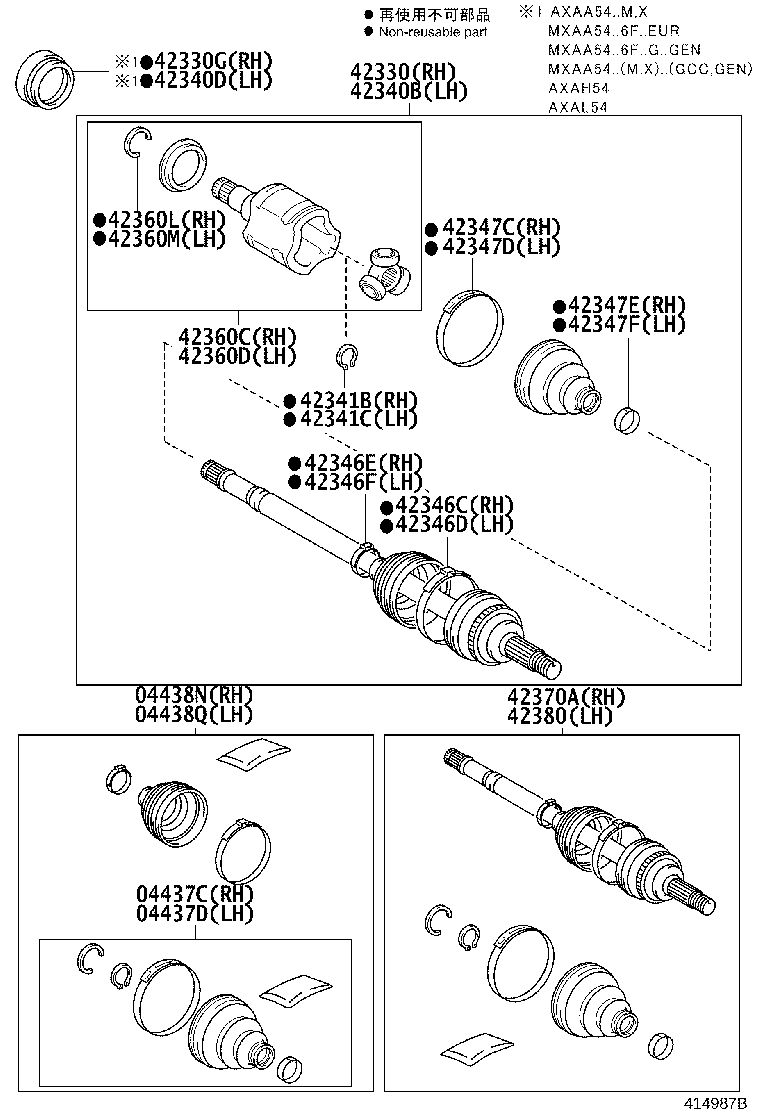

ILLUST NO. 2 OF 2(1811- )AXAA54,AXAH54,AXAL54,MXAA54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04439-12030 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 04439-48050 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04439-48050 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 04439-12030 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-12040 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 04429-48071 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-12040 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 04429-48071 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-42030 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42330-42070 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42330G - OIL SEAL, REAR DRIVE SHAFT, RH | ||||
| 90311-37004 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-42050 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42340-42030 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42340D - OIL SEAL, REAR DRIVE SHAFT, LH | ||||
| 90311-37004 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 43425-12150 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 43425-74010 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 43425-12150 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 43425-74010 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-12280 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) ID=68.90 |
1 | ||
| 42345-58120 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) ID=74.1 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-12280 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) ID=68.90 |
1 | ||
| 42345-58120 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) ID=74.1 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-74040 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42345-52270 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-52270 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42345-74040 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-12290 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) ID=26.30 |
1 | ||
| 42345-48200 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) ID=71.4 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-12290 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) ID=26.30 |
1 | ||
| 42345-48200 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) ID=71.4 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-42070 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42345-48210 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-42070 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42345-48210 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-42020 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42360-42030 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-42020 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42360-42030 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 90520-19018 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 90521-26004 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 90521-26004 |
AXAH54,AXAL54;MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 90520-19018 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-49355 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42370-49365 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-49355 |
AXAA54..M,X;MXAA54..6F..EUR;MXAA54..6F..G..GEN;MXAA54..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 42370-49385 |
MXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V) |
1 | ||
