AXAA54R-ANZXB (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )AXAA5#..RHD

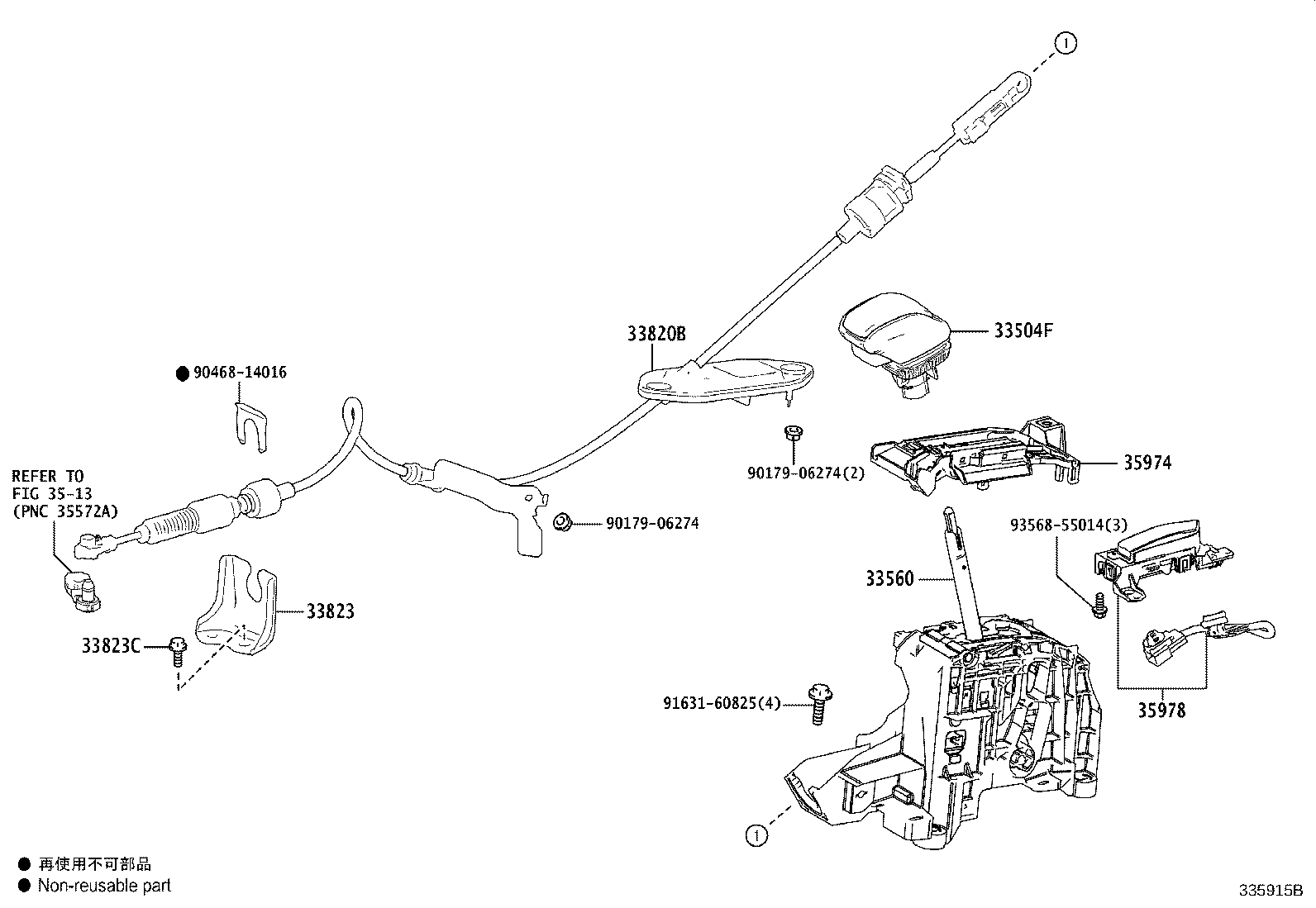

Click highlighted areas on diagram

diagram 33504F 33560 33820B 33823 33823C 3513 35974 35978 9017906274 9017906274 9046814016 9163160825 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-40050C0

AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;AXAH52,MXAA54..CVT..G..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(ATM,CVT)..G;AXAH52,MXAA54..CVT..(G,M)..(ARL,EUR,RUS);AXAA54,AXAH54,MXAA52..(ATM,CVT)..M..(ARL,EUR,RUS)

BLACK,TRIM1#,2#,4#

 1
33504-42130C0

MXAA5#..CVT..X..RUS;AXAH5#..M..(GCC,GEN);MXAA52..CVT..(M,X)..GEN;AXAA54,MXAA54..RHD..(ATM,CVT)..(M,X)..GEN;AXAA5#,MXAA54..LHD..(ATM,CVT)..M..(GCC,GEN)

BLACK,TRIM1#,2#,4#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-10020

AXAA52,AXAH5#,AXAL5#..RHD;AXAA54,MXAA5#..RHD..(ATM,CVT)..(G,M,V)

 1
33560-10010

AXAA54,MXAA5#..RHD..(ATM,CVT)..X

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-42460

AXAA5#..ARL,EUR,GCC,GEN,SA

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-33070

AXAA5#

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ATM,CVT

 2
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-42050

AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(ATM,CVT)

 1
35978 - INDICATOR, SHIFT POSITION
35978-42020

AXAA5#..RHD

 1
Common parts
90179-06274
90468-14016
91631-60825
93568-55014
Linked diagrams
3513
