AXAA54R-ANZVBQ (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )

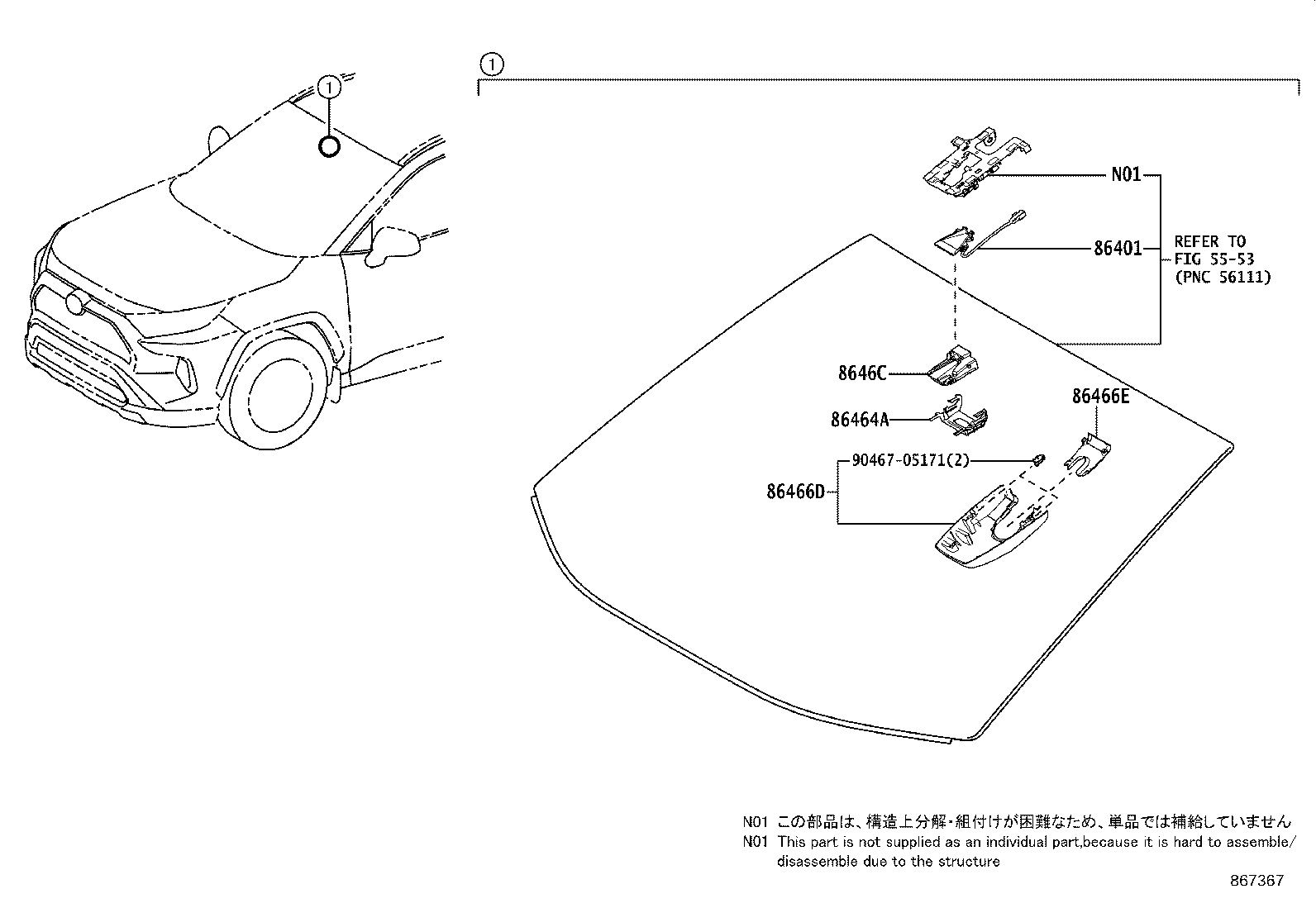

Click highlighted areas on diagram

diagram 5553 86401 86464A 86466D 86466E 8646C 9046705171
Part # Description Qty Price
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-42040

AXAA54..V..ARL;AXAH5#,MXAA52..ARL

AUSTRALIA SPEC

 1
86401-42040

AXAA54,AXAH54,MXAA52..(ATM,CVT)..ARL

NEW ZEALAND SPEC

 1
86401-42041

AXAA54..V..ARL;AXAH5#,MXAA52..ARL

AUSTRALIA SPEC

 1
86401-42041

AXAA54,AXAH54,MXAA52..(ATM,CVT)..ARL

NEW ZEALAND SPEC

 1
86464A - LATCH, FORWARD RECOGNITION
86464-26010

AXAA54,AXAH54,MXAA52..(ATM,CVT)..ARL

NEW ZEALAND SPEC

 1
86464-26010

AXAA54..V..ARL;AXAH5#,MXAA52..ARL

AUSTRALIA SPEC

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-42060

AXAA54..V..ARL;AXAH5#,MXAA52..ARL

AUSTRALIA SPEC

 1
86466-42060

AXAA54,AXAH54,MXAA52..(ATM,CVT)..ARL

NEW ZEALAND SPEC

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-42070

AXAA54..V..ARL;AXAH5#,MXAA52..ARL

AUSTRALIA SPEC

 1
86466-42070

AXAA54,AXAH54,MXAA52..(ATM,CVT)..ARL

NEW ZEALAND SPEC

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-42031

AXAA54..V..ARL;AXAH5#,MXAA52..ARL

AUSTRALIA SPEC

 1
8646C-42031

AXAA54,AXAH5#,MXAA52..(ATM,CVT)..ARL

NEW ZEALAND SPEC

 1
8646C-42030

AXAA54..V..ARL;AXAH5#,MXAA52..ARL

AUSTRALIA SPEC

 1
8646C-42030

AXAA54,AXAH54,MXAA52..(ATM,CVT)..ARL

NEW ZEALAND SPEC

 1
Common parts
90467-05171
Linked diagrams
5553
