AXAA54R-ANZVBQ (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )

Click highlighted areas on diagram

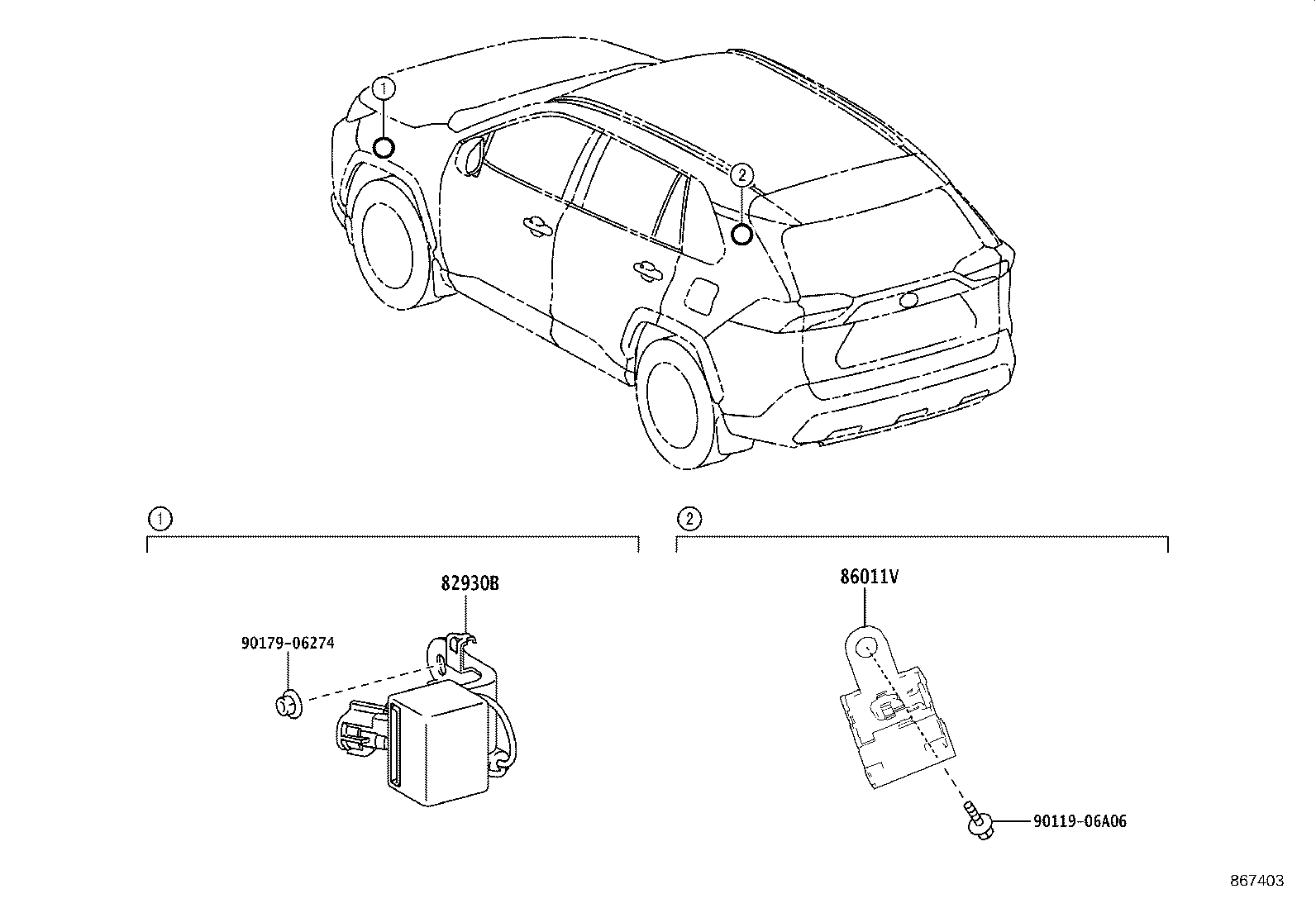

CONDENSER

diagram 82930B 86011V 9011906A06 9017906274
Part # Description Qty Price
82930B - CONDENSER ASSY, WIRING HARNESS
82930-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
86011V - CONDENSER, RADIO SETTING
90980-04189

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
Common parts
90119-06A06
90179-06274

(1811- )

Click highlighted areas on diagram

diagram 8603 8603 8603 8603 86145 86190C 86190C 86280 86285 86286 9011906A06 9015350015 9015350015 9015350015 9017906274 F1334 G92C0A
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-12040

MXAA52..X..(ARL,EUR);MXAA52..6F..(G,M)..EUR;MXAA52..CVT..(G,M)..(ARL,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,AXAH5#,MXAA54..ARL,EUR,GCC,SA

 1
86190-42030

MXAA52..X..(ARL,EUR);MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..ARL,EUR,GCC,SA

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-12040

MXAA52..X..(ARL,EUR);MXAA52..6F..(G,M)..EUR;MXAA52..CVT..(G,M)..(ARL,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,AXAH5#,MXAA54..ARL,EUR,GCC,SA

 1
86190-42030

MXAA52..X..(ARL,EUR);MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..ARL,EUR,GCC,SA

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-42060

AXAA54,AXAH5#,AXAL5#,MXAA52..(G,V)..ARL

AUDIO-JBL 8INCH T2 DAB, AUSTRALIA

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-42040

AXAA54,AXAH5#,AXAL5#,MXAA52..(G,V)..ARL

AUDIO-JBL 8INCH T2 DAB, AUSTRALIA

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-42040

AXAA54,AXAH5#,AXAL5#,MXAA52..(G,V)..ARL

AUDIO-JBL 8INCH T2 DAB, AUSTRALIA

 1
F1334 - BRACKET, CONVERTER CONTROL, NO.1
F1334-42020

AXAA54,MXAA52..(G,V)..ARL

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN&AUDIO-JBL 8INCH T2 DAB, AUSTRALIA

 1
G92C0A - CONVERTER ASSY, ECO-RUN VEHICLE
G92C0-30020

AXAA54,MXAA52..(G,V)..ARL

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN&AUDIO-JBL 8INCH T2 DAB, AUSTRALIA

 1
Common parts
90119-06A06
90153-50015
90179-06274
Linked diagrams
8603
