AXAA54R-ANZVBQ (2019)
Toyota Rav4 (Jpp)
ILLUST NO. 3 OF 3(1811- )RHD
DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-42570 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(ATM,CVT) |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-42250 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
3 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-42110 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-10217 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
3 | ||
| 55241C - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-10217 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
3 | ||
| 55242C - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-42010 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| Linked diagrams | ||||
| 5752 | ||||

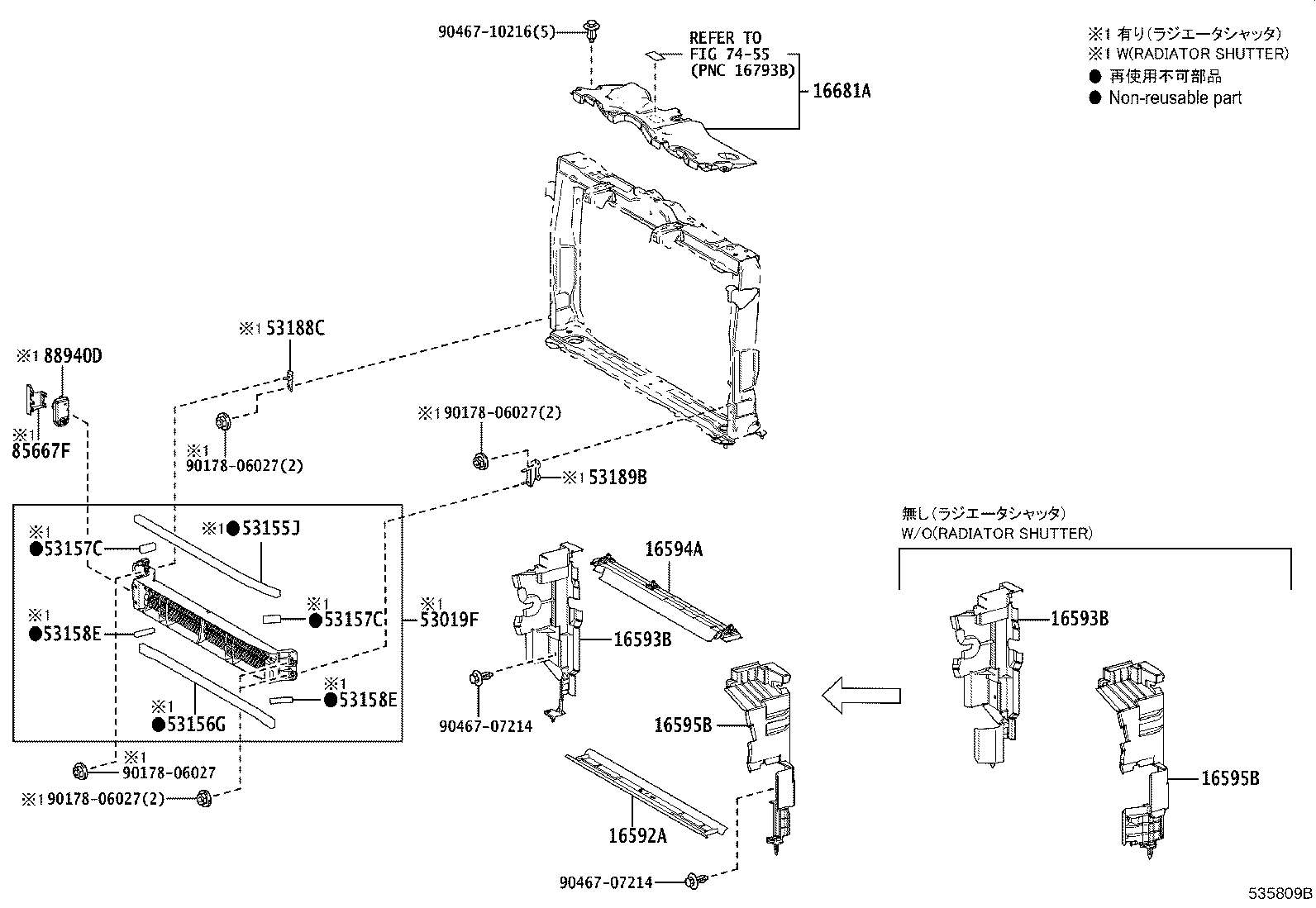

ILLUST NO. 1 OF 3(1811- )AXAA5#,MXAA5#
AIR GUIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-25010 |
A25AFKS,M20AFKS..AXAA5#,MXAA5# |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-25120 |
M20AFKS..MXAA52..6F..EUR;A25AFXS..AXAL52..(G,X)..ARL;M20AFKS..MXAA52..LHD..CVT..EUR;M20AFKS..MXAA52..ARL,GEN,RUS,SA;A25#,M20AFKS..AXAA5#,AXAH52,MXAA54;A25AFXS..AXAH54,AXAL5#..EUR,GCC,GEN,RUS |
1 | ||
| 16593-25110 |
A25AFKS,M20AFKS..AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-25120 |
M20AFKS..MXAA52..6F..EUR;A25AFXS..AXAL52..(G,X)..ARL;M20AFKS..MXAA52..LHD..CVT..EUR;M20AFKS..MXAA52..ARL,GEN,RUS,SA;A25#,M20AFKS..AXAA5#,AXAH52,MXAA54;A25AFXS..AXAH54,AXAL5#..EUR,GCC,GEN,RUS |
1 | ||
| 16593-25110 |
A25AFKS,M20AFKS..AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-25020 |
A25#,M20AFKS..AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-25110 |
M20AFKS..MXAA52..6F..EUR;A25AFXS..AXAL52..(G,X)..ARL;M20AFKS..MXAA52..LHD..CVT..EUR;M20AFKS..MXAA52..ARL,GEN,RUS,SA;A25#,M20AFKS..AXAA5#,AXAH52,MXAA54;A25AFXS..AXAH54,AXAL5#..EUR,GCC,GEN,RUS |
1 | ||
| 16595-25120 |
A25AFKS,M20AFKS..AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-25110 |
M20AFKS..MXAA52..6F..EUR;A25AFXS..AXAL52..(G,X)..ARL;M20AFKS..MXAA52..LHD..CVT..EUR;M20AFKS..MXAA52..ARL,GEN,RUS,SA;A25#,M20AFKS..AXAA5#,AXAH52,MXAA54;A25AFXS..AXAH54,AXAL5#..EUR,GCC,GEN,RUS |
1 | ||
| 16595-25120 |
A25AFKS,M20AFKS..AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 16681A - PLATE, RADIATOR UPPER AIR GUIDE | ||||
| 16681-25010 |
A25AFKS,M20AFKS..AXAA5#,MXAA5# |
1 | ||
| 53019F - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-42020 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 53155J - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-42060 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 53156G - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-42050 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-42020 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
2 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-42020 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
2 | ||
| 53158E - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-42010 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
2 | ||
| 53158E - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-42010 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
2 | ||
| 53188C - BRACKET, RADIATOR SHUTTER SUPPORT, RH | ||||
| 53188-42020 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 53189B - BRACKET, RADIATOR SHUTTER SUPPORT, LH | ||||
| 53189-42010 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 85667F - COVER, MOTOR | ||||
| 85667-42010 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 88940D - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-12030 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| Common parts | ||||
| 90178-06027 | ||||
| 90467-07214 | ||||
| 90467-10216 | ||||
| Linked diagrams | ||||
| 7455 | ||||
