AXAA54R-ANZVBQ (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

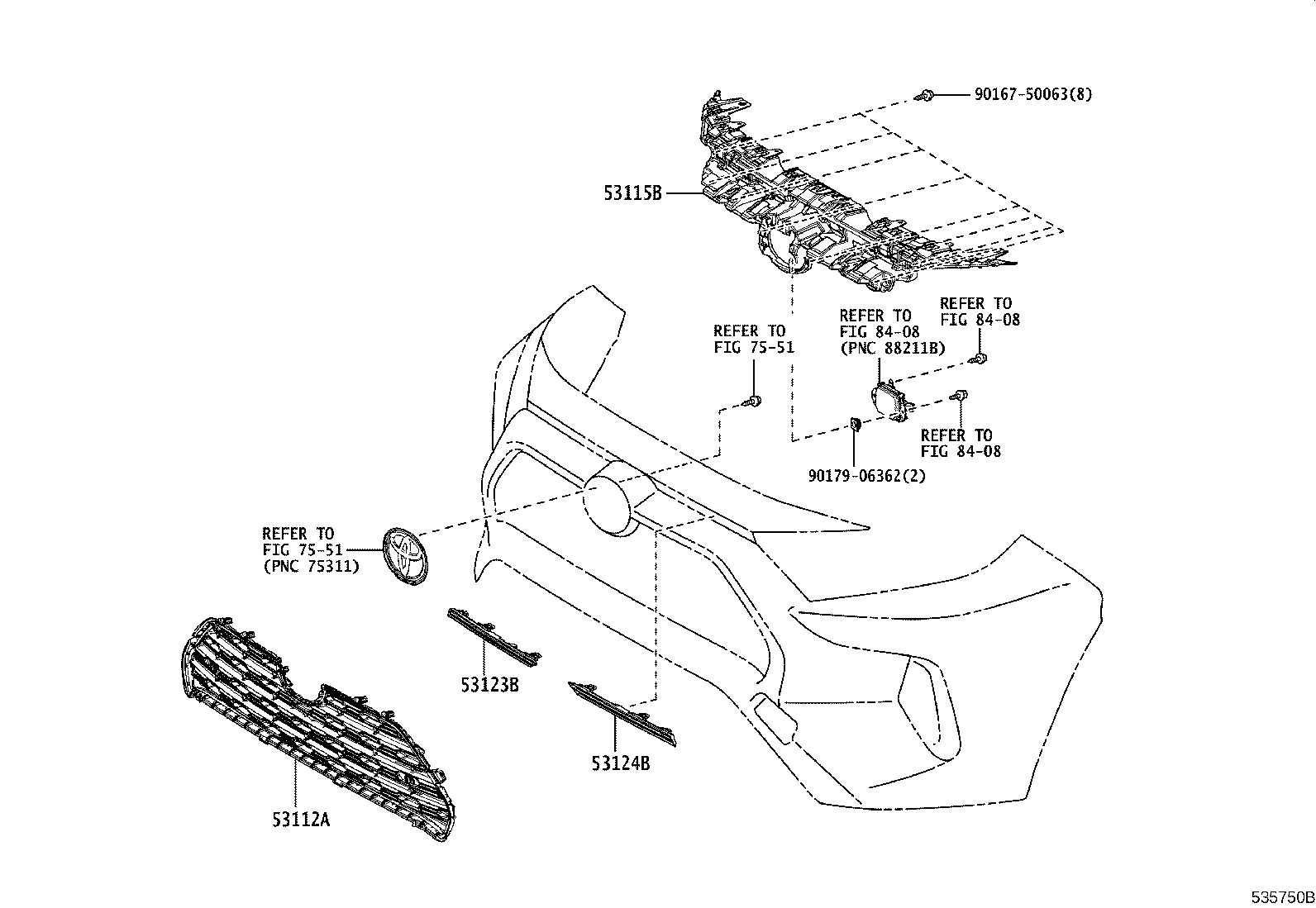

(1811- )G,M,X

Click highlighted areas on diagram

diagram 53112A 53115B 53123B 53124B 7551 7551 8408 8408 8408 9016750063 9017906362
Part # Description Qty Price
53112A - GRILLE, RADIATOR, LOWER
53112-42150

AXAA54,AXAH5#,MXAA52..M..ARL

 1
53112-42240

AXAA54,MXAA54..V

 1
53112-42150

AXAA54,AXAH5#,AXAL5#,MXAA52..X..ARL

 1
53115B - BRACKET, RADIATOR GRILLE
53115-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#..G,M,X

 1
53115-42020

AXAA54,MXAA54..V

 1
53123B - MOULDING, RADIATOR GRILLE SIDE, RH
53123-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#..G,M,X

 1
53124B - MOULDING, RADIATOR GRILLE SIDE, LH
53124-42060

AXAA5#,AXAH5#,AXAL5#,MXAA5#..G,M,X

 1
Common parts
90167-50063
90179-06362
Linked diagrams
7551
8408

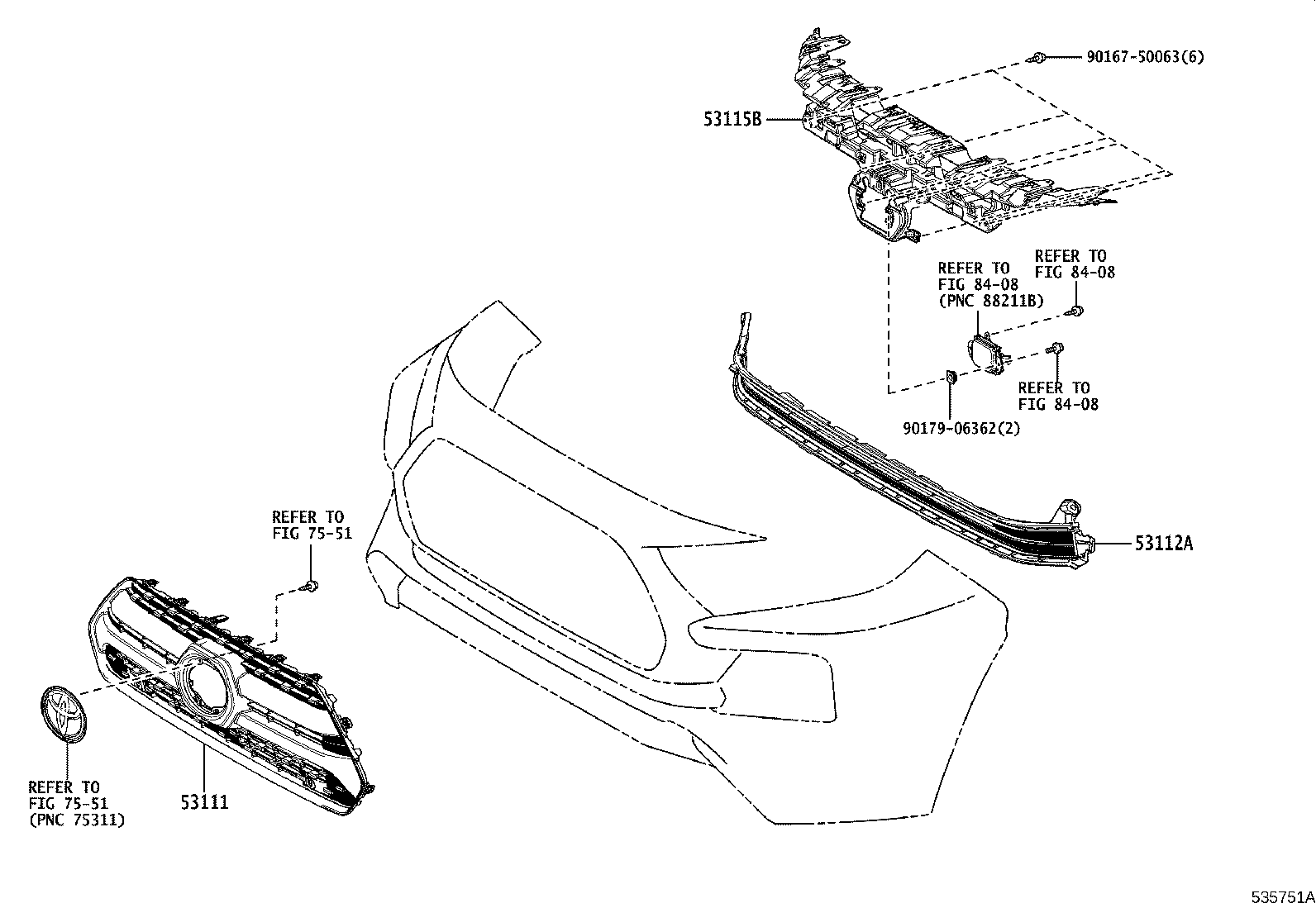

(1811- )V

Click highlighted areas on diagram

diagram 53111 53112A 53115B 7551 7551 8408 8408 8408 9016750063 9017906362
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-42260

AXAA54..V..ARL

NEW ZEALAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
53111-42250

AXAA54..V..ARL

 1
53111-42230

AXAA54..V..ARL

NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

 1
53111-42240

AXAA54..V..ARL

NO PAINT REQ.,AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
53111-42230

AXAA54..V..ARL

NO PAINT REQ.,NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

 1
53111-42260

AXAA54..V..ARL

AUSTRALIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
53111-42230

AXAA54..V..ARL

NO PAINT REQ.,AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

 1
53111-42240

AXAA54..V..ARL

NO PAINT REQ.,NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
53112A - GRILLE, RADIATOR, LOWER
53112-42150

AXAA54,AXAH5#,MXAA52..M..ARL

 1
53112-42240

AXAA54,MXAA54..V

 1
53112-42150

AXAA54,AXAH5#,AXAL5#,MXAA52..X..ARL

 1
53115B - BRACKET, RADIATOR GRILLE
53115-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#..G,M,X

 1
53115-42020

AXAA54,MXAA54..V

 1
Common parts
90167-50063
90179-06362
Linked diagrams
7551
8408
